Service Specifications
Service Specifications
Rear Axle Differential:

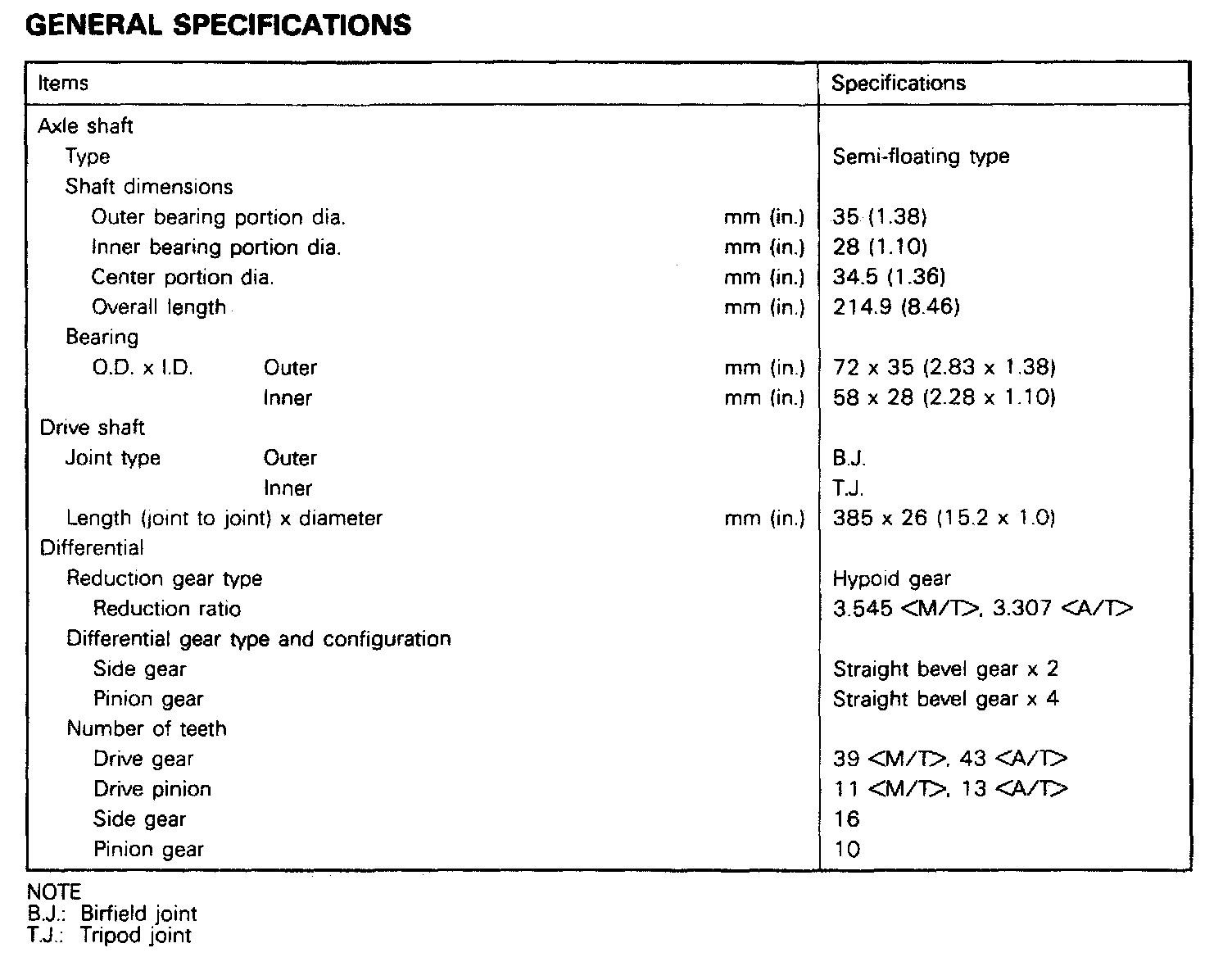

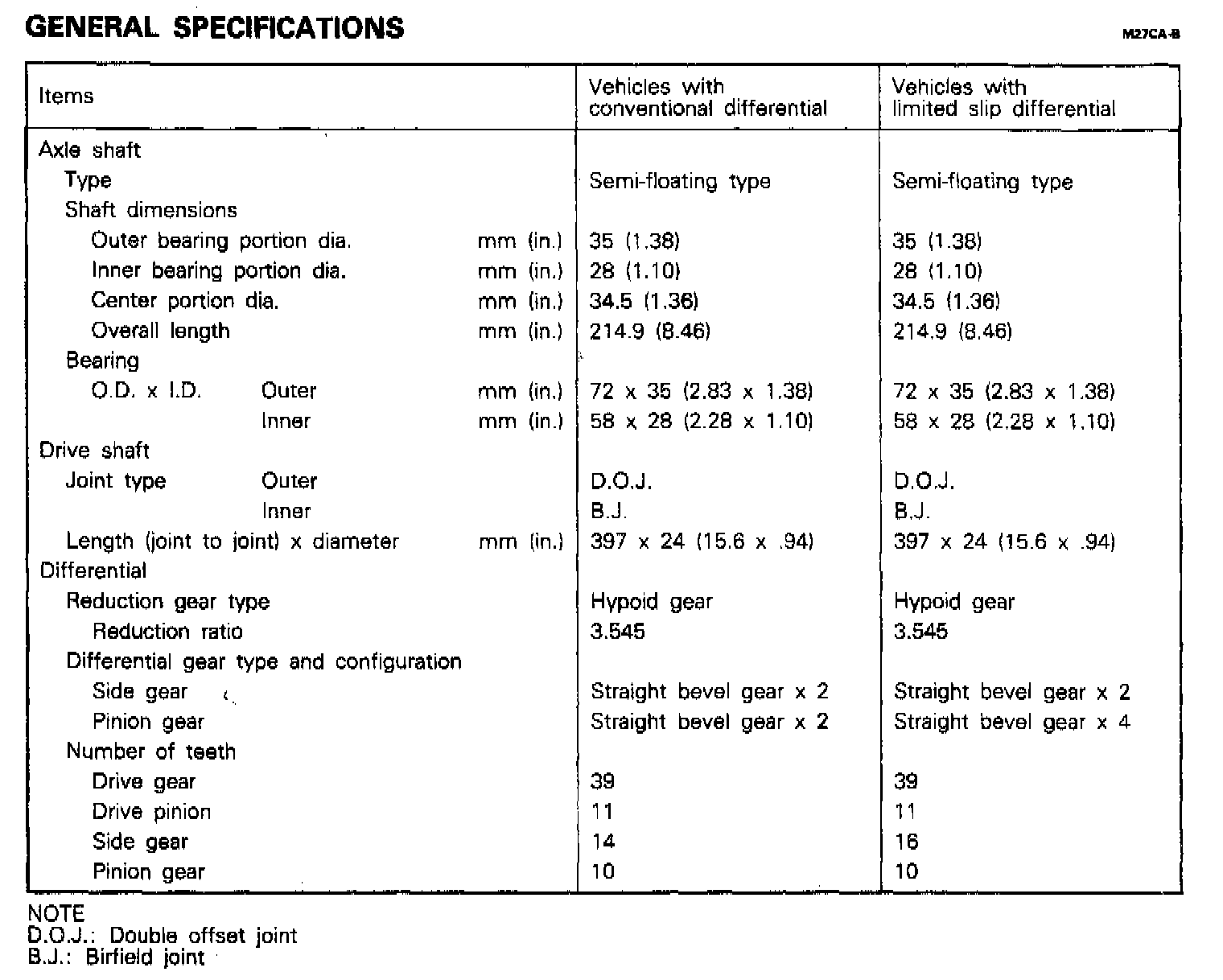

Rear Axle (AWD), Differential Dimensions:

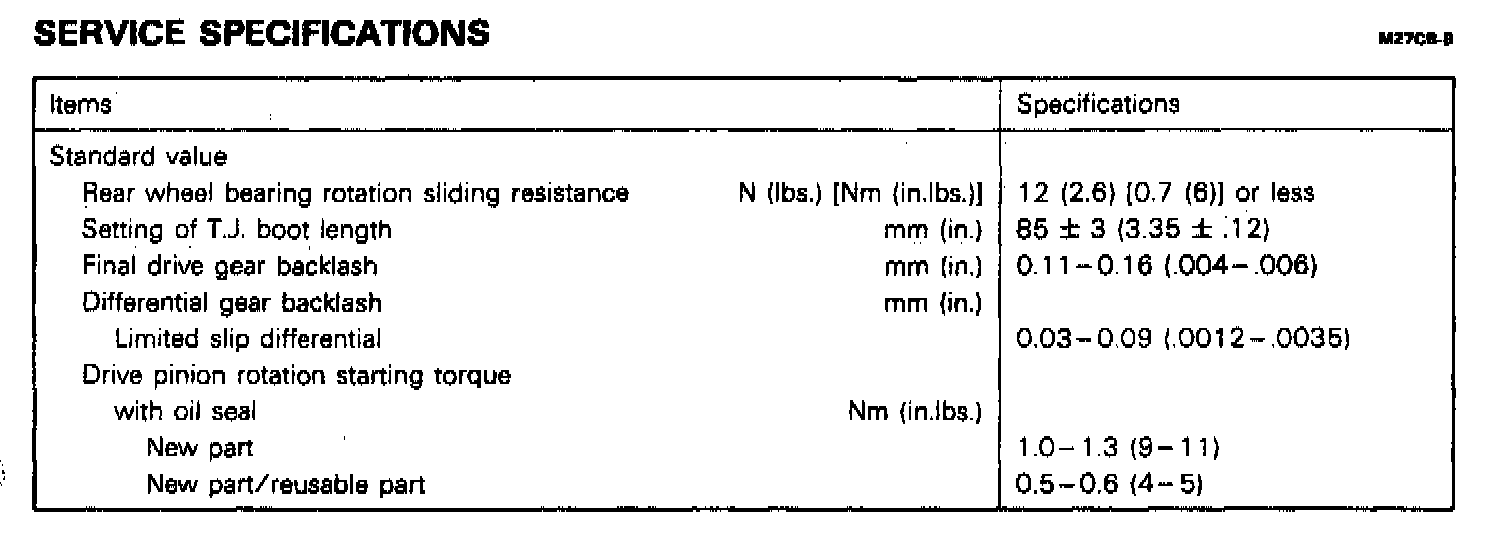

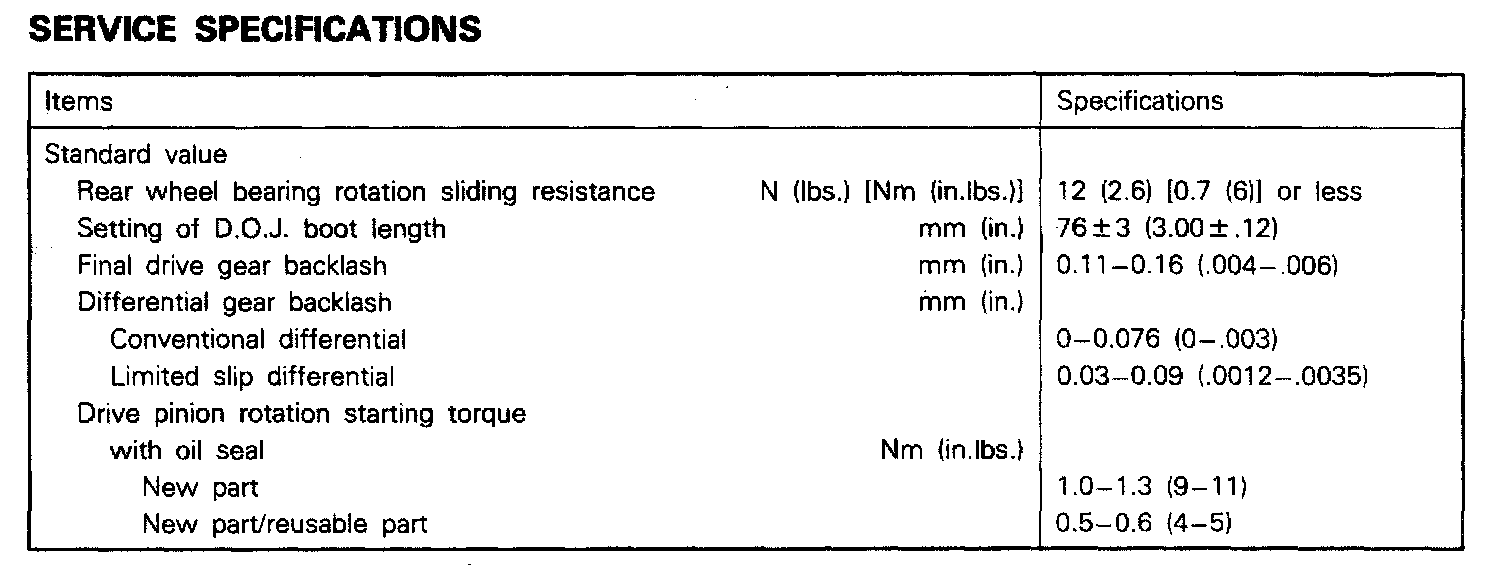

M/T & A/T, Differential Standard Values:
Rear Axle Differential Torque:

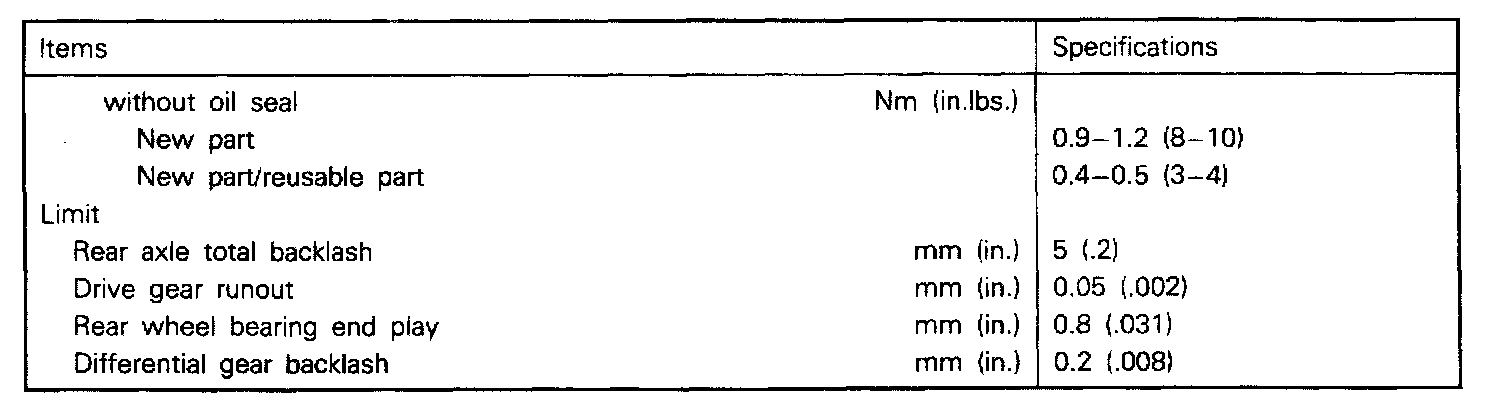

M/T & A/T, Differential Limits:
