Home >> Mitsubishi >> 1994 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Differential Assembly >> Fastener Tightening Specifications

Fastener Tightening Specifications

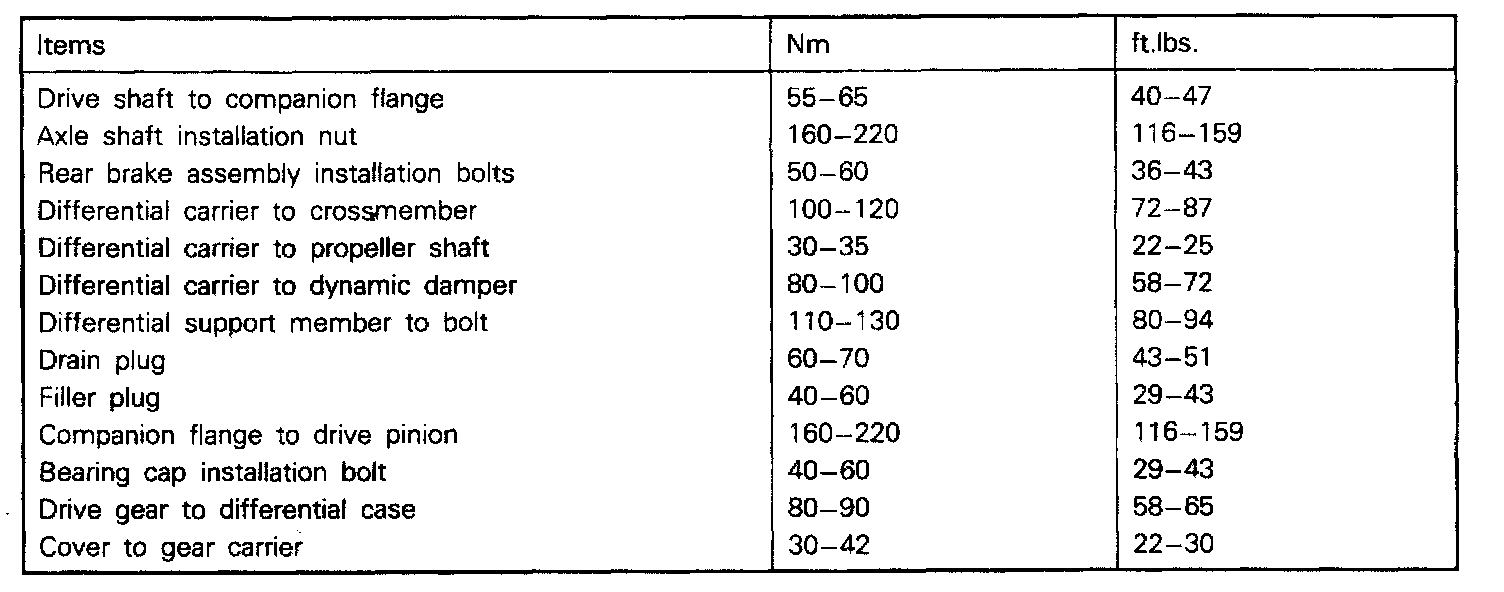

M/T & A/T, Differential Torque:
