W4A33 4-SPD A/T

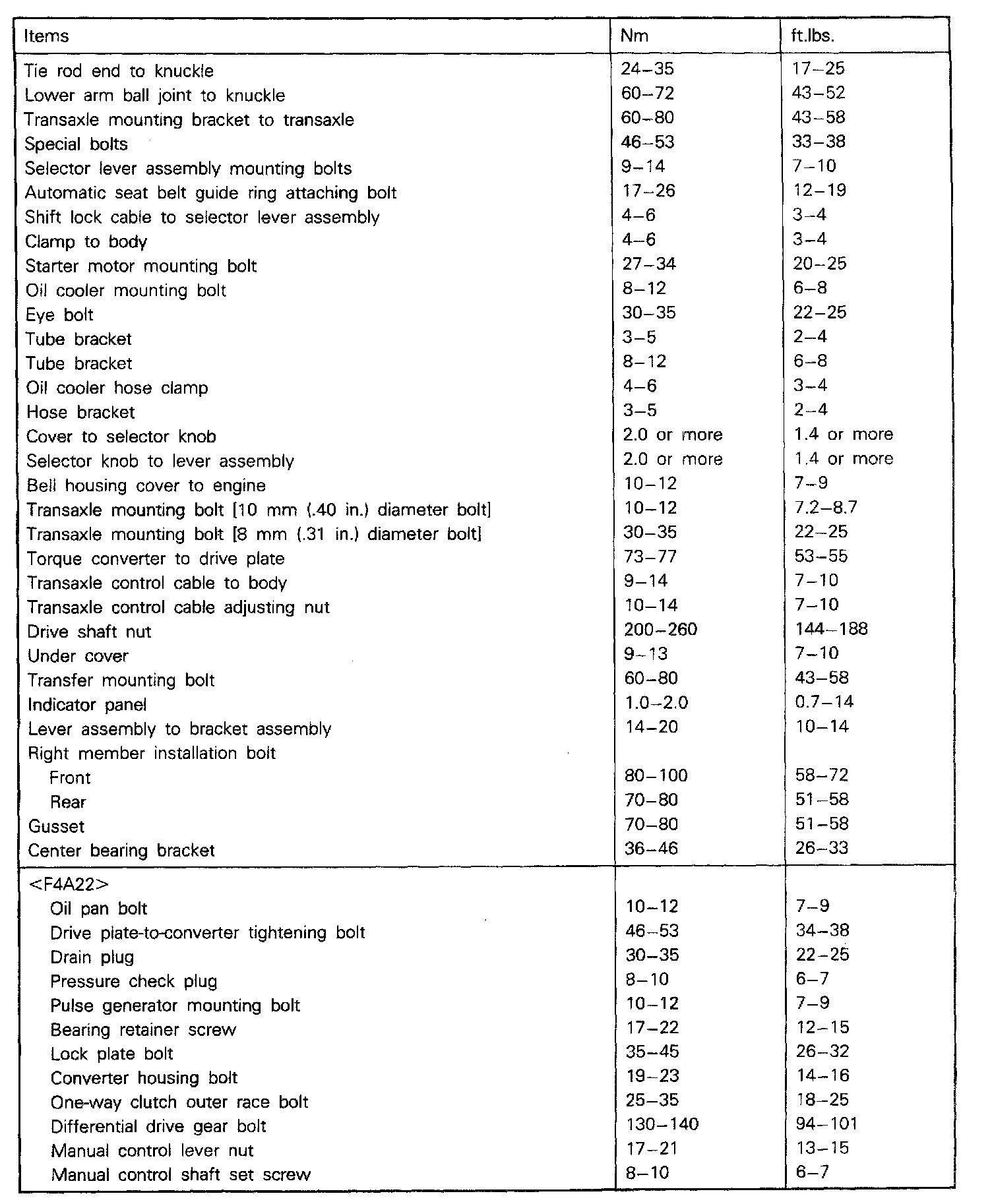

F4A33/W4A33 4-spd A/T, Transaxle Torque (1 Of 3):

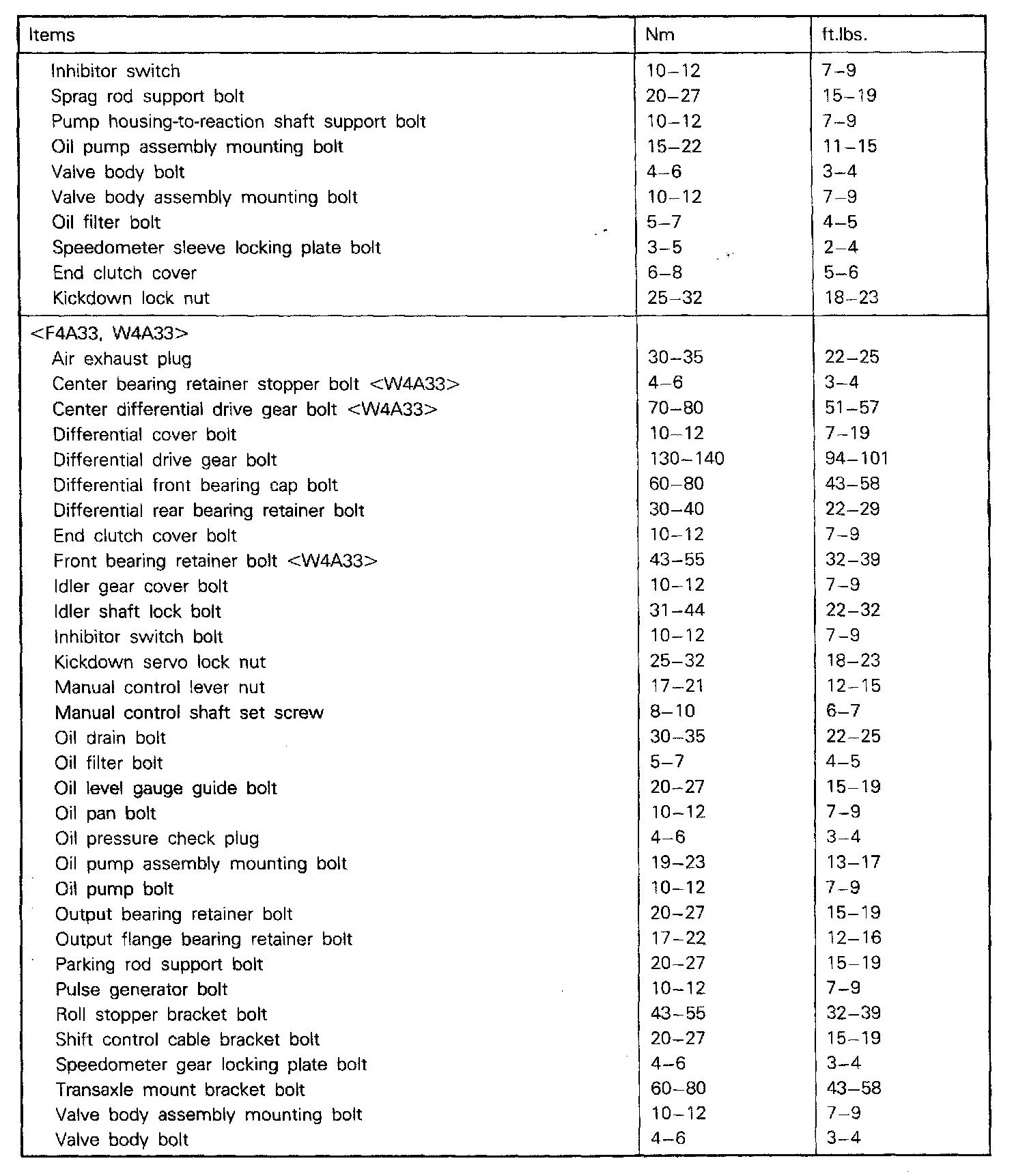

F4A33/W4A33 4-spd A/T, Transaxle Torque (2 Of 3):

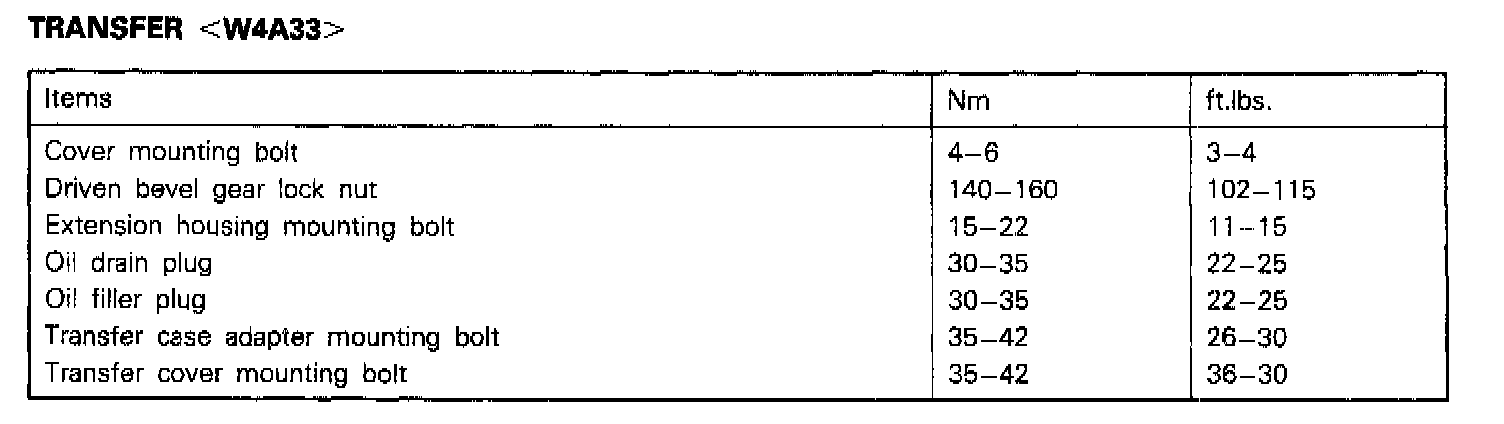

W4A33 4-spd A/T, Transfer Torque:
