Home >> Mitsubishi >> 1994 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Instrument Panel, Gauges and Warning Indicators >> System Specifications

System Specifications

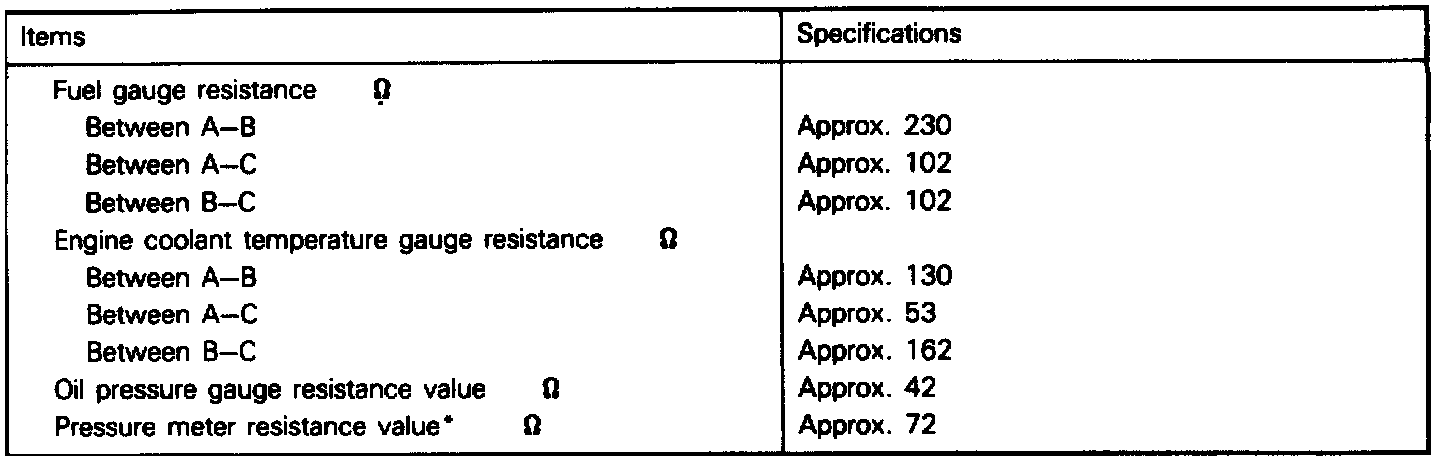

Service Specifications (Part 1 Of 2):

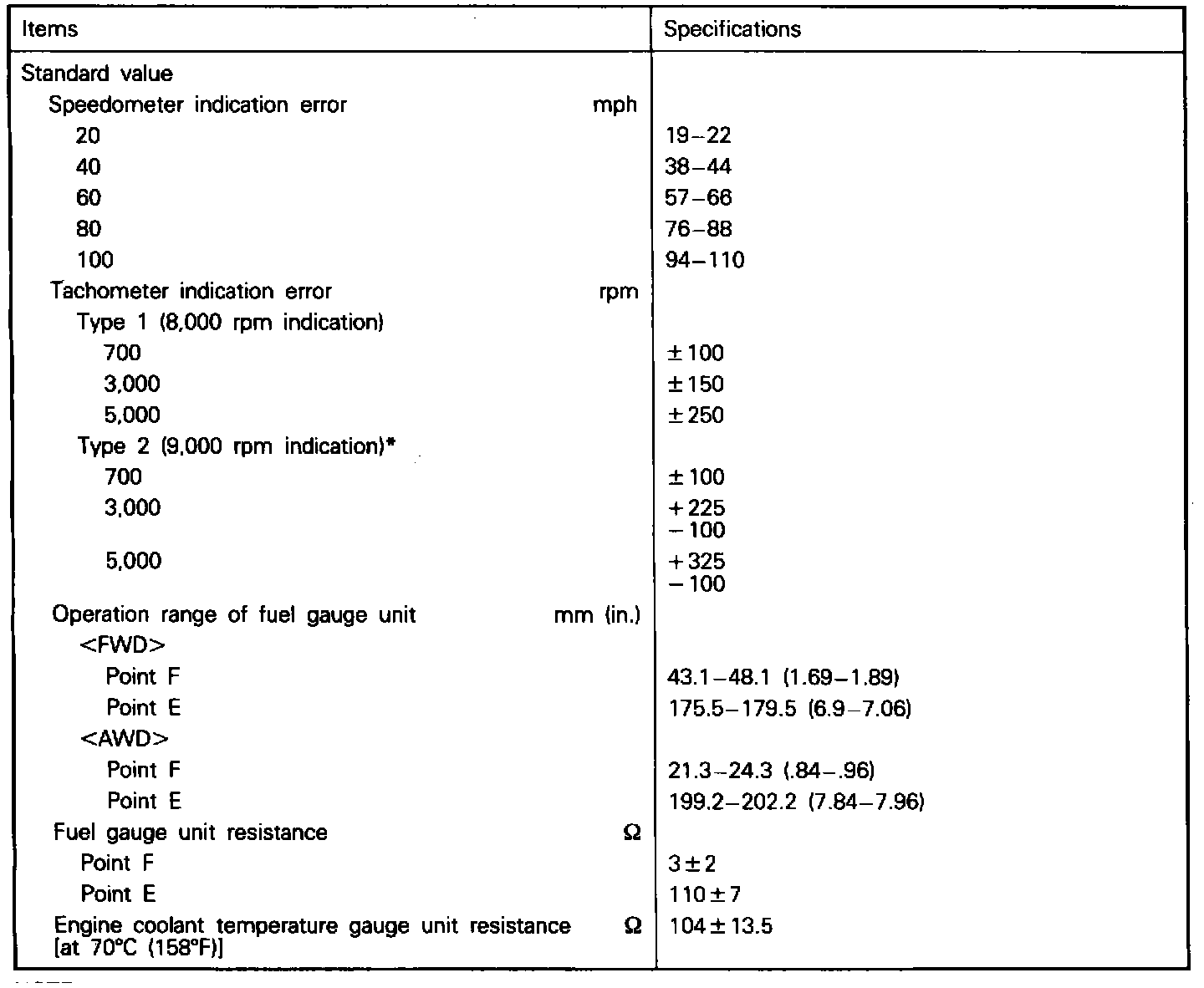

Service Specifications (Part 2 Of 2):
