Injector Connector

Foreword
A loose connector should be rectified by removing female terminal from connector housing and raising its lance to establish a more secure engagement.

Injector Connector:

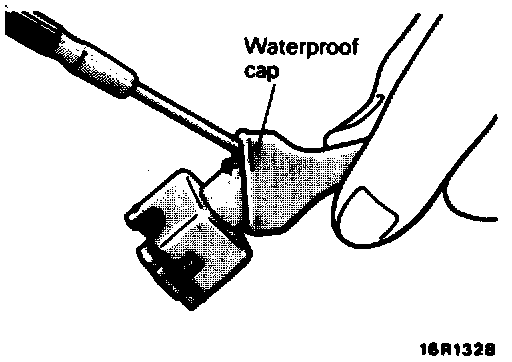

1. Remove waterproof cap.

Injector Connector:

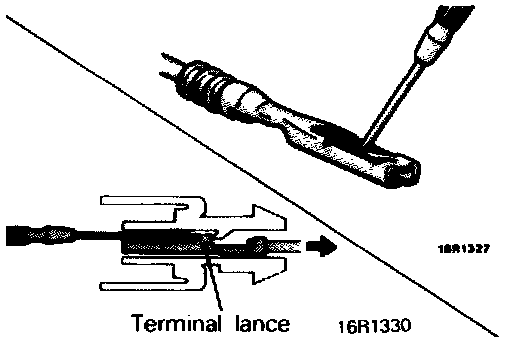

2. Insert tip of screwdriver [1.4 mm (0.06 in) width] into connector in a manner as shown in the figure, press in terminal lance and pull out harness.
3. Press contact point of male terminal down by holding a screwdriver [1.4 mm (0.06 in) width] in a manner as shown in the figure.

CAUTION: Correct lancer to be in proper condition before terminal is inserted into connector.
