Ignition Switch Lock Cylinder: Service and Repair

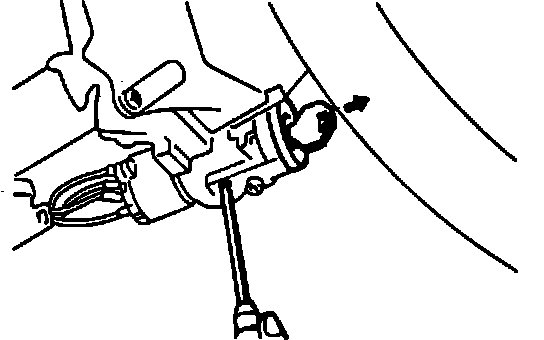

Fig. 7 Removing Lock Cylinder:

1. Insert the key in the steering lock cylinder and turn it to the "ACC" position
2. Using a Cross-tip (+) screwdriver (small) or a similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder toward you.
