Fog Light Switch

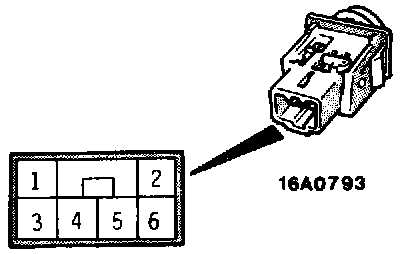

Fog Light Switch:




Fog Light Switch:

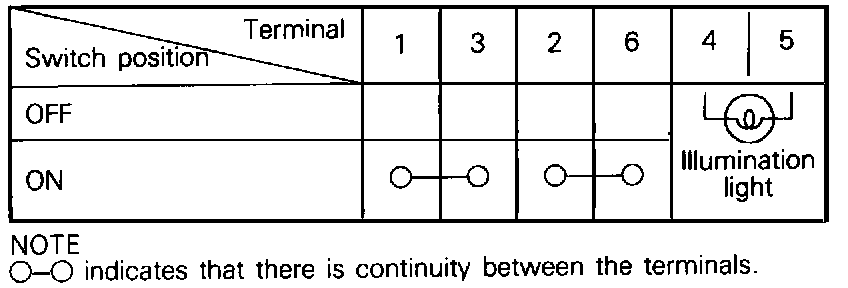

Operate the switch to check for continuity between terminals.
