Home >> Mitsubishi >> 1994 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

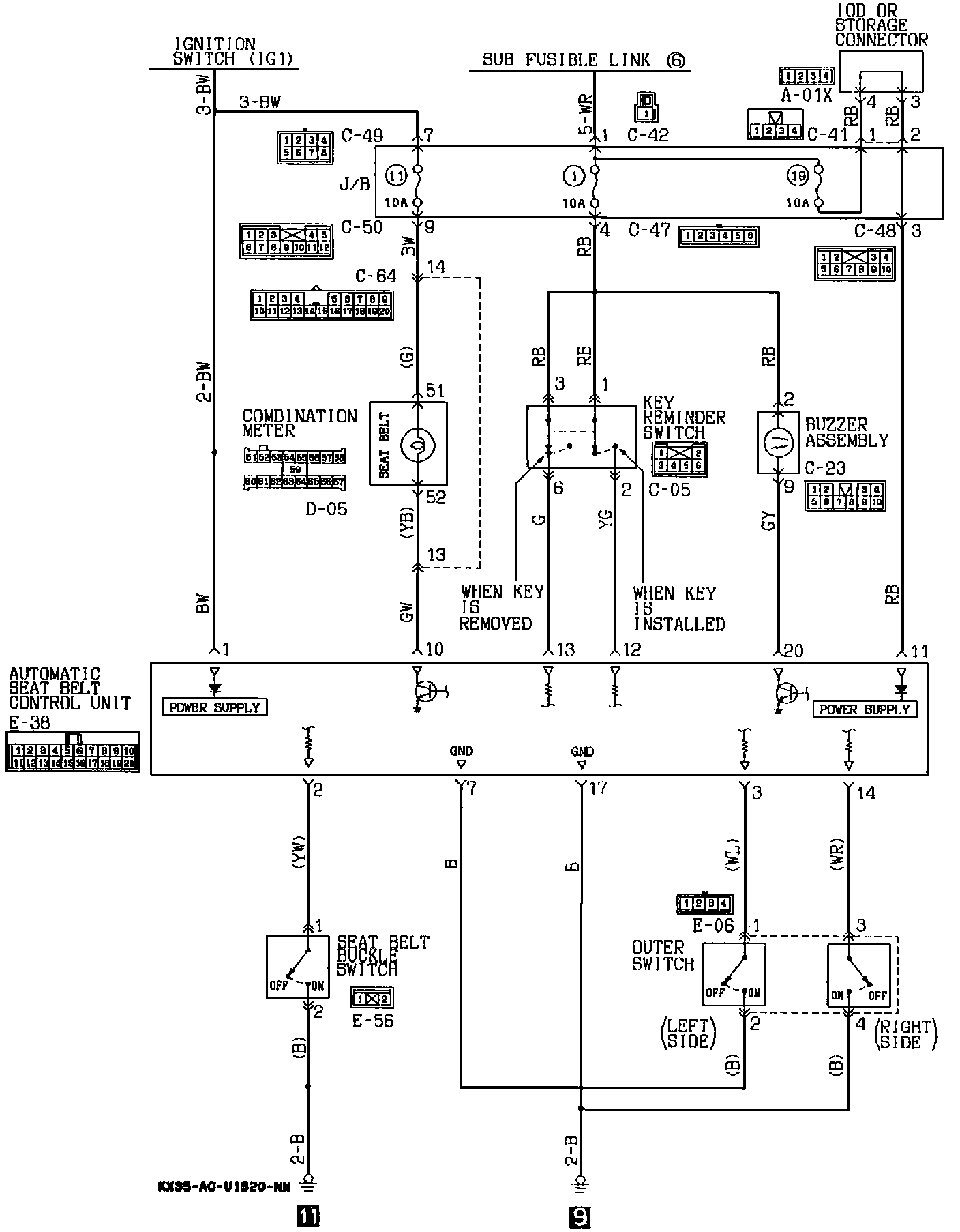

Automatic Seat Belt Circuit (Part 1 Of 2):

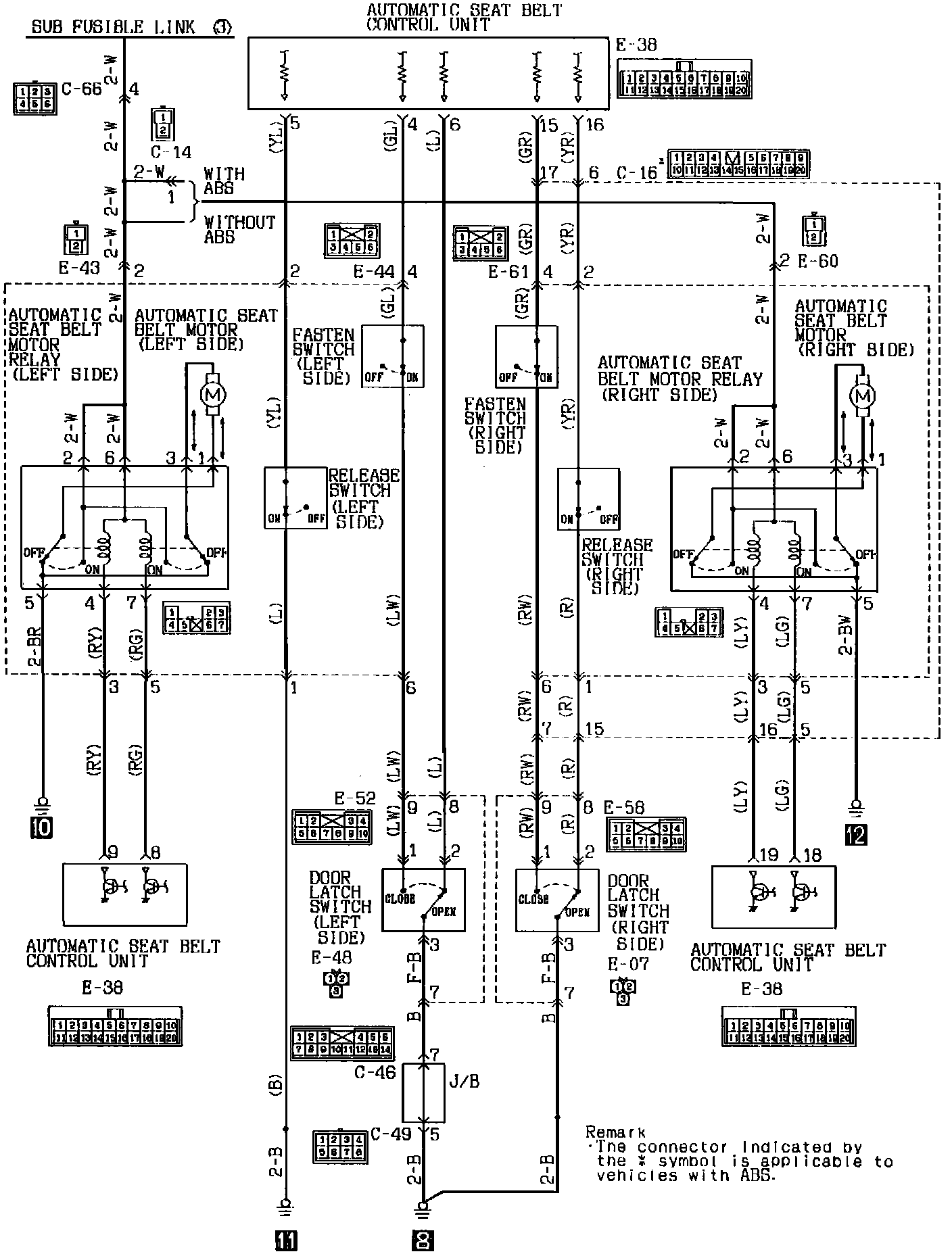

Automatic Seat Belt Circuit (Part 2 Of 2):
