Removal and Replacement

1. Remove manual transaxle shift lever knob, ashtray, inner box and center console panel.

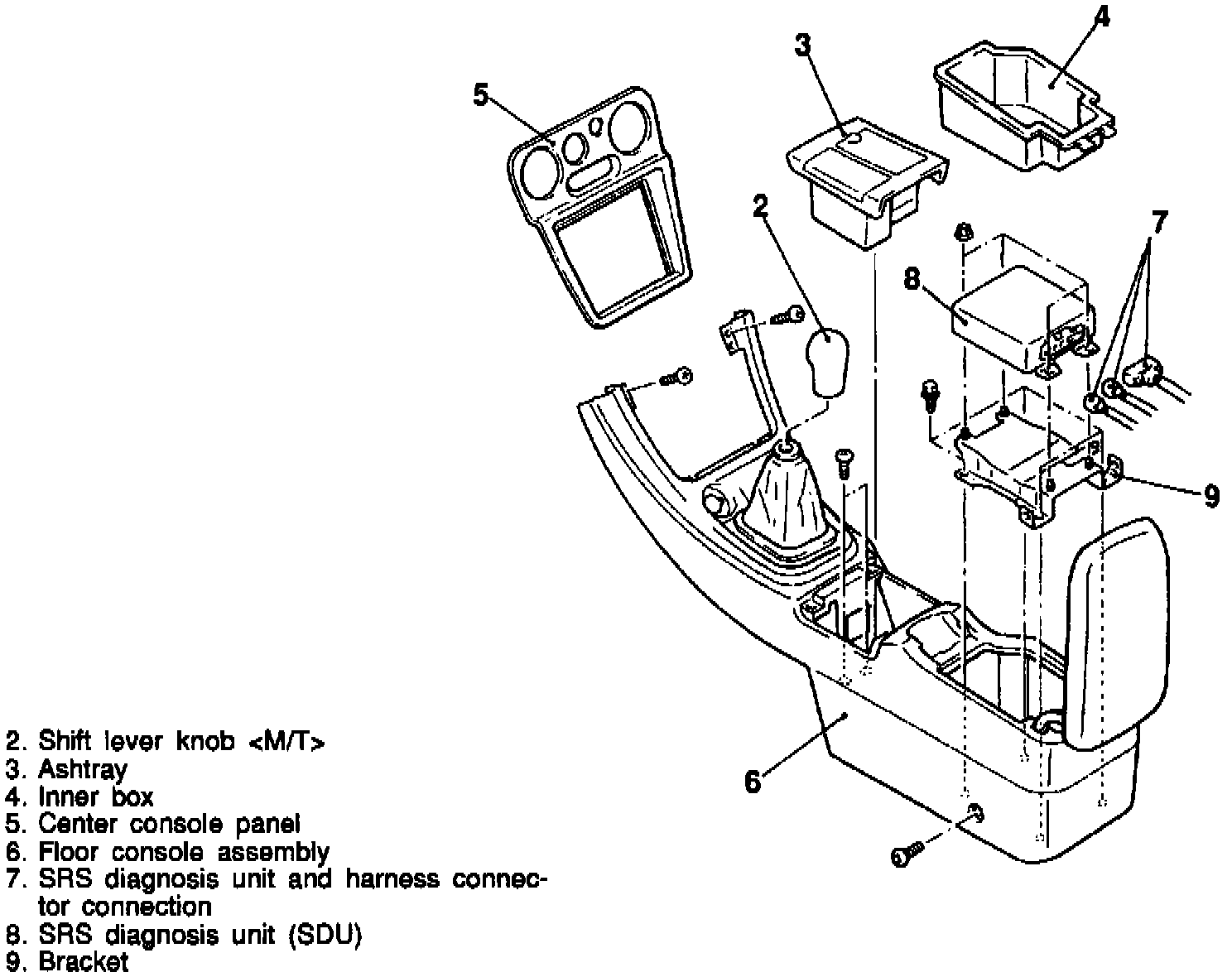

Fig. 32 SDU Replacement:

2. Remove floor console, Fig. 32.
3. Remove SDU and harness.

Fig. 38 SRS-ECU Harness:

4. Place flat tip screwdriver against connector metal lock spring, then push spring toward inside of SDU and disconnect harness, Fig. 38.
5. Reverse procedure to install.
