Antenna Relay: Testing and Inspection

Antenna Relay:

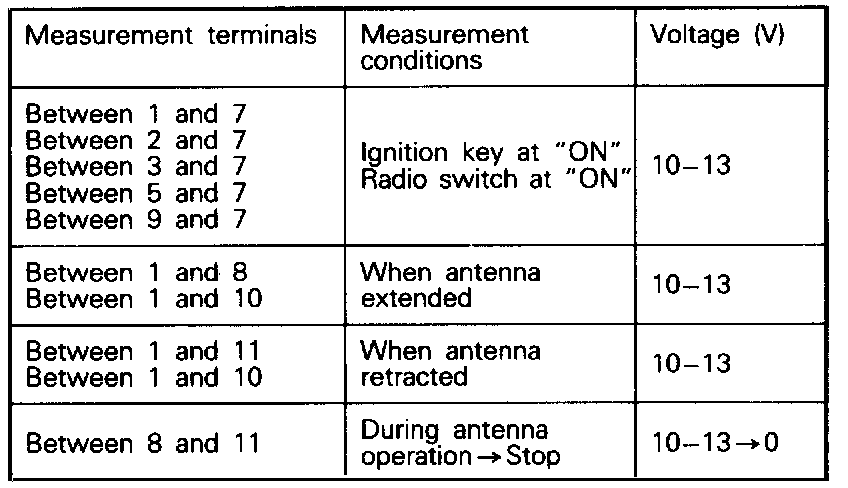

With the harness connector connected and the antenna mast extending/retracting, check the antenna relay voltage.
