Reading Diagnostic Trouble Codes
>>
Without Scan Tool
Without Scan Tool

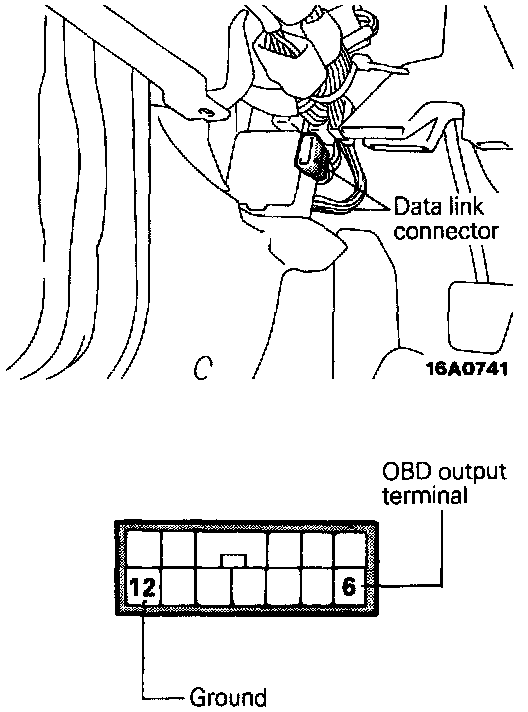

Connect the Voltmeter to the diagnosis output terminal on the diagnosis connector and to the ground terminal, and read the diagnosis code with the amplitude of the needle.
