Diagnostic Strategies

Functional malfunctions of the ELC4A/T can lead to other problems, such as those described below:
- Improper maintenance and/or adjustments
- Malfunctions of the electronic control functions
- Malfunctions of mechanical functions
- Malfunctions of hydraulic control functions
- Malfunctions of engine performance etc.
In order to properly determine ("Troubleshoot") the source of these malfunctions, it is first essential to methodically question the user concerning the details of the problem. such as the condition of the problem, the situation at the time the problem occurred, and any other relevant information, all in as much detail as possible. The user should also be asked whether or not the problem has occurred more than once, and under what conditions.

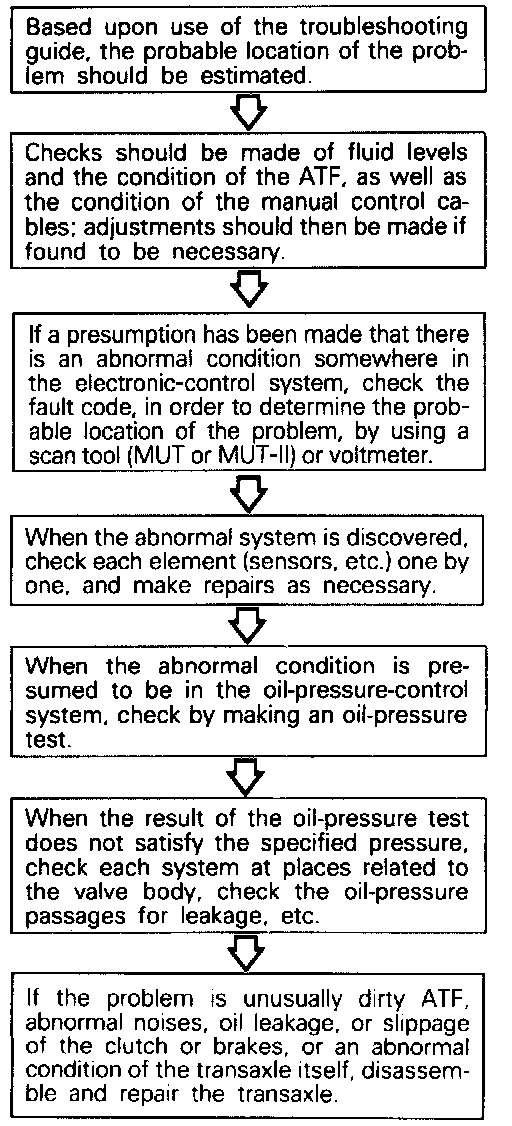

Subsequently, certain tests should be conducted in a certain order, as described at the left.
