Turbocharger - Repair Kit Availability
NO.: TSB-96-15-001DATE: July, 1996
MODEL: 1990-94 Eclipse
SUBJECT:
TURBOCHARGER REPAIR KIT
PURPOSE
New parts kits are available for turbocharger repairs, upgrades, and overhauls. Use of these kits ensures that the latest components are installed when replacing turbocharger components.
AFFECTED VEHICLES
1990-94 Eclipse Turbo.
INSTRUCTIONS
Follow the removal/installation sequences on pages 15-19,15-20, and 15-21 in the 92-94 Eclipse Service Manual, Vol. 1. When servicing the turbocharger with these kits, all gaskets, O-rings, and snap rings in the service kit must be used.
Note that the Repair/Upgrade Kit for A/T vehicles includes a turbine housing assembly as well as a cartridge. The cartridge and housing, which must be used together, provide an increase in turbo cooling capacity.
PARTS INFORMATION
The part numbers of the repair/upgrade kits are:

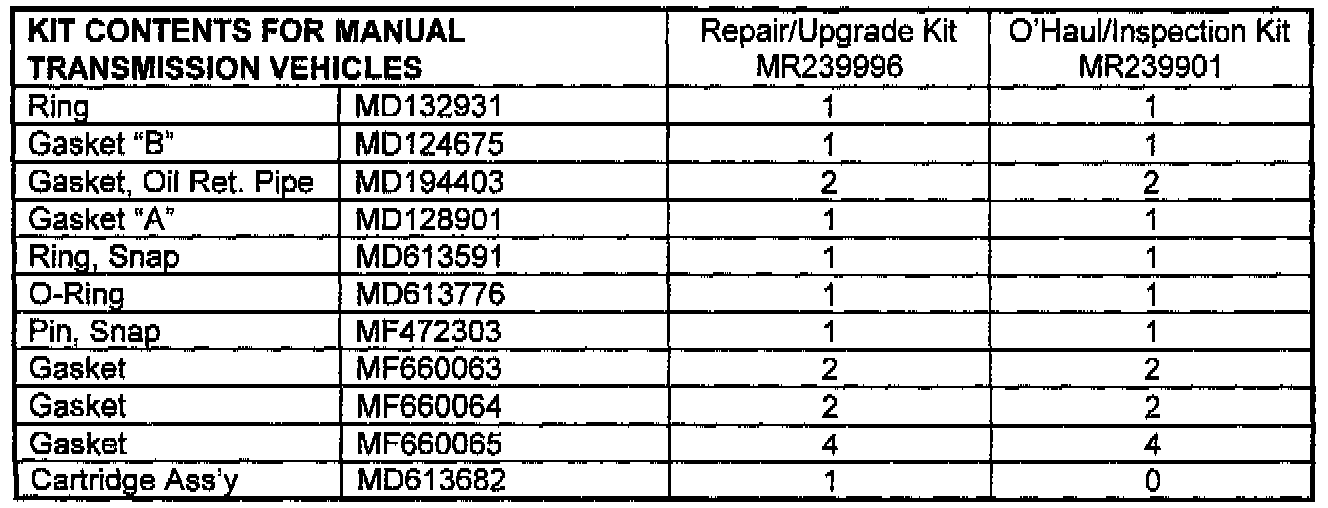

Manual transmission: MR239996

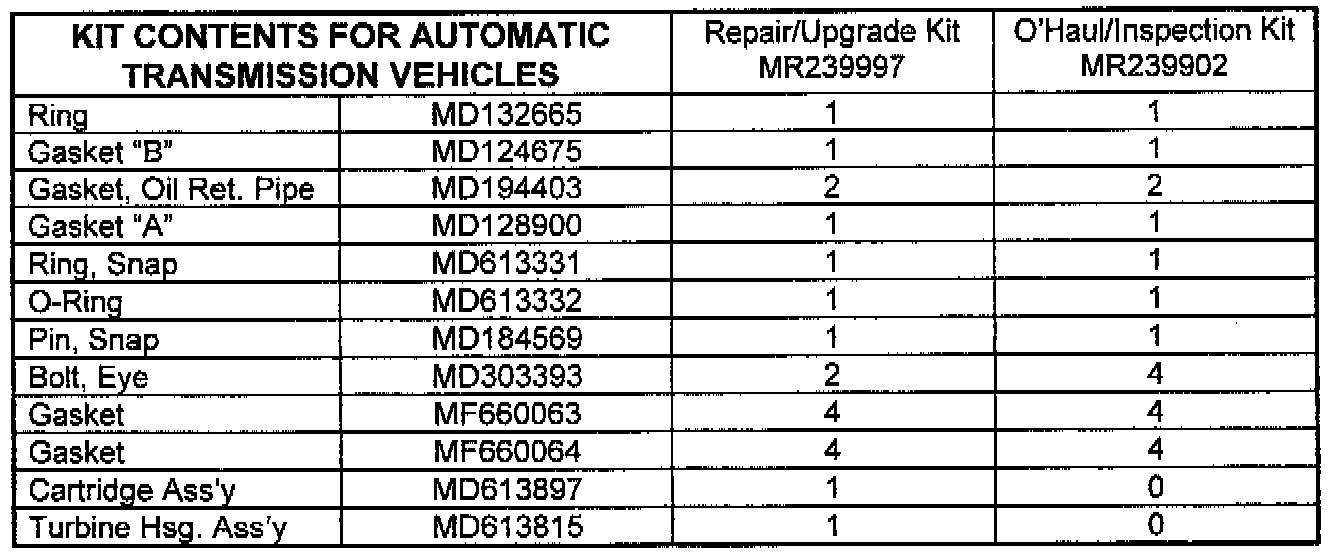

Automatic transmission: MR239997
The part numbers of the overhaul/inspection kits are:
Manual transmission: MR239901
Automatic transmission: MR239902
WARRANTY INFORMATION
Turbo Replace
Nature Code: 04Q Cause Code: 110 or 150
Labor Operation Number: 15501010 Time Allowance: 1.8 hr.
Warranty coverage: Power Train Warranty coverage (Emissions Coverage for California Vehicles see applicable warranty booklet)
Turbo Cartridge Ass'y Replace
Nature Code: 04Q Cause Code: 110 or 150
Labor Operation Number: 15502210 Time Allowance: 2.5 hr.
Warranty Coverage: Power Train Warranty coverage (Emissions Coverage for California Vehicles see applicable warranty booklet)
NOTE: Warranty covered repairs should be performed only on an "as needed" basis.
