Tools - Multi Use Tester-II Application
NO.: TSB-93-00-004DATE: May, 1993
MODEL: See below
SUBJECT:
MULTI-USE TESTER-II
APPLICATION
PURPOSE
This bulletin lists vehicles and systems which can be tested using the Mitsubishi Scan Tool: Multi-Use Tester-II (MUT-II). The MUT-II can be used in place of the earlier Multi-Use Tester. The MUT-II MUST be used for accessing ECM information on 1994 model year vehicles.
MUT-II VEHICLE APPLICATIONS

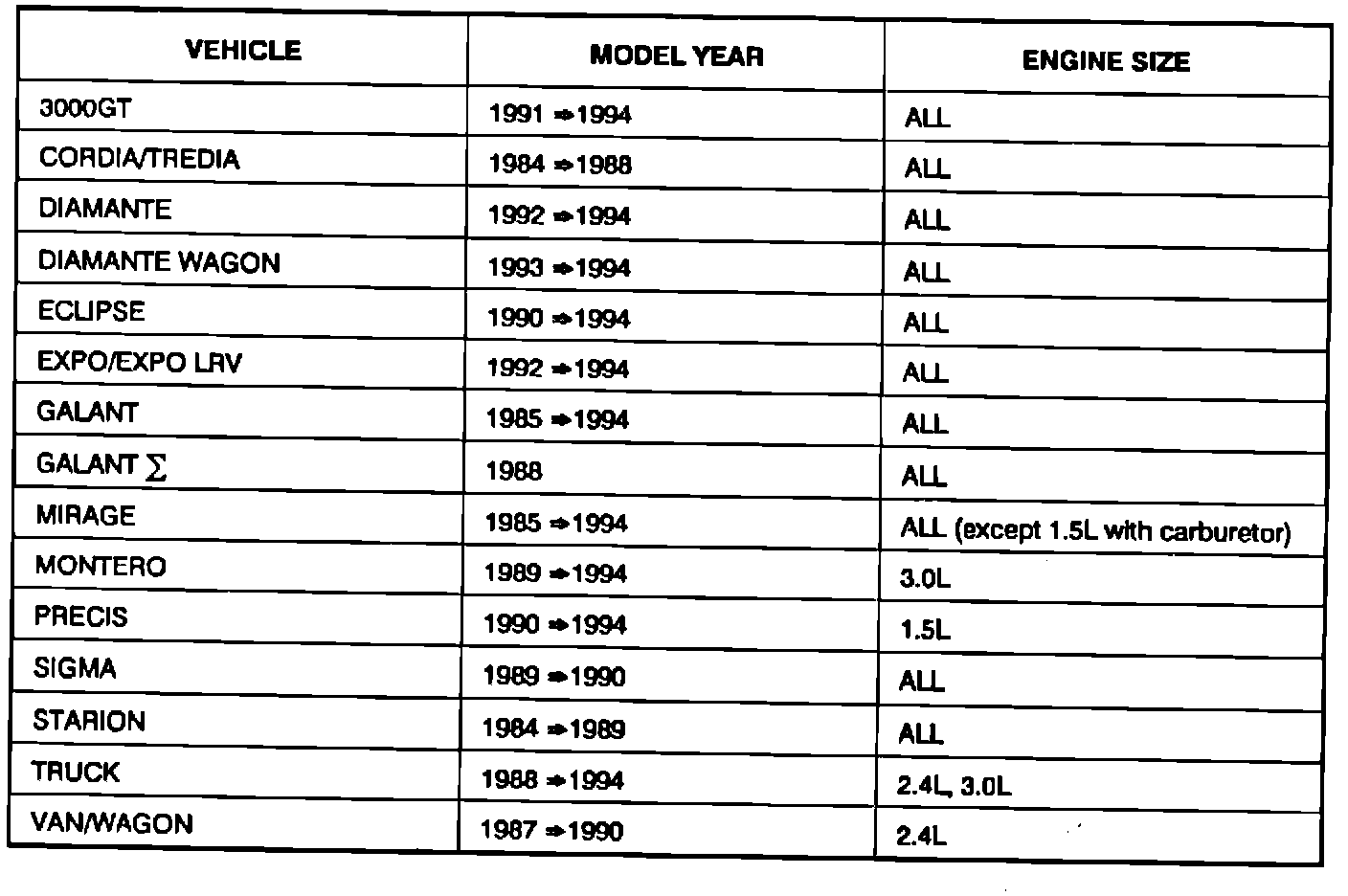

The MUT-II can be used on the vehicles: (see illustration)

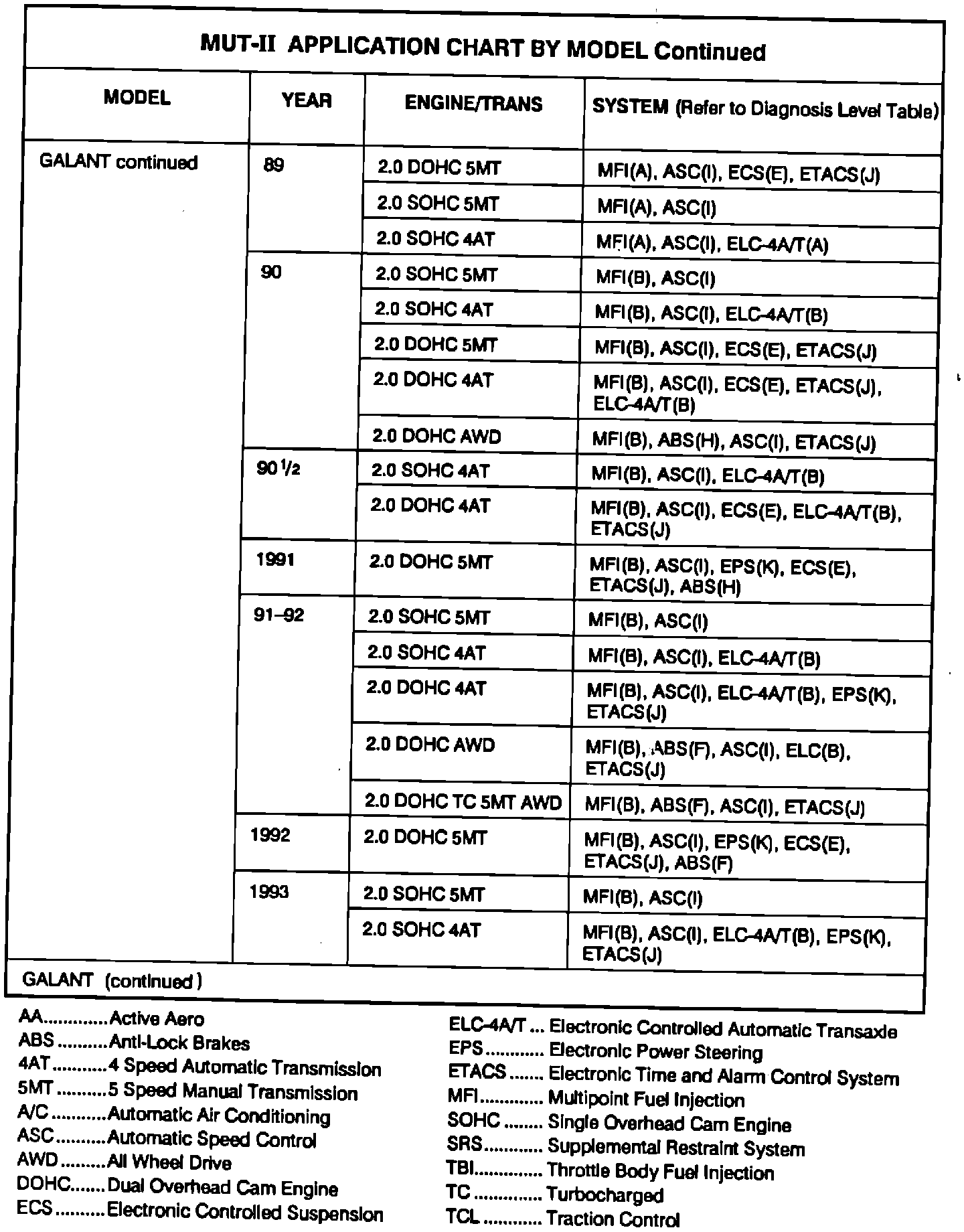

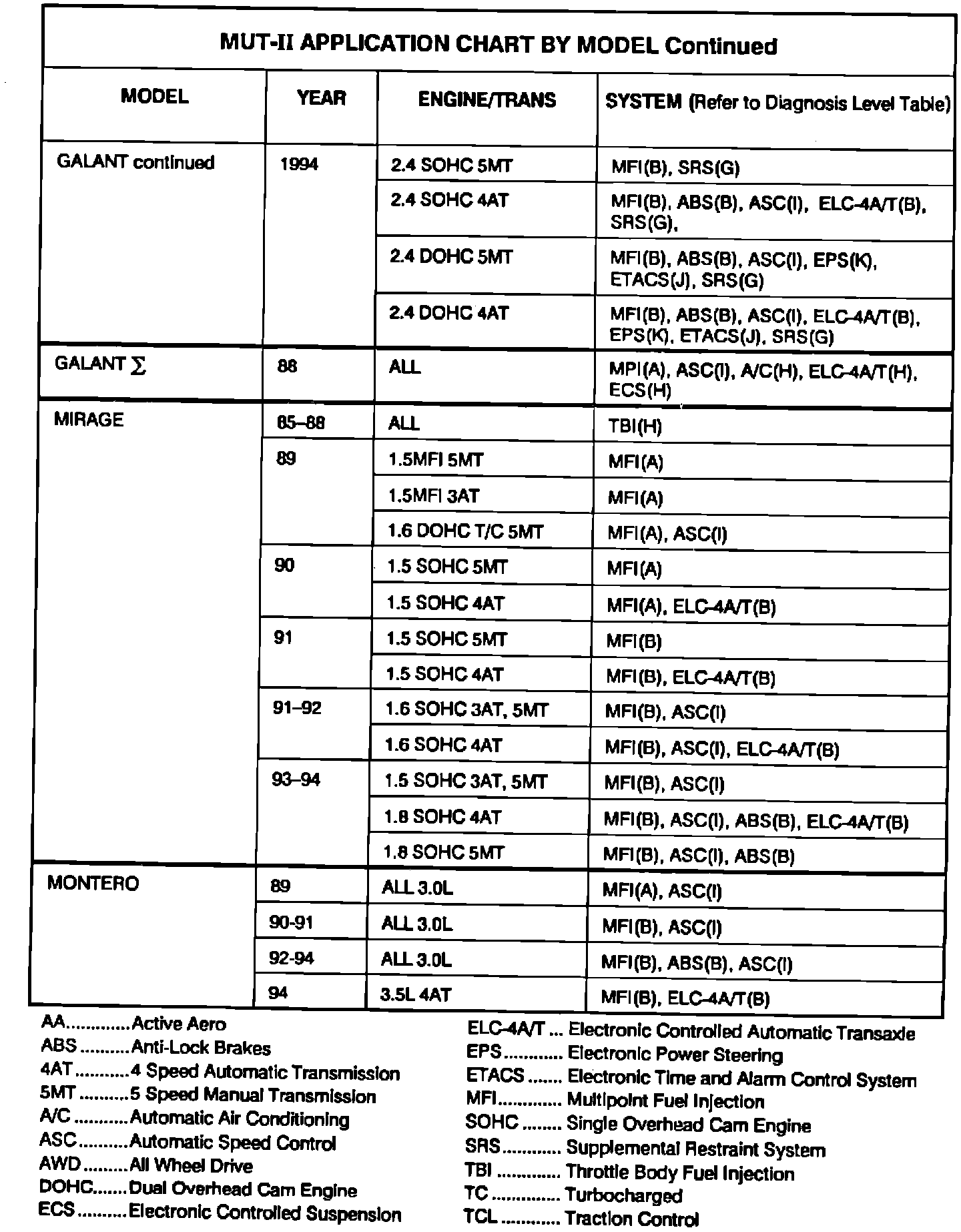

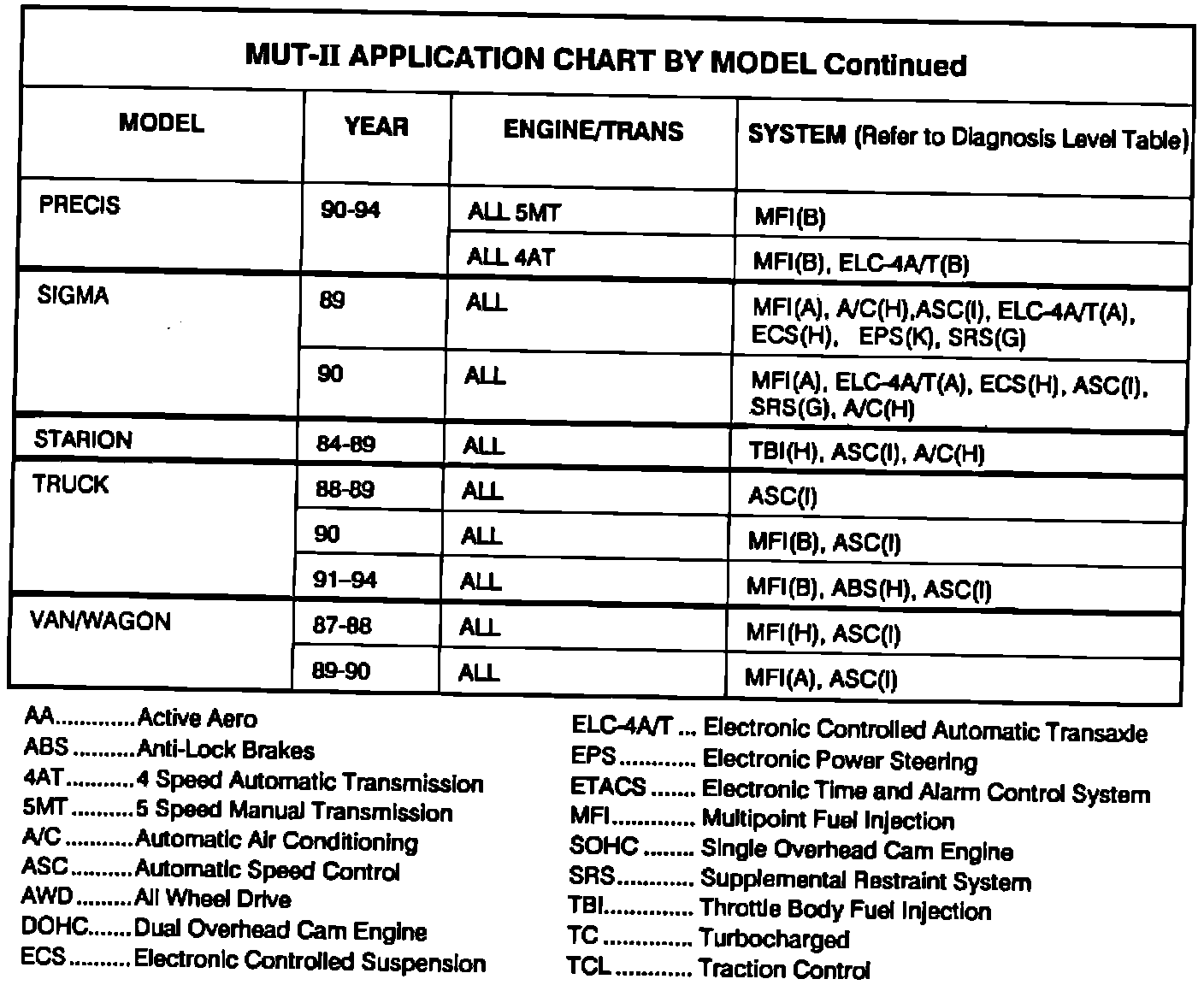

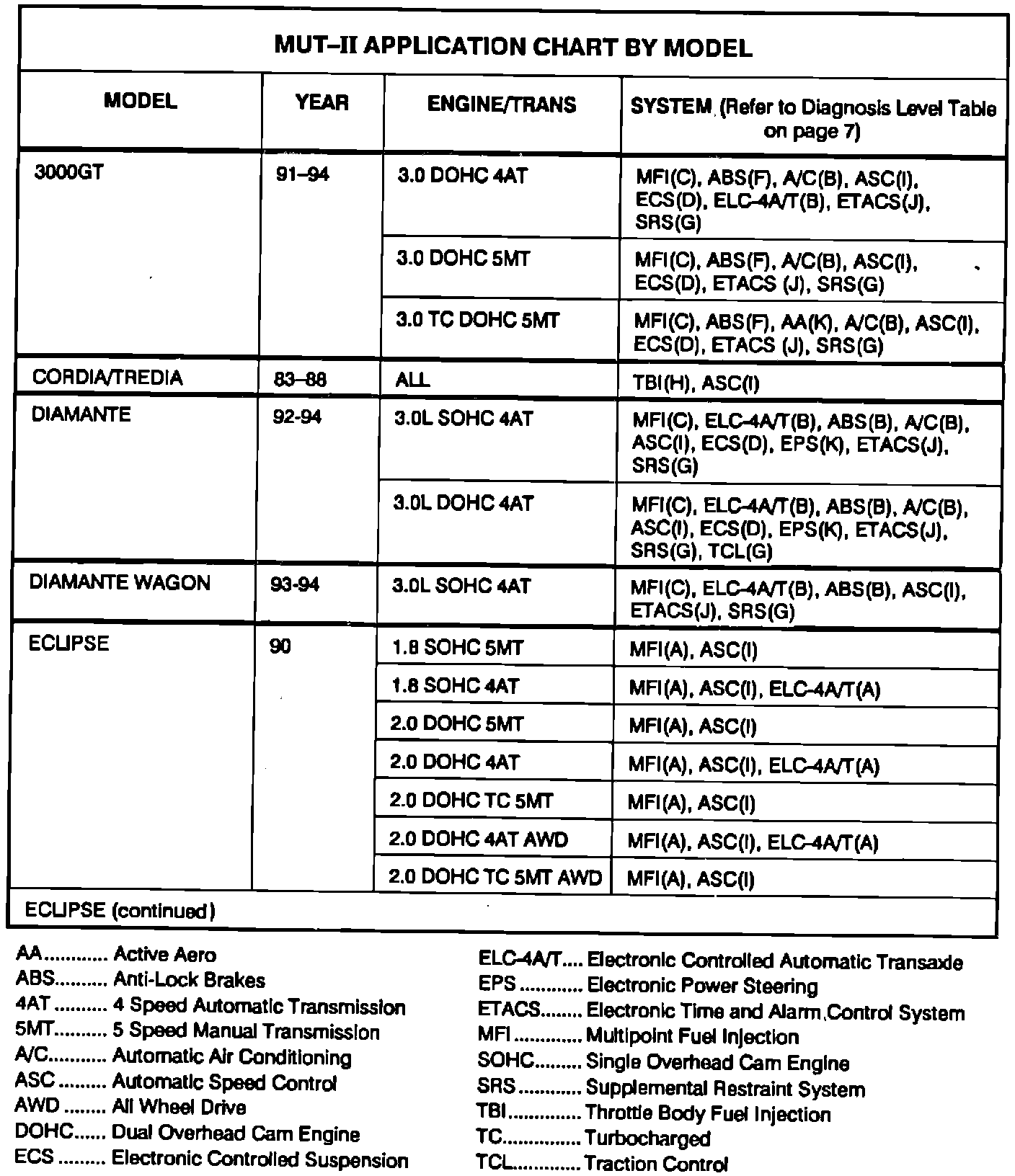

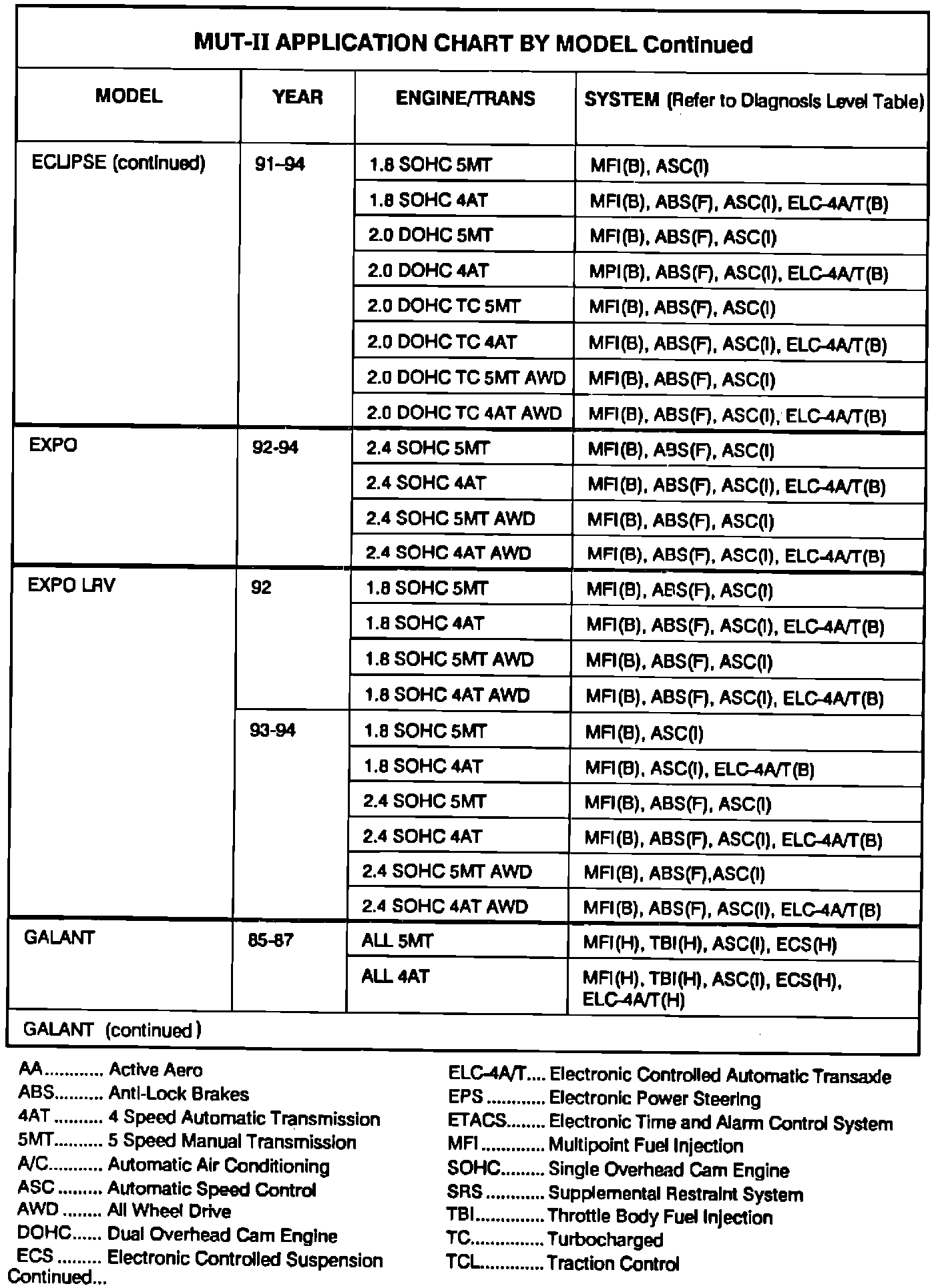

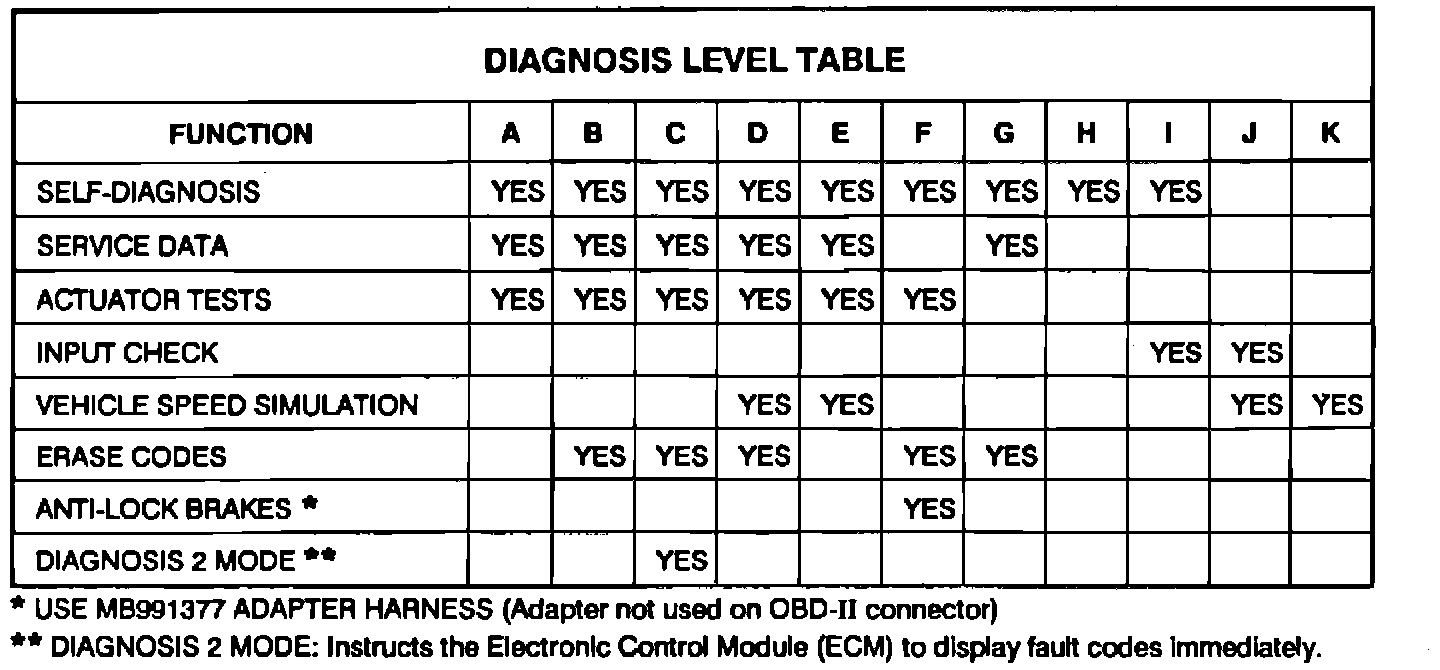

Diagnosis Level Table

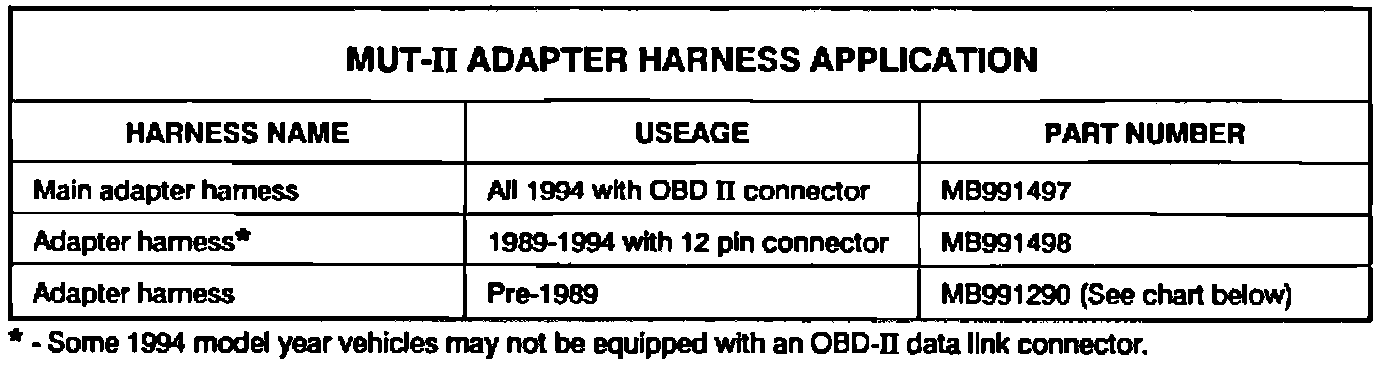

MUT-II Adapter Harness Application

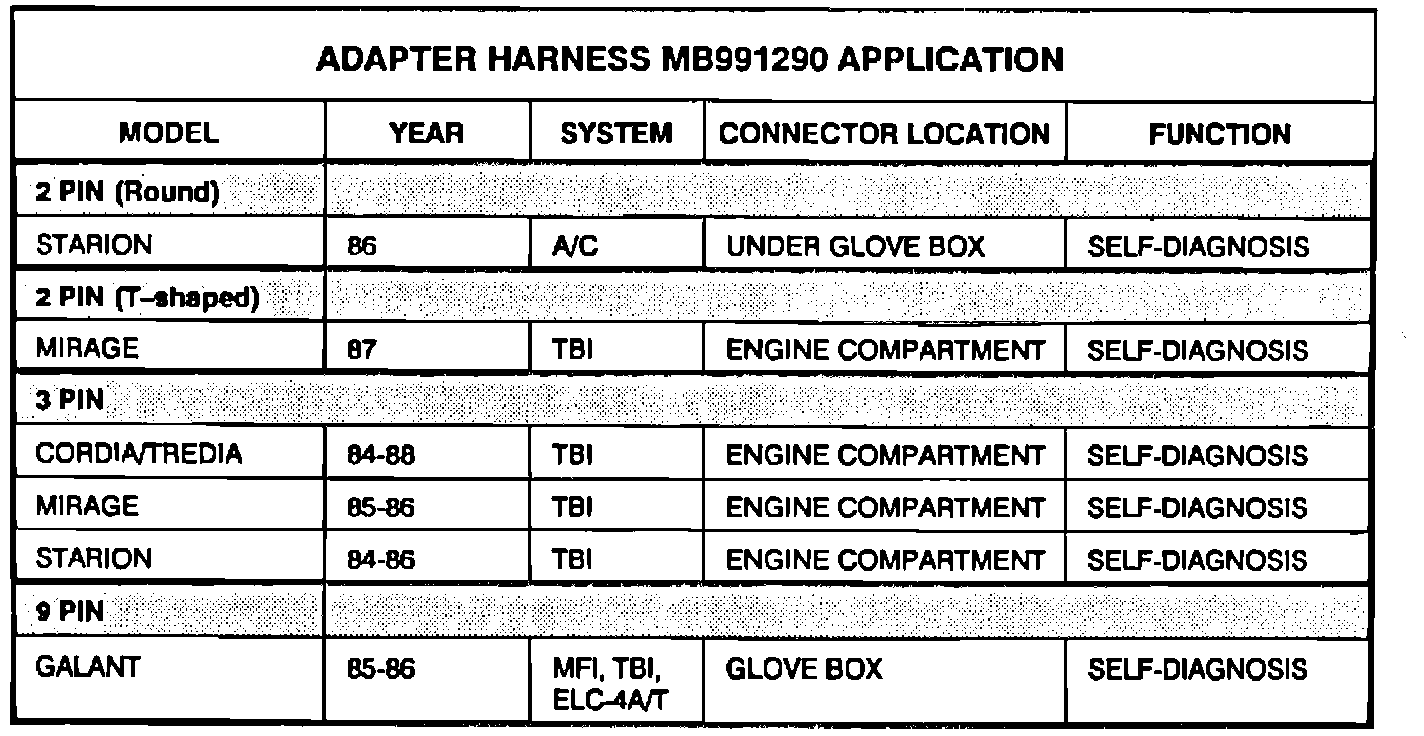

Adapter Harness MB991290 Application
