Removal and Installation Steps

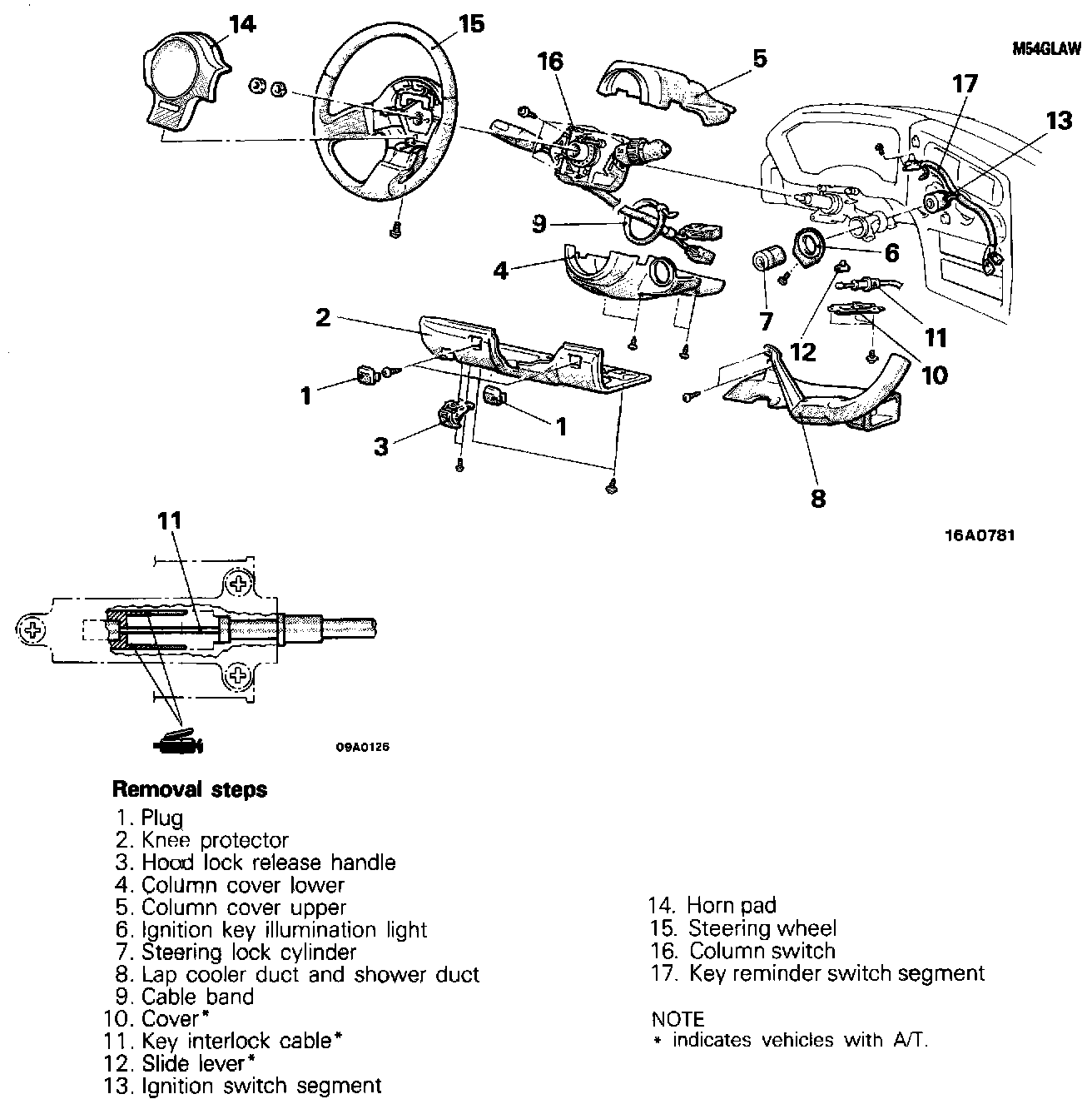

Ignition Switch - Removal And Installation:

REMOVE
1. Plug
2. Knee protector
3. Hood Lock release handle
4. Column cover lower
5. Column cover upper
6. Ignition key illumination light
7. Steering lock cylinder
8. Lap cooler duct and shower duct
9. Cable band
10. Cover*
11. Key interlock cable*
12. Slide lever*
13. Ignition switch segment
14. Horn pad
15. Steering wheel
16. Column switch
17. Key reminder switch segment

INSTALL
1. Key reminder switch segment
2. Column switch
3. Steering wheel
4. Horn pad
5. Ignition switch segment
6. Slide lever*
7. Key interlock cable*
8. Cover*
9. Cable band
10. Lap cooler duct and shower duct
11. Steering lock cylinder
12. Ignition key illumination light
13. Column cover upper
14. Column cover lower
15. Hood Lock release handle
16. Knee protector
17. Plug

NOTE: * indicates vehicles with A/T
