Ignition Coil: Service and Repair

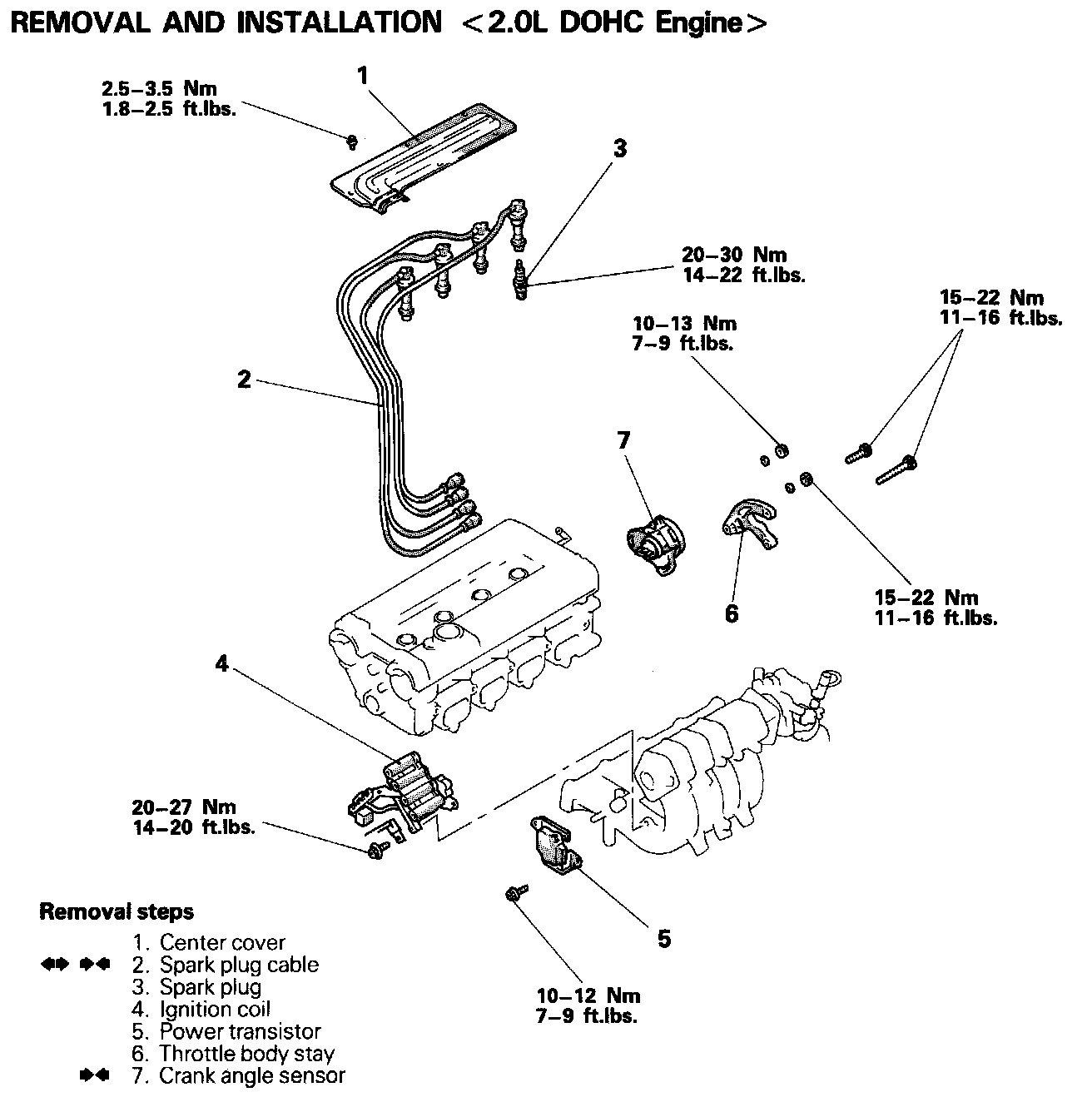

SERVICE POINTS OF REMOVAL FOR IGNITION COIL AND CABLES






REMOVAL OF SPARK PLUG CABLE AND COIL






1. When disconnecting cable, hold cap.
2. Remove coil

INSTALLATION OF COIL
1. Install Coil
INSTALLATION OF SPARK PLUG CABLE
Improper arrangement of spark plug cables will induce Voltage between the cables, causing miss firing and developing a surge at acceleration in high-speed operation. Therefore, be careful to arrange the spark plug cables properly by the following procedure.

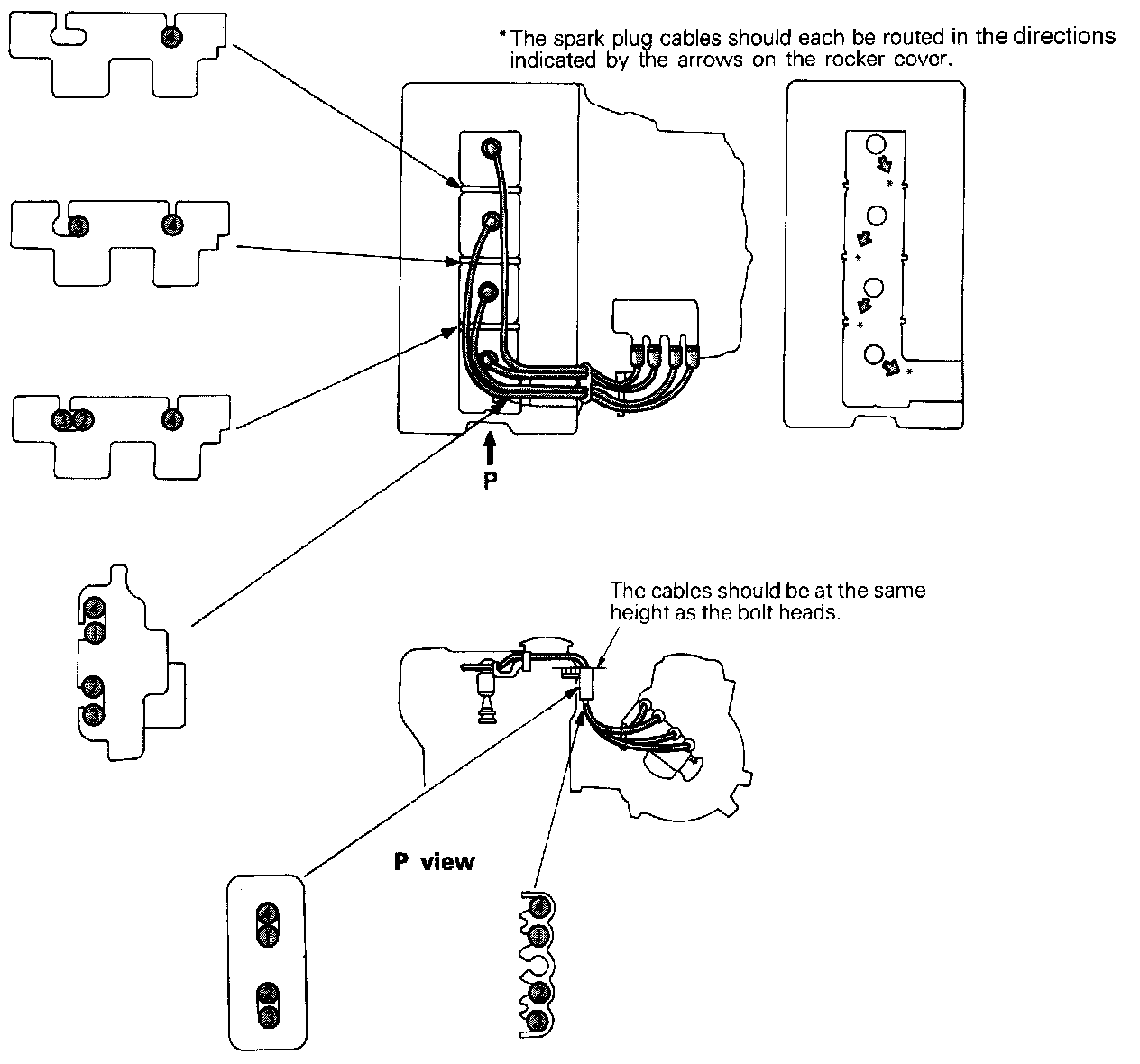

1. Install the spark plug cable clamps as shown in the illustration.
2. The numerals on the support and clamp indicate the spark plug cable No.
3. Pay attention to the following items when the spark plug cables are installed.
(1) Install the cables securely to avoid possible contact with metal parts.
(2) Install the cables neatly, ensuring they are not too tight, loose, twisted or kinked.
