Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Coil
>>
Locations
Ignition Coil: Locations

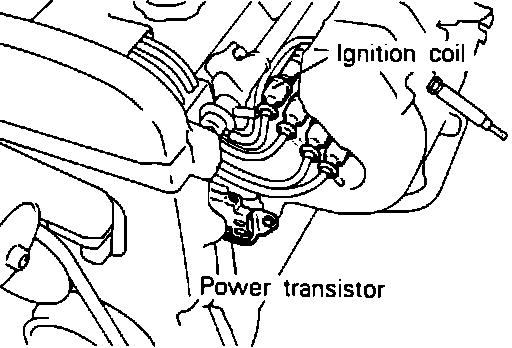

Ignition Coil And Power Transistor Location:
On the front of the cylinder head on the firewall side.
