With Cruise Control

Cruise Control Actuator Cover:

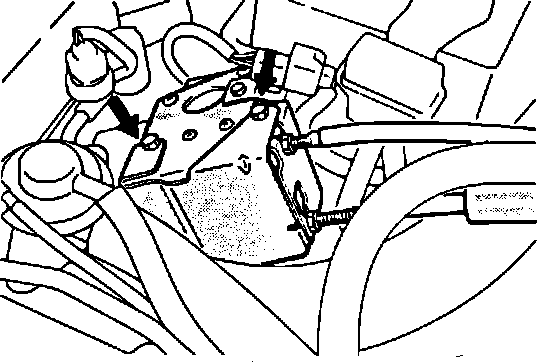

1. Remove the cruise control actuator cover.

Accelerator Cable Adjustment:

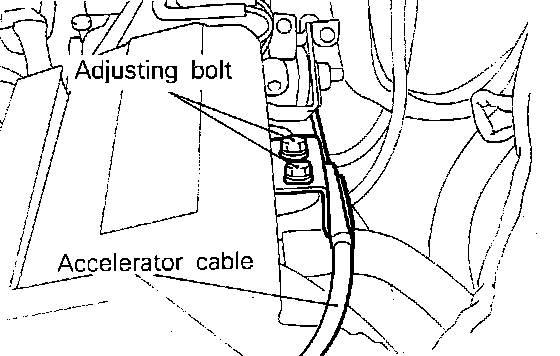

2. Loosen the adjusting bolts.

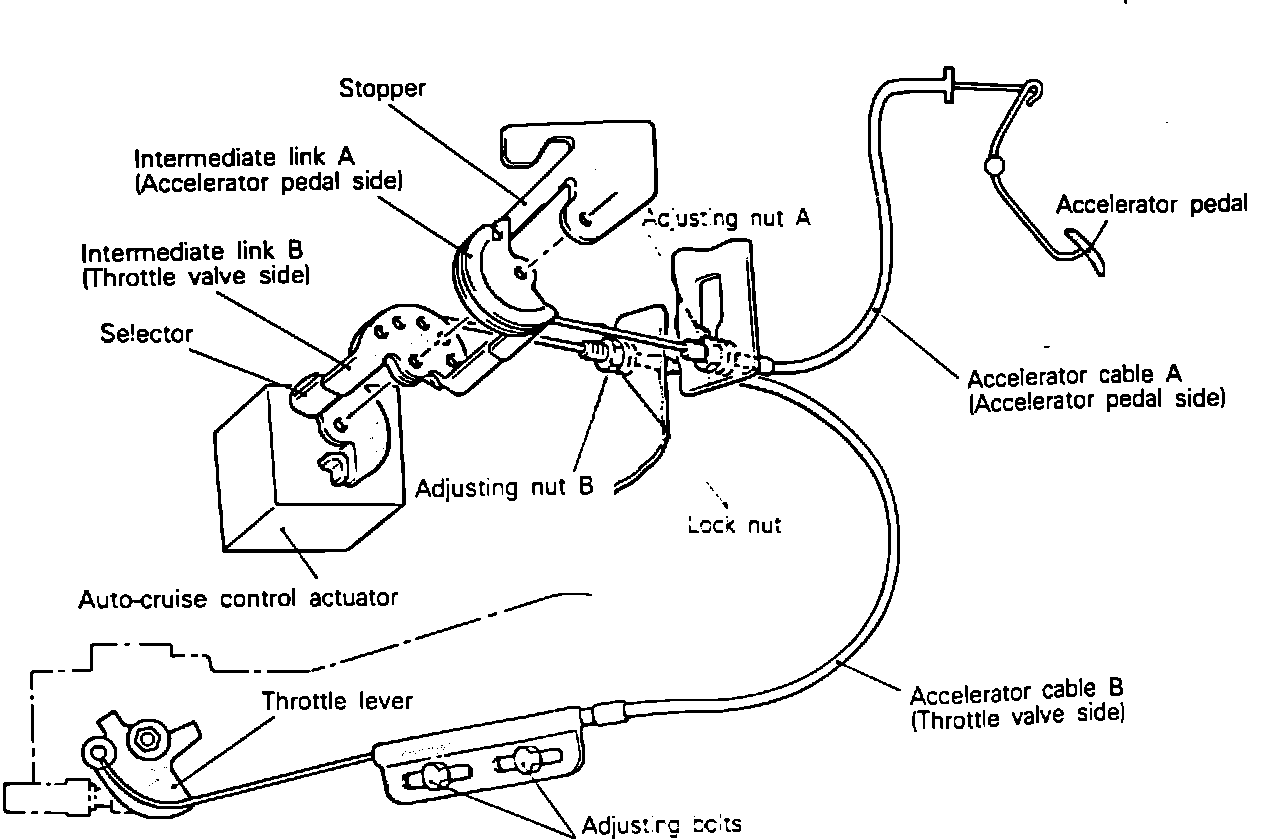

Accelerator Cable And Pedal Assembly:

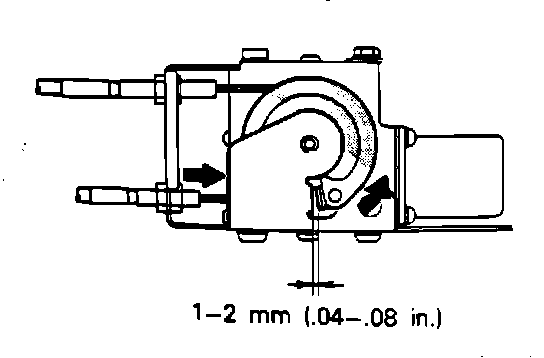

3. First, adjust accelerator cable B in and out movement (throttle valve side), using the adjustment bolts.

Clearance: 1 - 2 mm (0.04 - 0.08 in.)

4. Tighten the adjusting bolts.

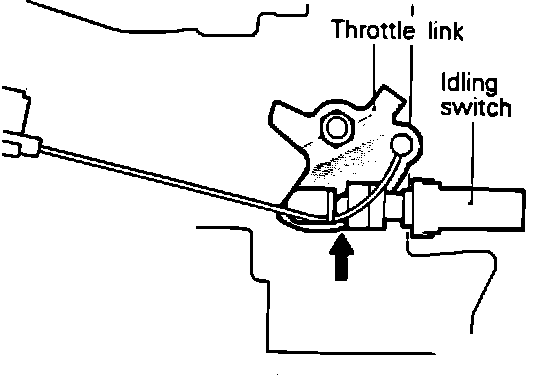

5. Confirm that the throttle lever stopper touches the idle position switch.

Cable "A" Adjustment Point:

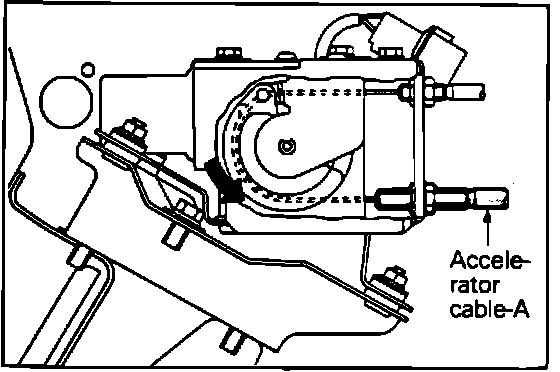

6. Next, adjust accelerator cable A (accelerator pedal side) at the adjustment point indicated. With the intermediate link A of the actuator held against the stopper, adjust the A cable to the standard clearance and tighten the locking nut.

Manual Transaxle: 0 - 1 mm (0. - 0.04 in.)
Automatic Transaxle: 2 - 3 mm (0.08 - 0.12 in.)





7. After adjustment recheck to ensure that the engine side cable has the specified clearance.
8. Confirm that the throttle valve fully opens and closes by operating the accelerator pedal.
