Rollover Valve: Description and Operation

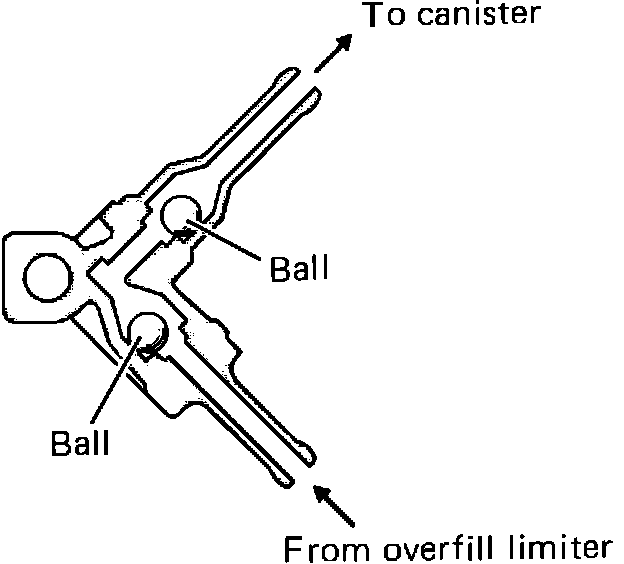

Fuel Check Valve:

PURPOSE/OPERATION
The fuel check valve prevents fuel leaks should the car suddenly roll over. Under normal conditions, the gasoline vapor passage in the valve is opened, but if roll-over occurs at least one of two balls closes the fuel passage preventing fuel leaks.
