Thermal Vacuum Valve: Testing and Inspection

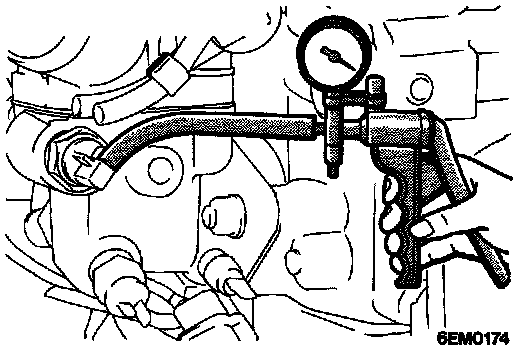

1. Disconnect the vacuum hoses from the thermal vacuum valve, and connect a hand vacuum pump to nipple of the thermal vacuum valve.

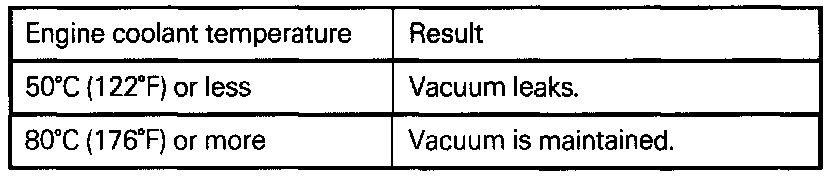

2. Apply a vacuum and check the air passage through the thermal vacuum valve.
