EGR Control Solenoid: Testing and Inspection

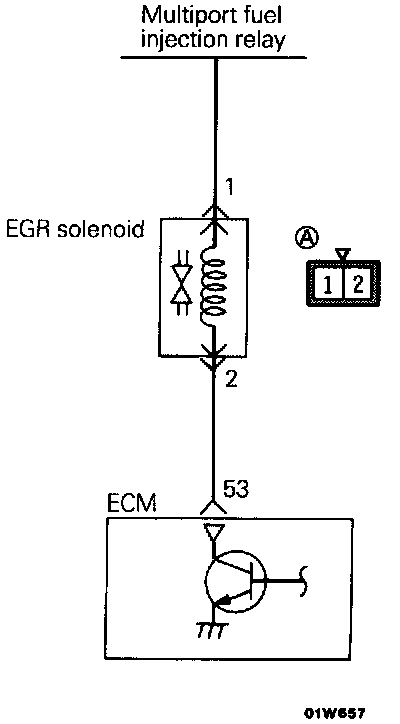

CIRCUIT DIAGRAM

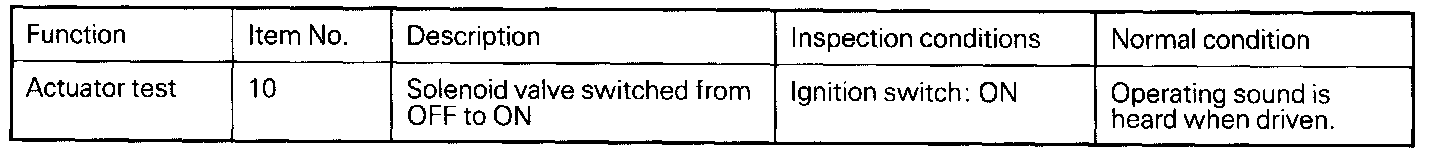

USING SCAN TOOL

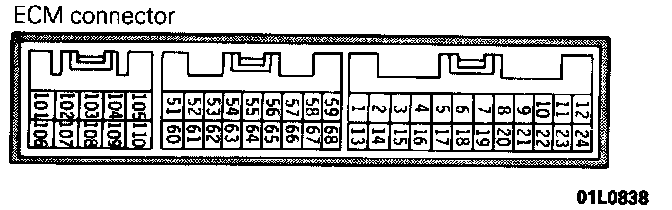

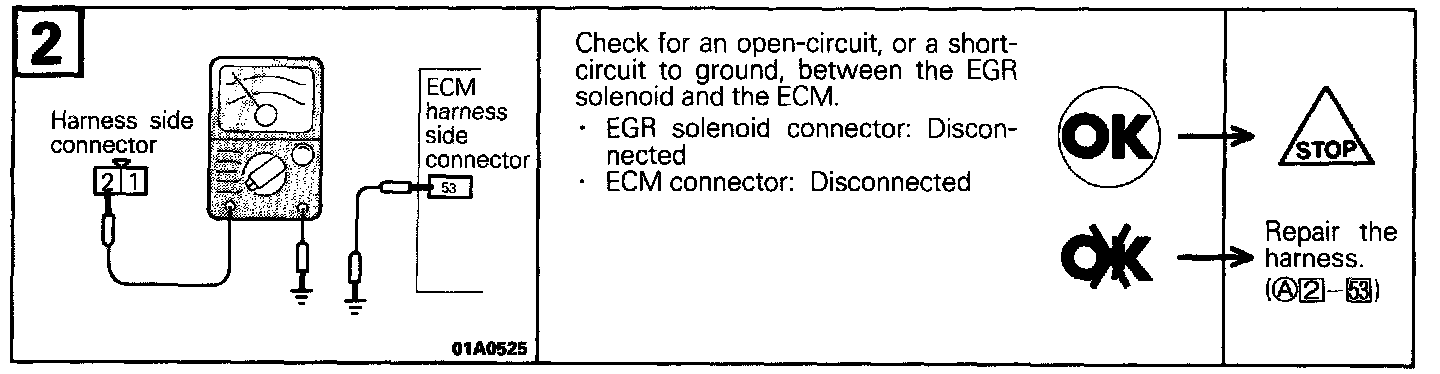

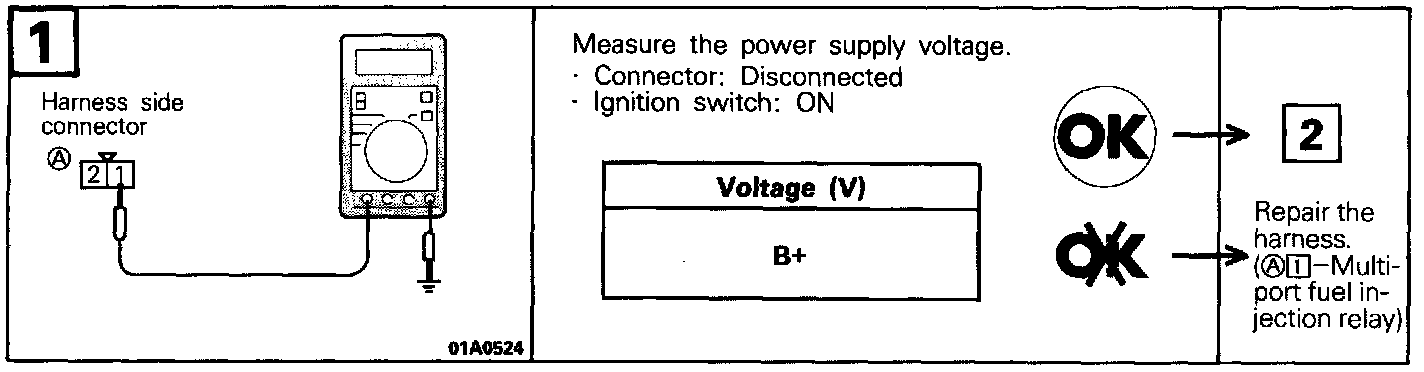

HARNESS INSPECTION PROCEDURES

TROUBLESHOOTING HINTS
In the event of an open circuit (wire broken) the EGR solenoid is turned off to lower EGR temperatures.
