Purge Control Valve (Turbo)

1. Remove the purge control valve.

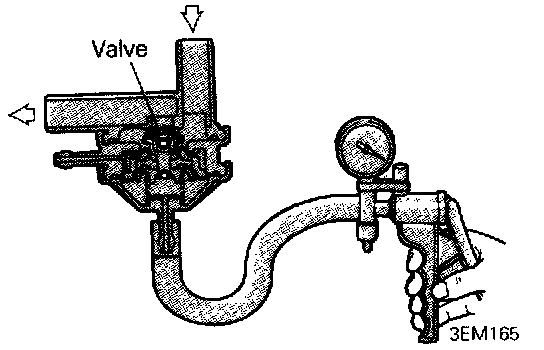

2. Connect a hand vacuum pump to the vacuum nipple of the purge control valve.
3. Apply a vacuum of 400 mmHg (15.7 in.Hg.) and check airtightness.

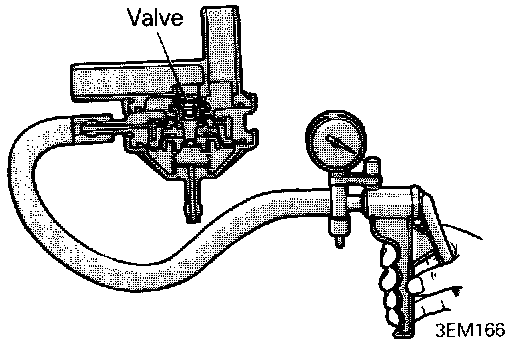

4. Blow in air lightly from the evaporative emission canister side nipple and check conditions as follows.





5. Connect a hand vacuum pump to the positive pressure nipple of the purge control valve.
6. Apply a vacuum of 400 mmHg (15.7 in.Hg.) and check airtightness.
