Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

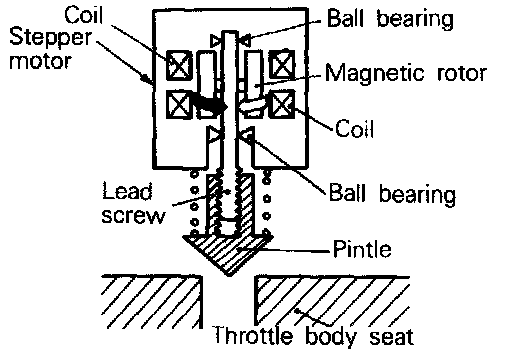

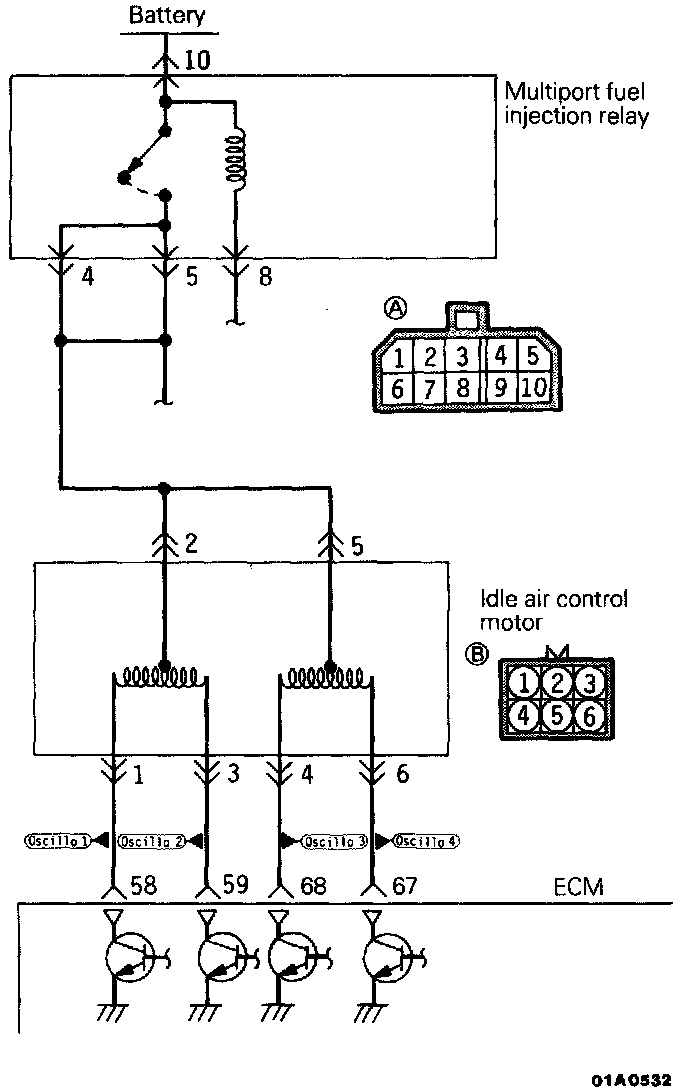

CIRCUIT DIAGRAM

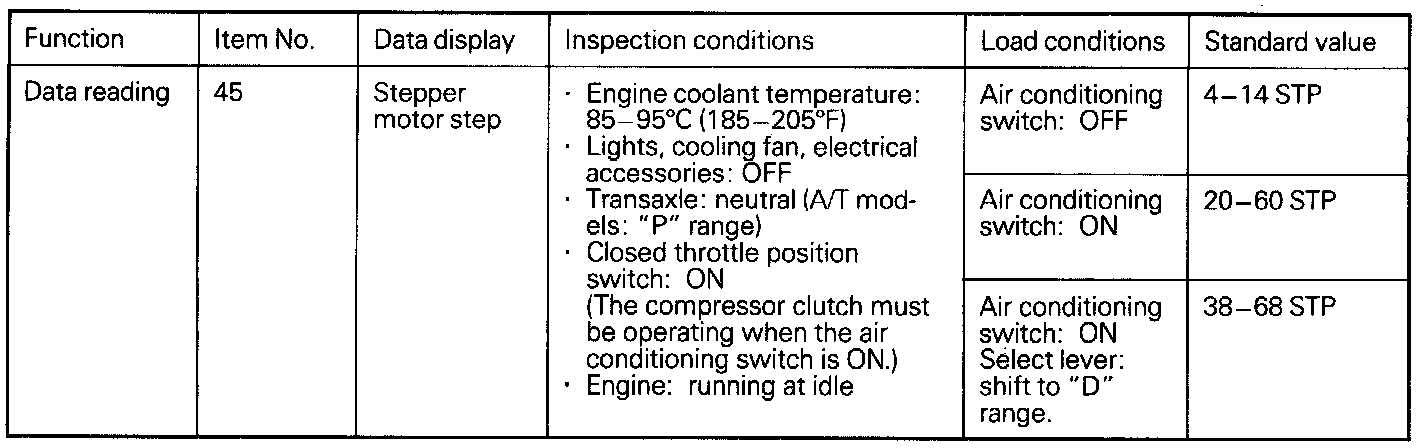

USING SCAN TOOL

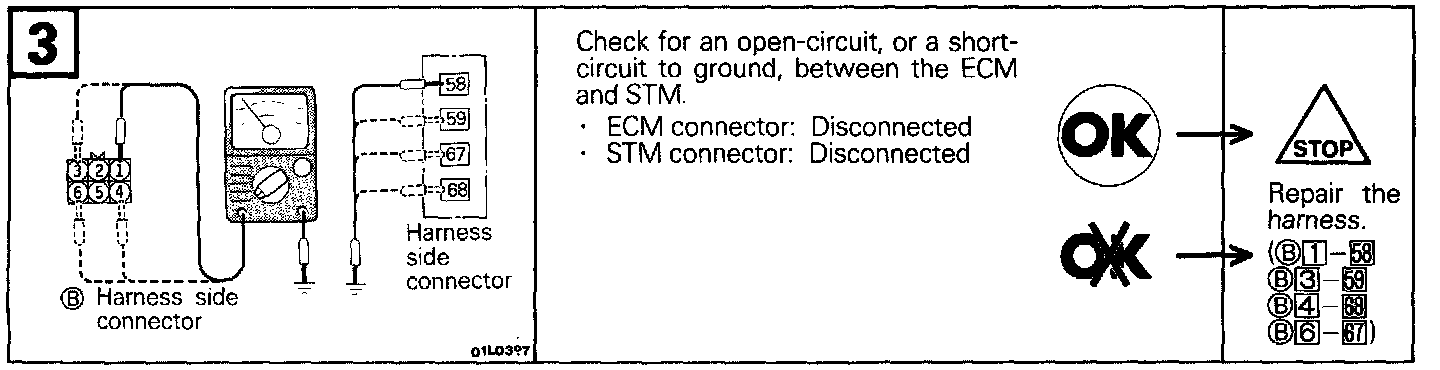

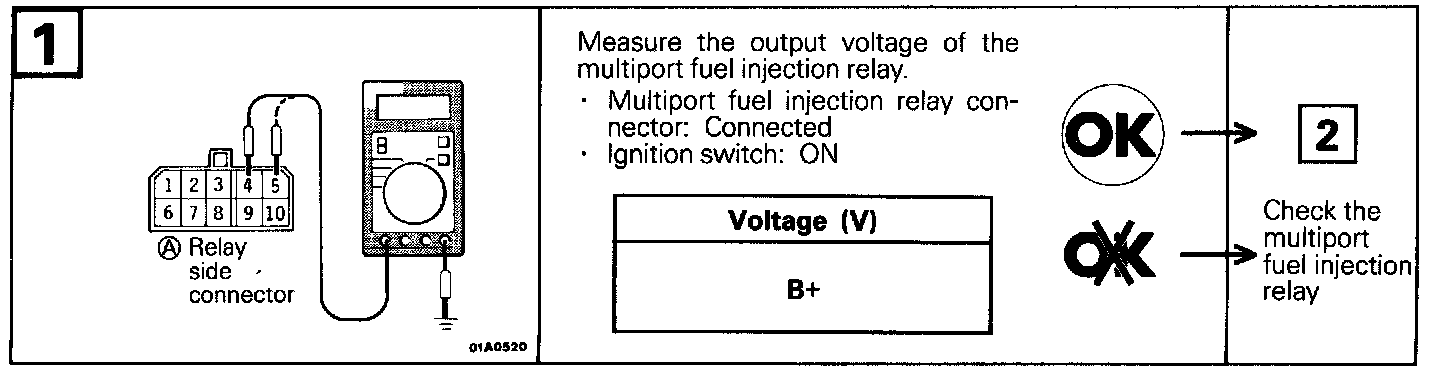

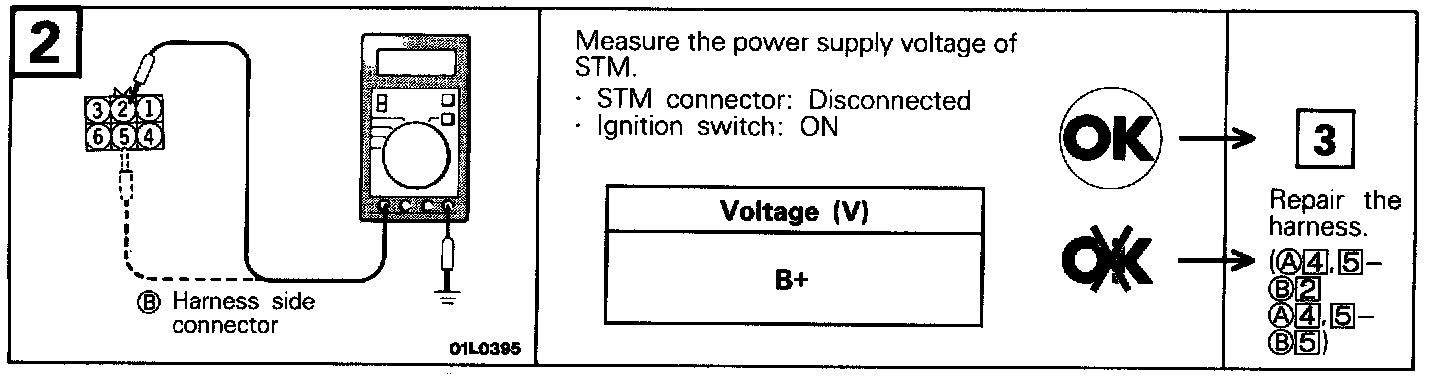

HARNESS INSPECTION PROCEDURES

USING OSCILLOSCOPE

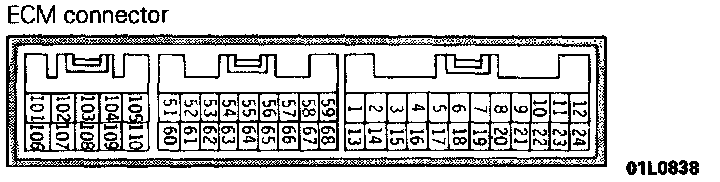

1. Connect the probe to each oscilloscope pick-up point as shown in the circuit diagram.
2. Start the engine.

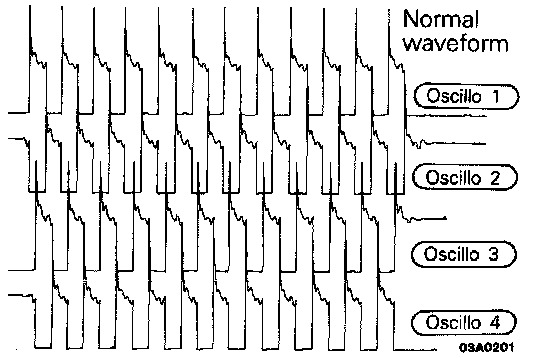

3. When the A/C switch is turned on, the idling speed increases to operate the IAC. Check the instantaneous waveform.

NOTE: Keep in mind that the waveform can be observed only when the IAC is in operation.

ACTUATOR INSPECTION

Checking the Operation Sound

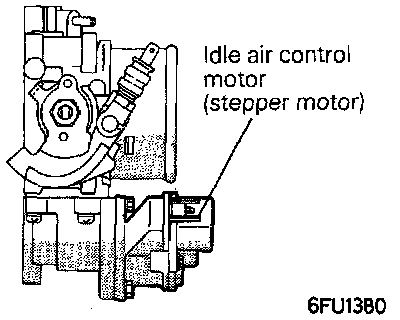

1. Check that the operation sound of the stepper motor can be heard after the ignition is switched ON (but without starting the engine).
2. If the operation sound cannot be heard, check the stepper motor's activation circuit. If the circuit is normal, it is probable that there is a malfunction of the stepper motor or of the engine control module.

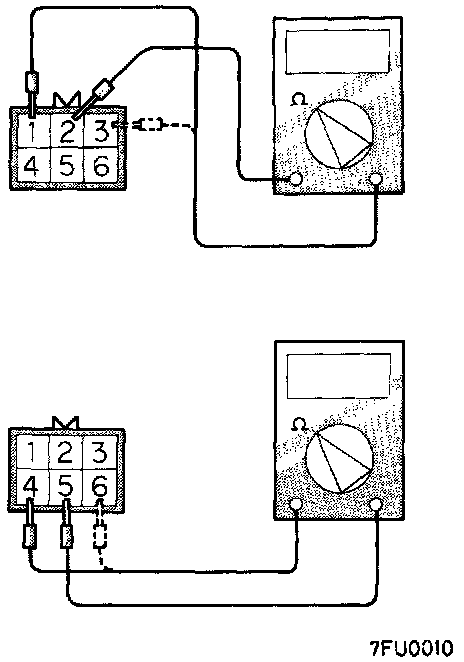

Checking The Coil Resistance
1. Disconnect the idle air control motor connector and connect the special tool (test harness).





2. Measure the resistance between terminal (2) (white clip of the special tool) and either terminal (1) (red clip) or terminal (3) (blue clip) of the connector at the idle air control motor side.

Standard value: 28-33 Ohms at 20°C (68°F)

3. Measure the resistance between terminal (5) (green clip of the special tool) and either terminal (6) (yellow clip) or terminal (4) (black clip) of the connector at the idle air control motor side.

Standard value: 28-33 Ohms at 20°C (68°F)

Operation Check





1. Hemove the throttle body.
2. Remove the stepper motor.

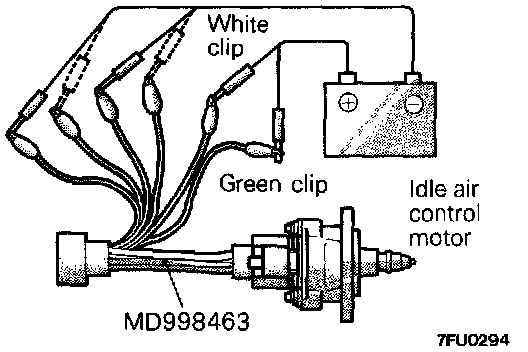

3. Connect the special tool (test harness) to the idle air control motor connector.
4. Connect the positive (+) terminal of a power supply (approx. 6 Volts) to the white clip and the green clip.

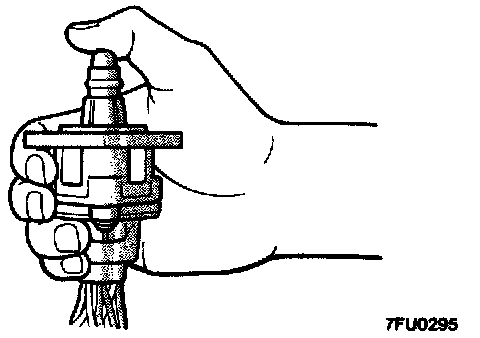

5. With the idle air control motor as shown in the illustration, connect the negative (-) terminal of the power supply to each clip as described in the following steps, and check whether or not a vibrating feeling (a feeling of very slight vibration of the stepper motor) is generated as a result of the activation of the stepper motor.
- Connect the negative (-) terminal of the power supply to the red and black clip.
- Connect the negative (-) terminal of the power supply to the blue and black clip.
- Connect the negative (-) terminal of the power supply to the blue and yellow clip.
- Connect the negative (-) terminal of the power supply to the red and yellow clip.
- Connect the negative (-) terminal of the power supply to the red and black clip.
- Repeat the tests in sequence from (5) to (1).
6. If, as a result of these tests, vibration is detected, the stepper motor can be considered to be normal.
