Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Application and ID
>>
Engine Model Stamping
Engine Model Stamping
1.

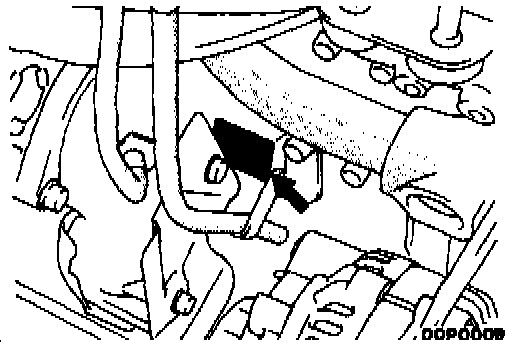

The engine model number is stamped at the front side on the top edge of the cylinder block as shown.
2.

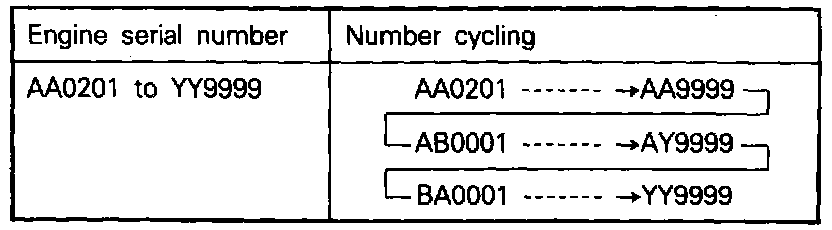

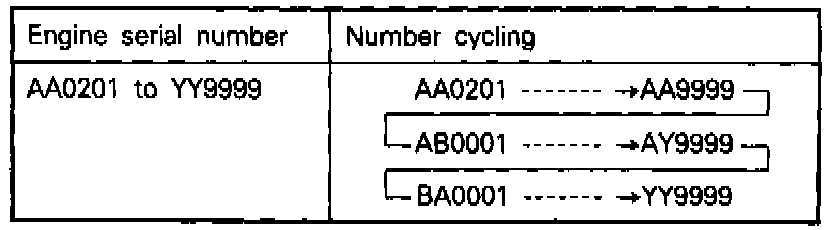

The engine serial number is stamped near the engine model number, and the serial number cycles.
