Main Fusible Link (Battery's Positive Terminal)

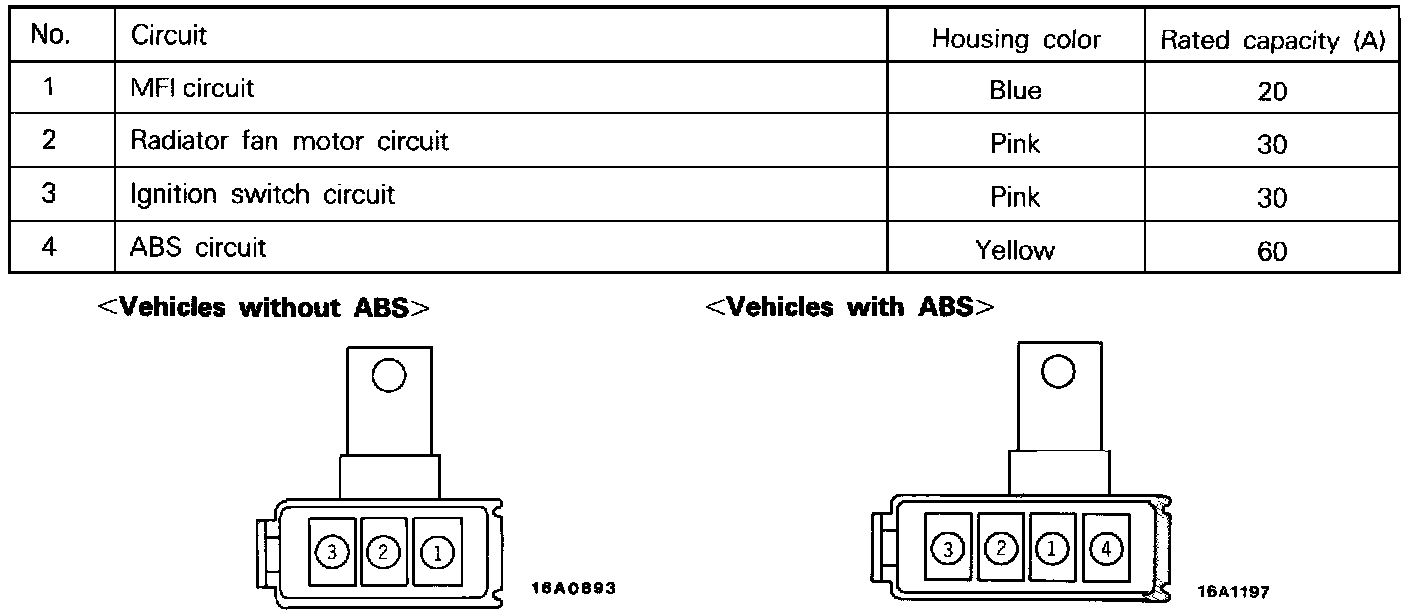

Main Fusible Link - Direct Connection To Battery's Positive + Terminal.:
