Lighting Switch

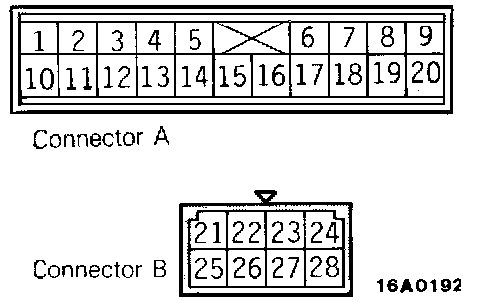

Column Lighting Switch:




Lightning Switch:

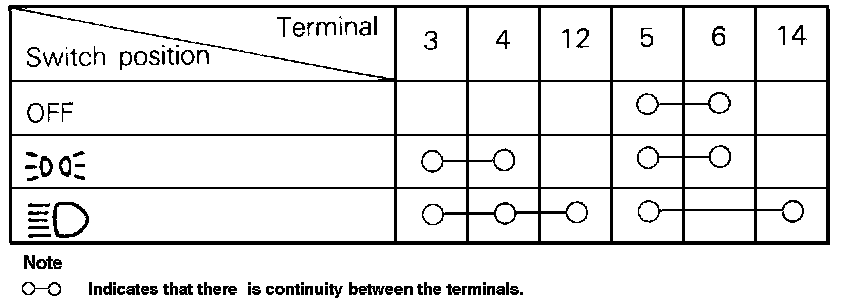

Operate the switch and check the continuity between the terminals.
