Lighting and Horns: Service and Repair

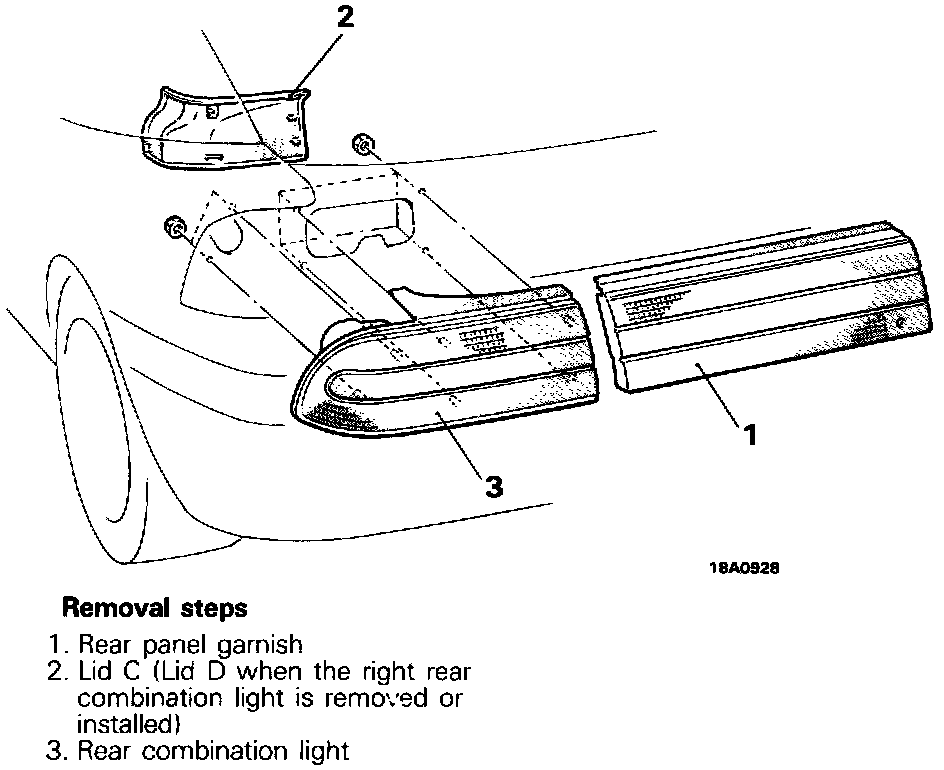

Rear Combination Light - Removal And Installation:

REMOVE
1. Rear panel garnish
2. Lid C (Lid D when the right rear combination light is removed or installed)
3. Rear combination light

INSTALL
1. Rear combination light
2. Lid C (Lid D when the right rear combination light is removed or installed)
3. Rear panel garnish

Removal Of Rear Panel Garnish:

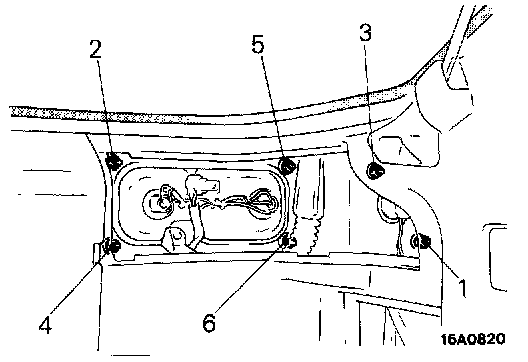

Mount the rear combination light by tightening the nuts in the sequence illustrated
