Turn Signal Switch: Testing and Inspection

Turn Signal Switch:

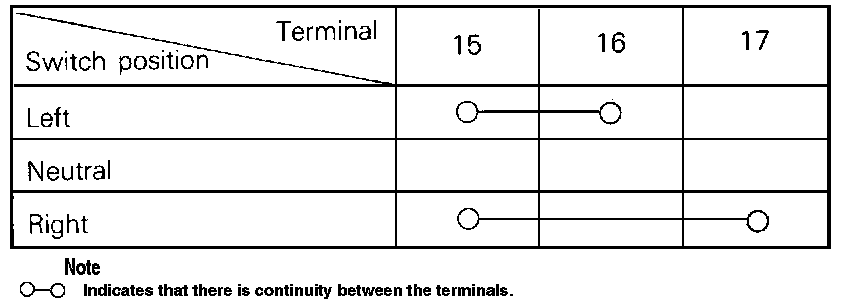

Operate the switch and check the continuity between the terminals.
