Home >> Mitsubishi >> 1994 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Service and Repair

Headlamp: Service and Repair

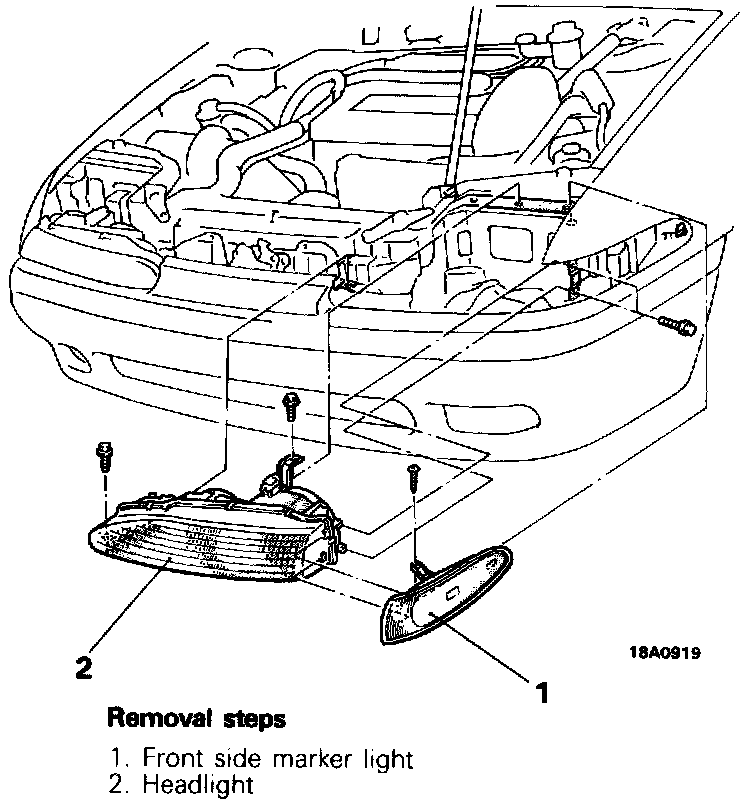

Head Light And Front Side Marker Light - Removal And Installation:





REMOVE
1. Front side marker light
2. Headlight

INSTALL
1. Headlight
2. Front side markerlight
