Headlamp Bulb: Service and Repair

Head Light Bulb Replacement:

1. Pull out the socket cover.

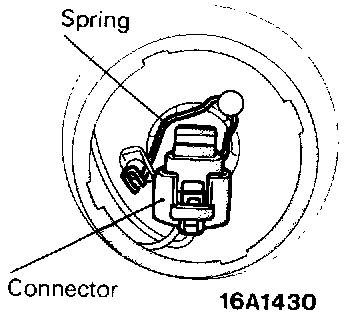

2. Remove the valve mounting spring, and pull the valve out toward you together with the connector.
3. Disconnect the bulb from the connector.

CAUTION:

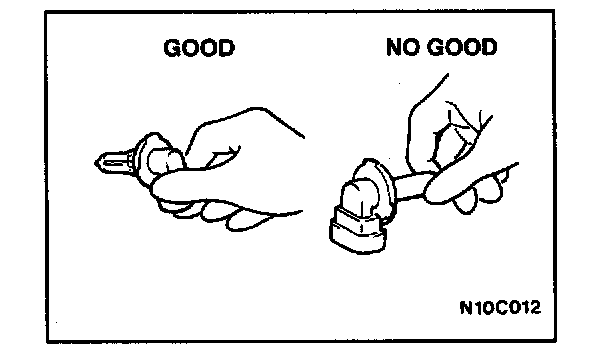

a. Never hold the halogen light bulb with a bare hand, dirty glove, etc.
b. If the glass surface is dirty, be sure to clean it with alcohol, paint thinner, etc., and install it after drying it thoroughly.

Head Light Bulb Replacement:

4. Be sure to attach the cap.

NOTE: Be sure to install the cap securely because, if it is not, an insecure Installation could cause such problems as clouding of the lens, or Intrusion of moisture to inside the light unit.
