Headlight Aiming Preparation

Headlight Aim Preparation:

Headlight Aiming Preparation:

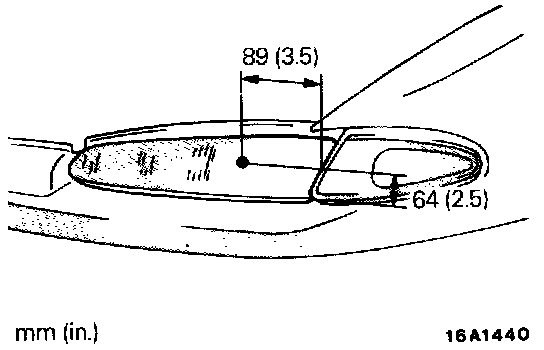

1. Measure the center of the headlight bulb as shown in the illustration.

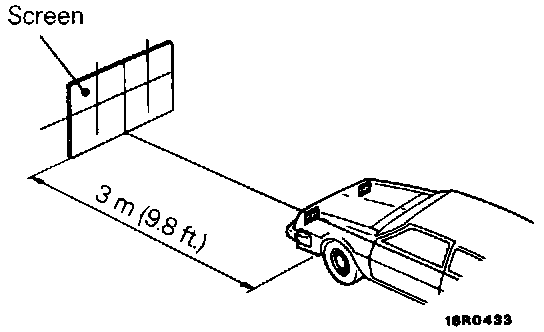

2. Place vehicle on a known level floor 3 m (9.8 feet) from aiming screen or light colored wall. Four lines of adhesive tape or like are required on screen or wall:
a. Position a vertical tape so that it is aligned with the vehicle center line.
b. Position a horizontal tape with reference to center line of headlight bulb.
c. Position a vertical tape on the screen with reference to the center line of each of headlights bulb.
