Vehicles Without Rear Air Spoiler

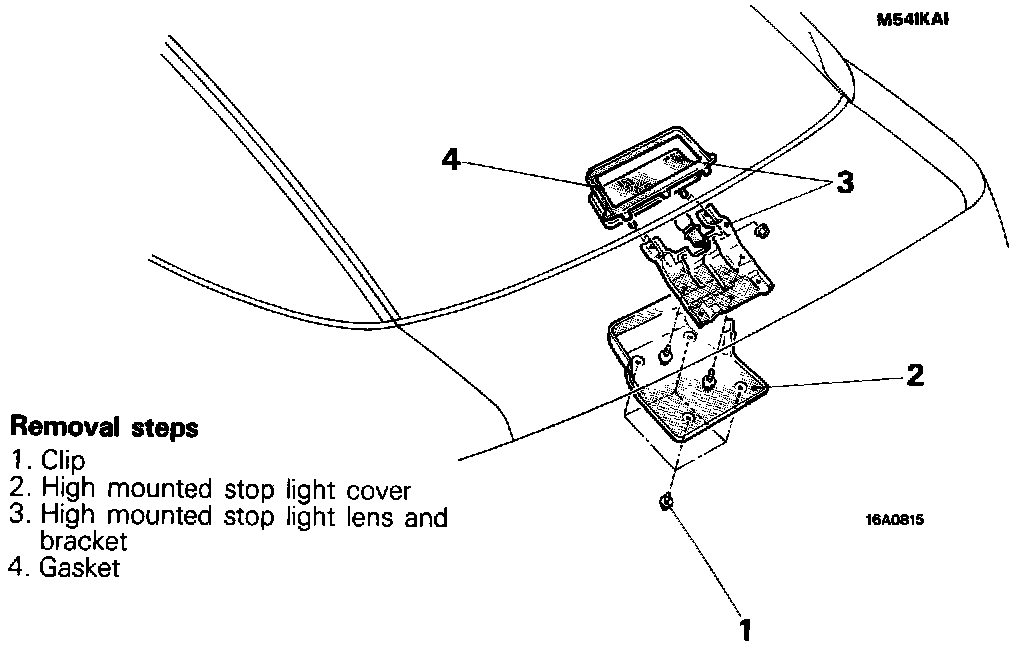

High Mounted Stop Light - Removal And Installation:





REMOVE
1. Clip
2. High mounted stop light cover
3. High mounted stop light lens and bracket
4. Gasket

INSTALL
1. Gasket
2. High mounted stop light lens and bracket
3. High mounted stop light cover
4. Clip
