Vehicles With Rear Air Spoiler

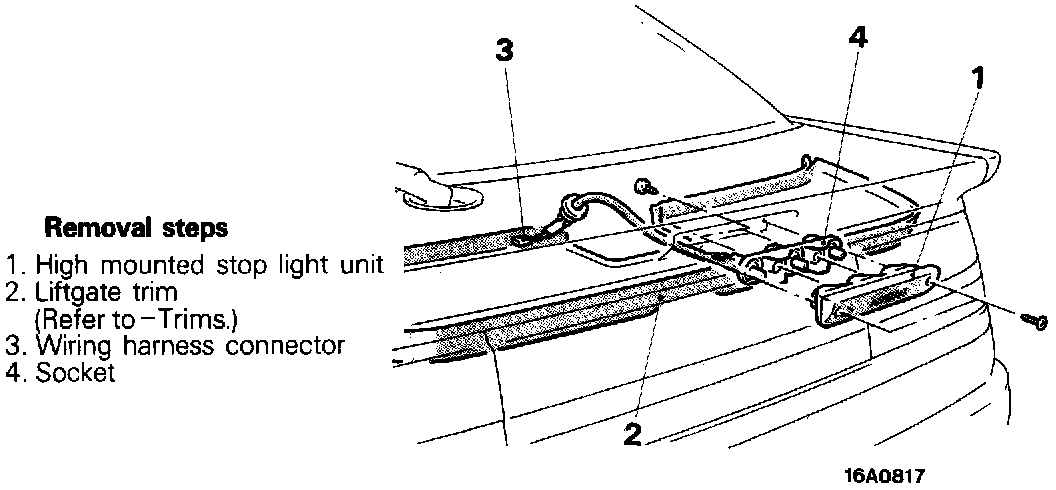

High Mounted Stop Light - Removal And Installation:





REMOVE
1. High mounted stop light unit
2. Liftgate trim
3. Wiring harness connector
4. Socket

INSTALL
1. Socket
2. Wiring harness connector
3. Liftgate trim
4. High mounted stop light unit
