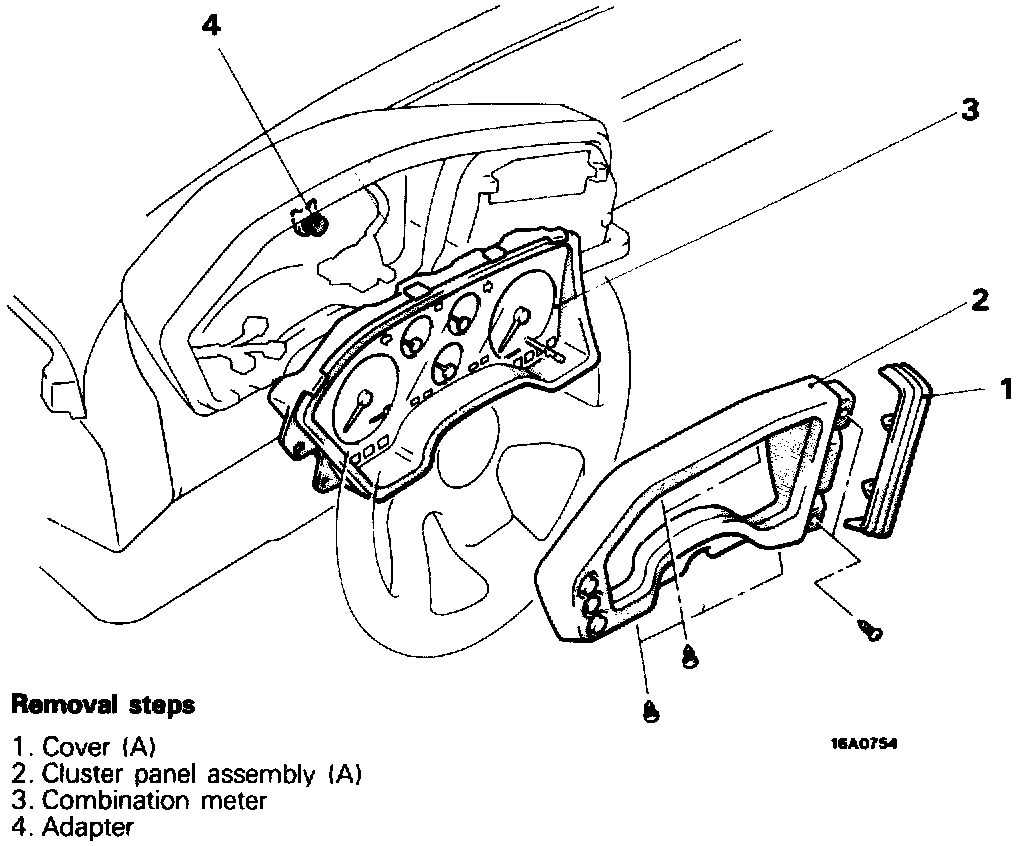

Combination Meter Removal and Installation

Meters And Gauges - Removal And Installation:

REMOVE
1. Cover (A)
2. Cluster panel assembly (A)
3. Combination meter
4. Adapter

INSTALL
1. Adapter
2. Combination meter
3. Cluster panel assembly (A)
4. Cover (A)
