Cigarette Lighter: Service and Repair

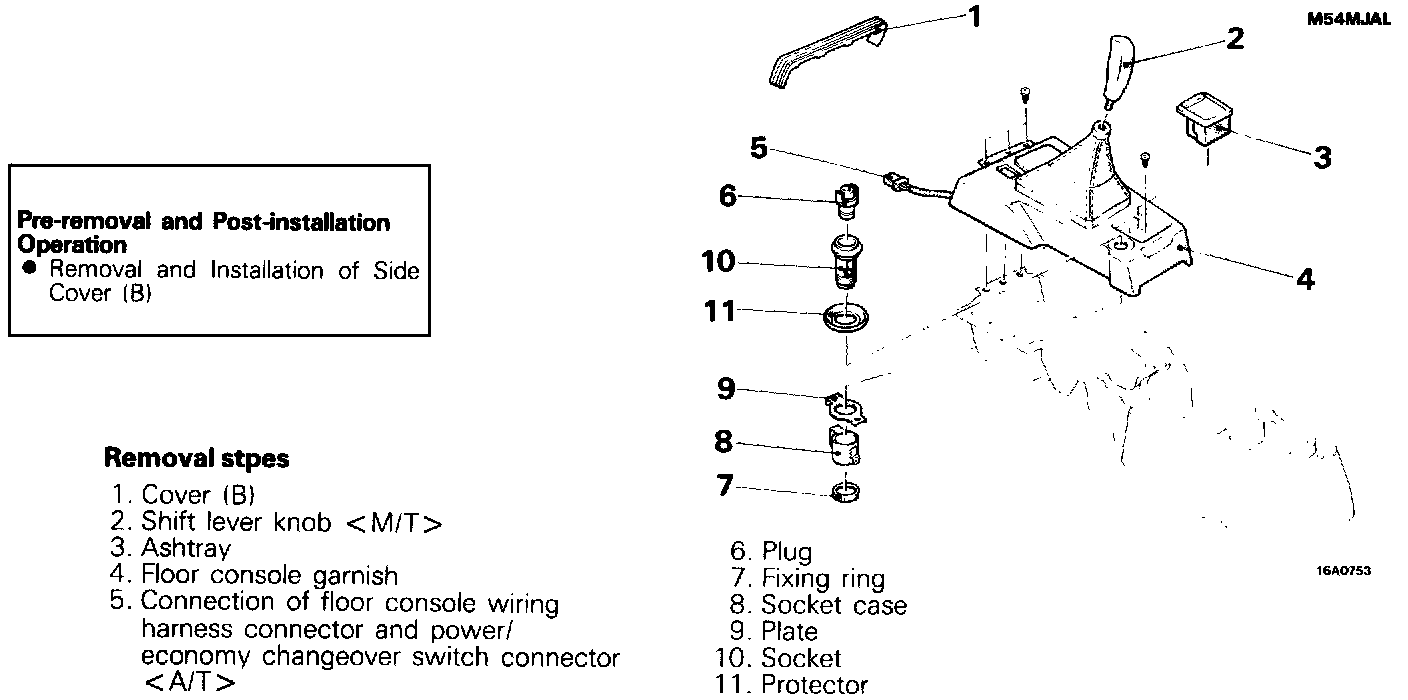

Cigarette Lighter - Removal And Installation:

REMOVE
- Side cover
1. Cover (B)
2. Shift lever knob
3. Ashtray
4. Floor console garnish
5. Connector of floor console wiring harness connector and power/economy change over switch connector
6. Plug
7. Fixing ring
8. Socket case
9. Plate
10. Socket
11. Protector

INSTALL
1. Protector
2. Socket
3. Plate
4. Socket case
5. Fixing ring
6. Plug
7. Connector of floor console wiring harness connector and power/economy changeover switch connector
8. Floor console garnish
9. Ashtray
10. Shift lever knob
11. Cover (B)
- Side cover
