Condenser Fan Resistor: Testing and Inspection

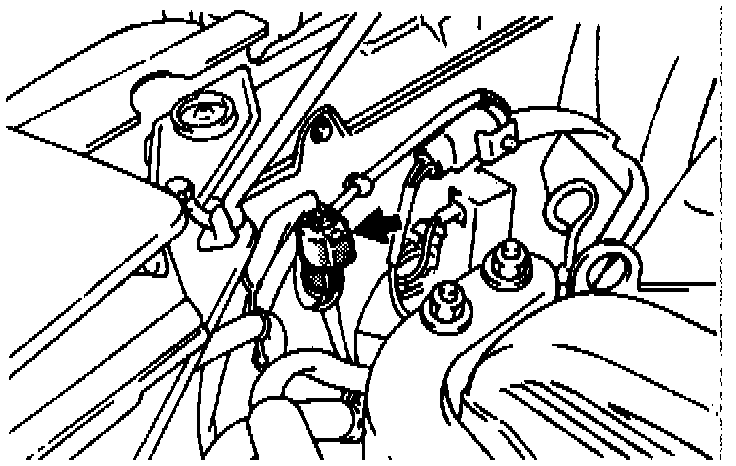

Fig. 35 Condenser Fan Motor & Resister Connector Location:

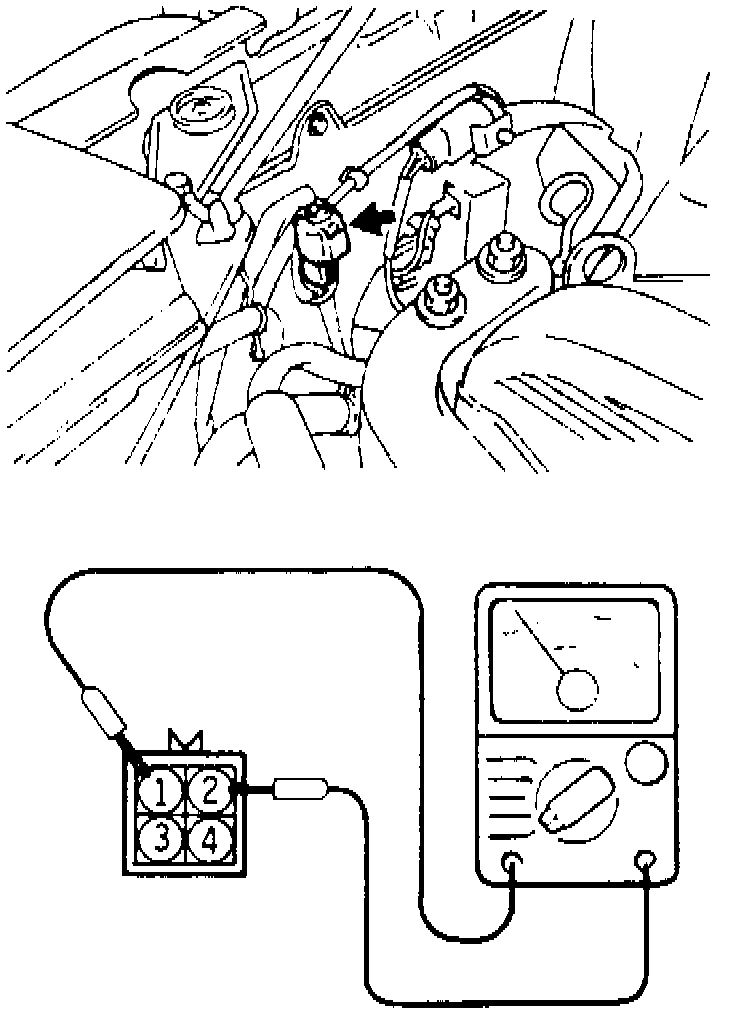

Fig. 36 Condenser Fan Motor Resistor Inspection:

1. Disconnect condenser fan motor resistor connector, Fig. 35, then connect a suitable ohmmeter to connector terminals, Fig. 36.
2. If resistance is 0.26-0.32 ohms, resistor is satisfactory; if not, a new resistor should be installed.
