Blower Motor: Service and Repair

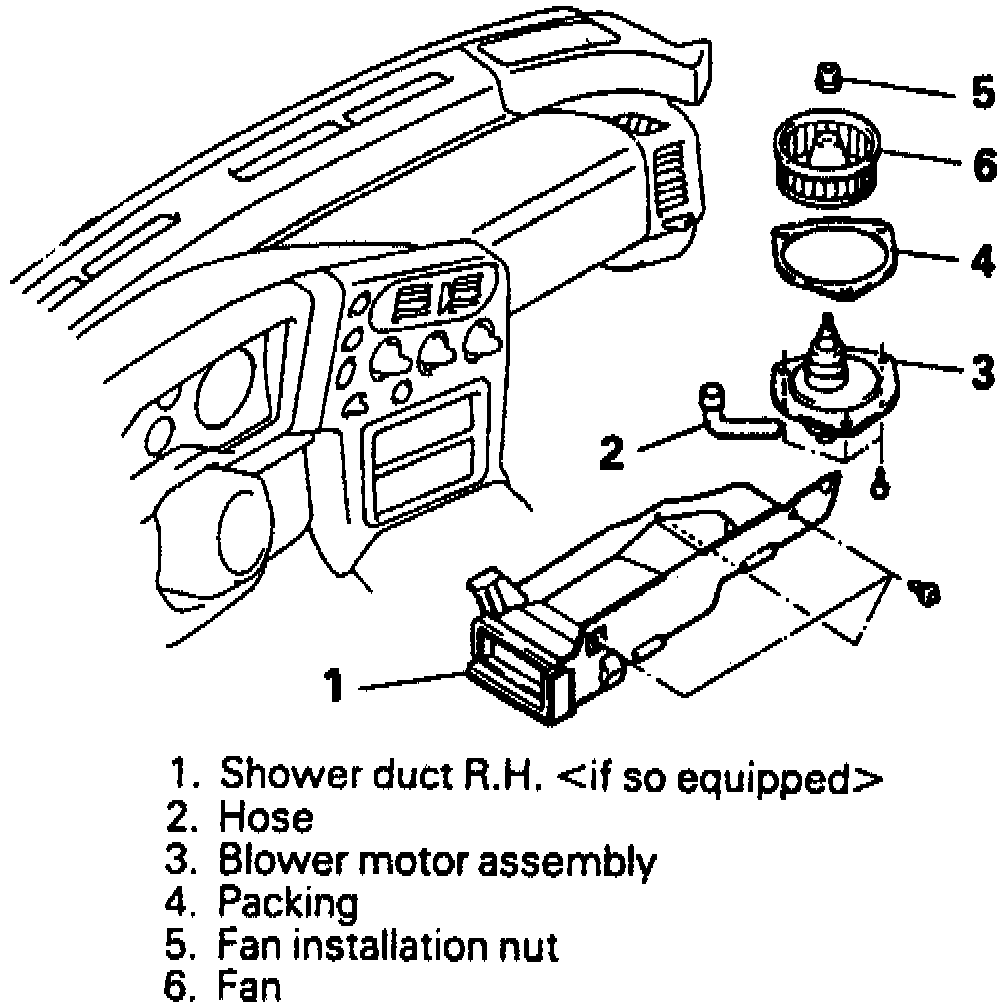

Fig. 27 Blower Motor Replacement:

Remove blower motor in numbered sequence, Fig. 27, noting the following:
1. Clean blower case before installation.
2. Replace packing if cracked.
3. Reverse procedure to install.
