Oil Pan: Testing and Inspection

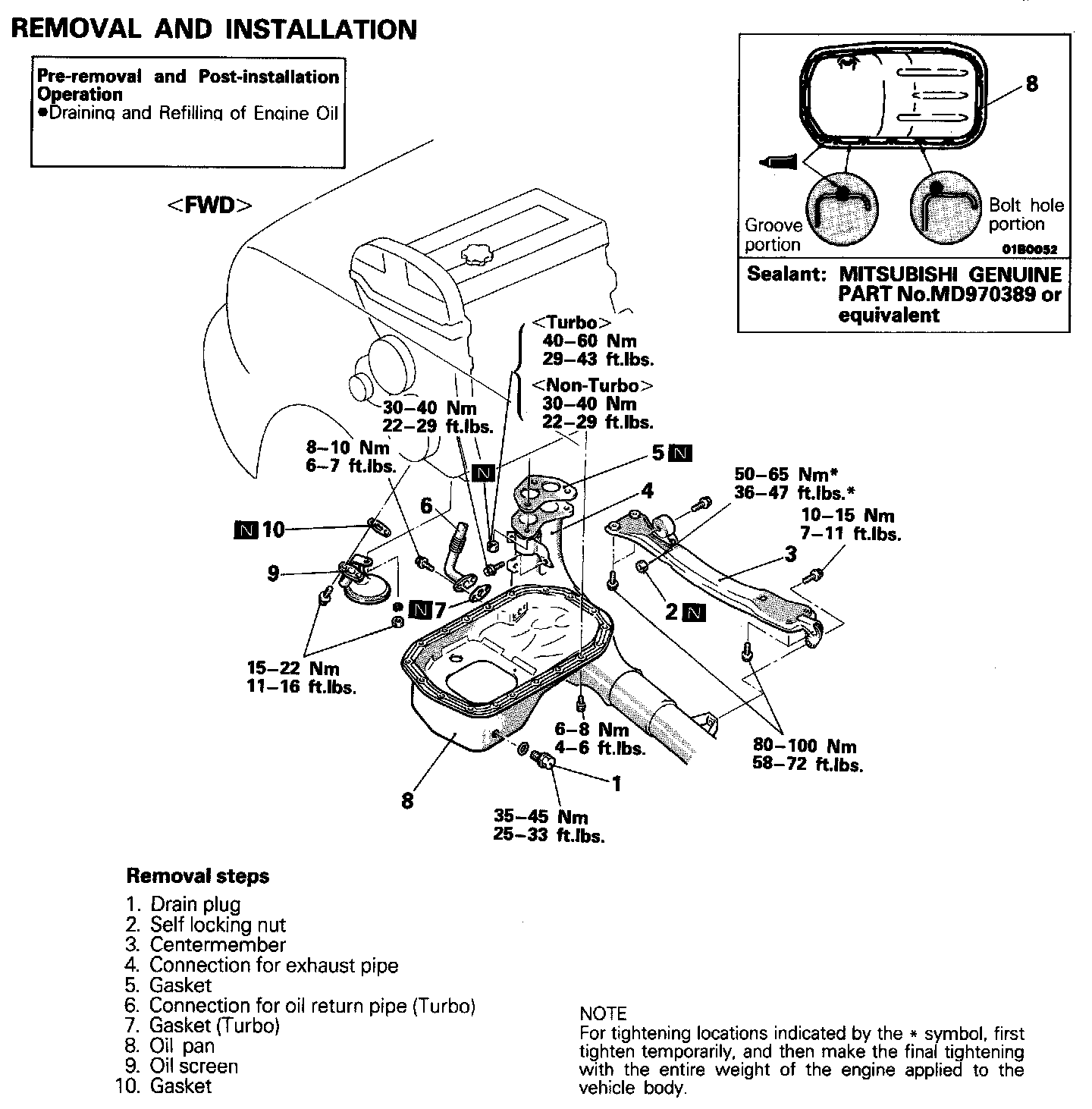

FRONT WHEEL DRIVE





INSPECTION
^ Check the oil pan for damage and cracks. Replace if faulty.
^ Check the oil screen for clogging; damage and cracks. Replace if faulty.

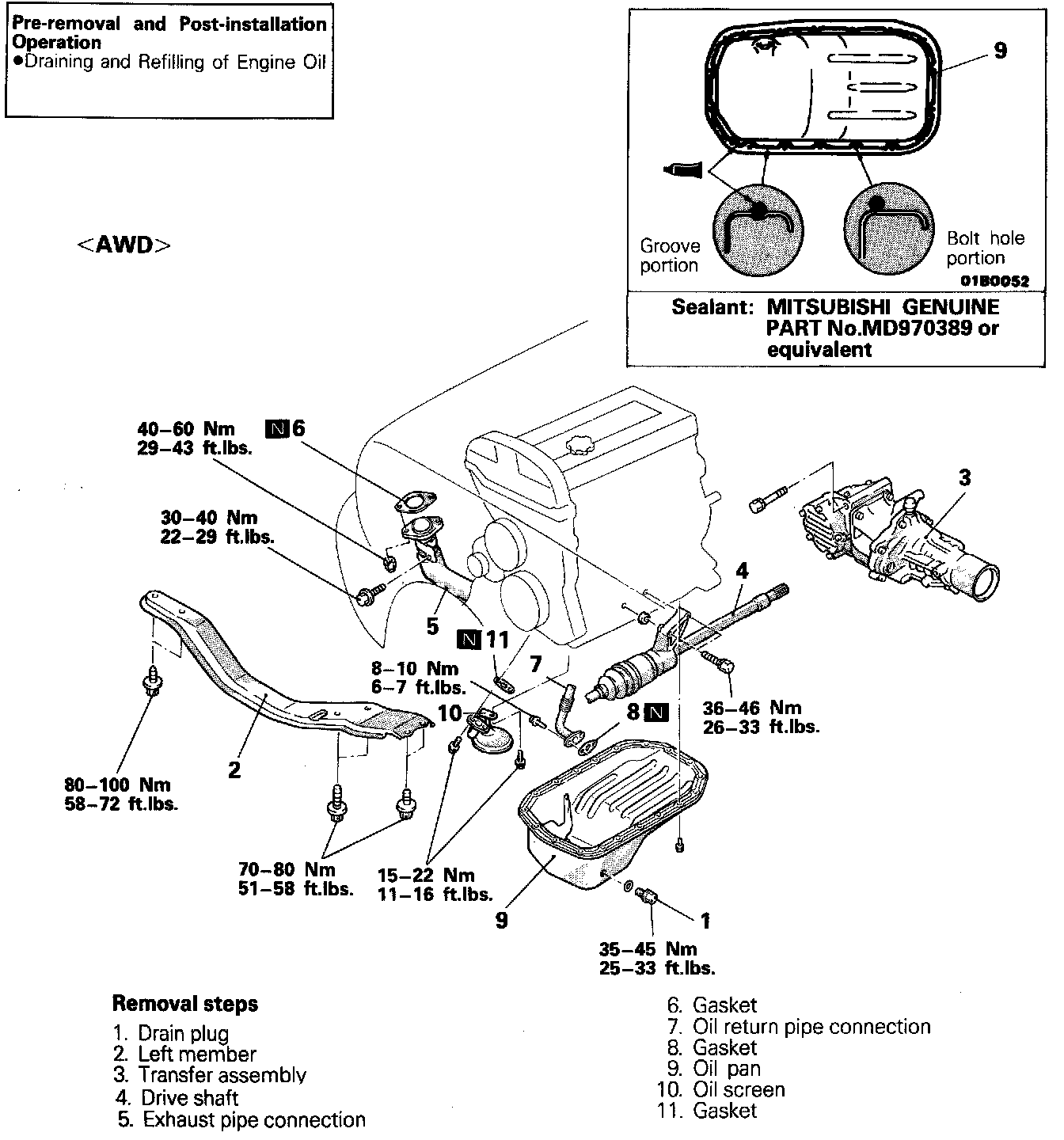

ALL WHEEL DRIVE





INSPECTION

^ Check the oil pan for damage and cracks. Replace if faulty.
^ Check the oil screen for clogging; damage and cracks. Replace if faulty.
