Except Roll Stopper

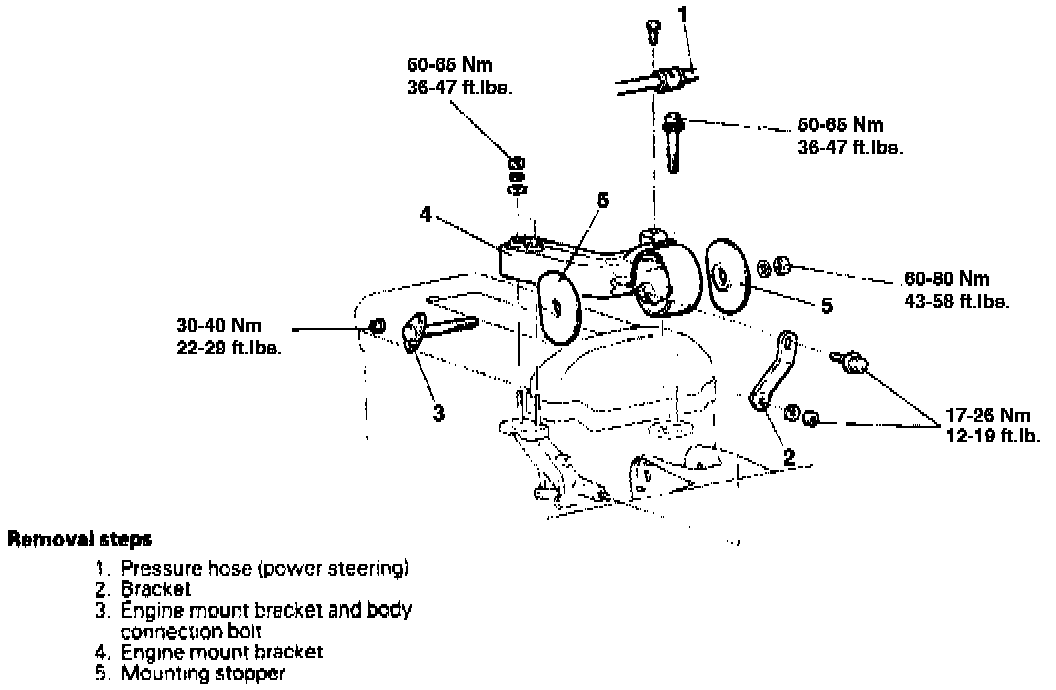

Fig. 2 Engine Mount Assembly:

Remove engine mount in numbered sequence, Fig. 2, noting the following:
1. Slightly raise and support engine, removing weight of engine from mount.
2. Inspect insulators for damage or cracks and replace as necessary.
3. Check brackets and replace if deformed or damaged.
4. When installing mounting stoppers, ensure arrow on stopper faces center of engine.
5. Reverse procedure to install.
