Installation

1. Reverse removal procedures to install.

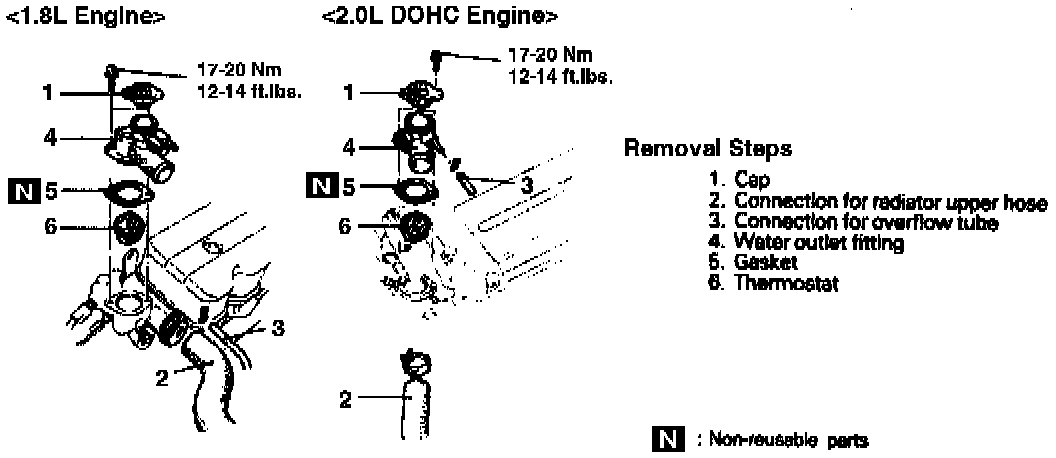

Fig. 84 Thermostat Replacement:

2. Install thermostat so that the flange seats in recess of intake manifold and thermostat case, Fig. 84.
3. Install retaining bolts. Torque to 12-14 ft. lbs.
4. Ensure drain is closed, then refill coolant. Replace cap, then start engine until warm. Check for leaks, then recheck coolant and fill if necessary.
