Radiator Cooling Fan Motor: Service and Repair

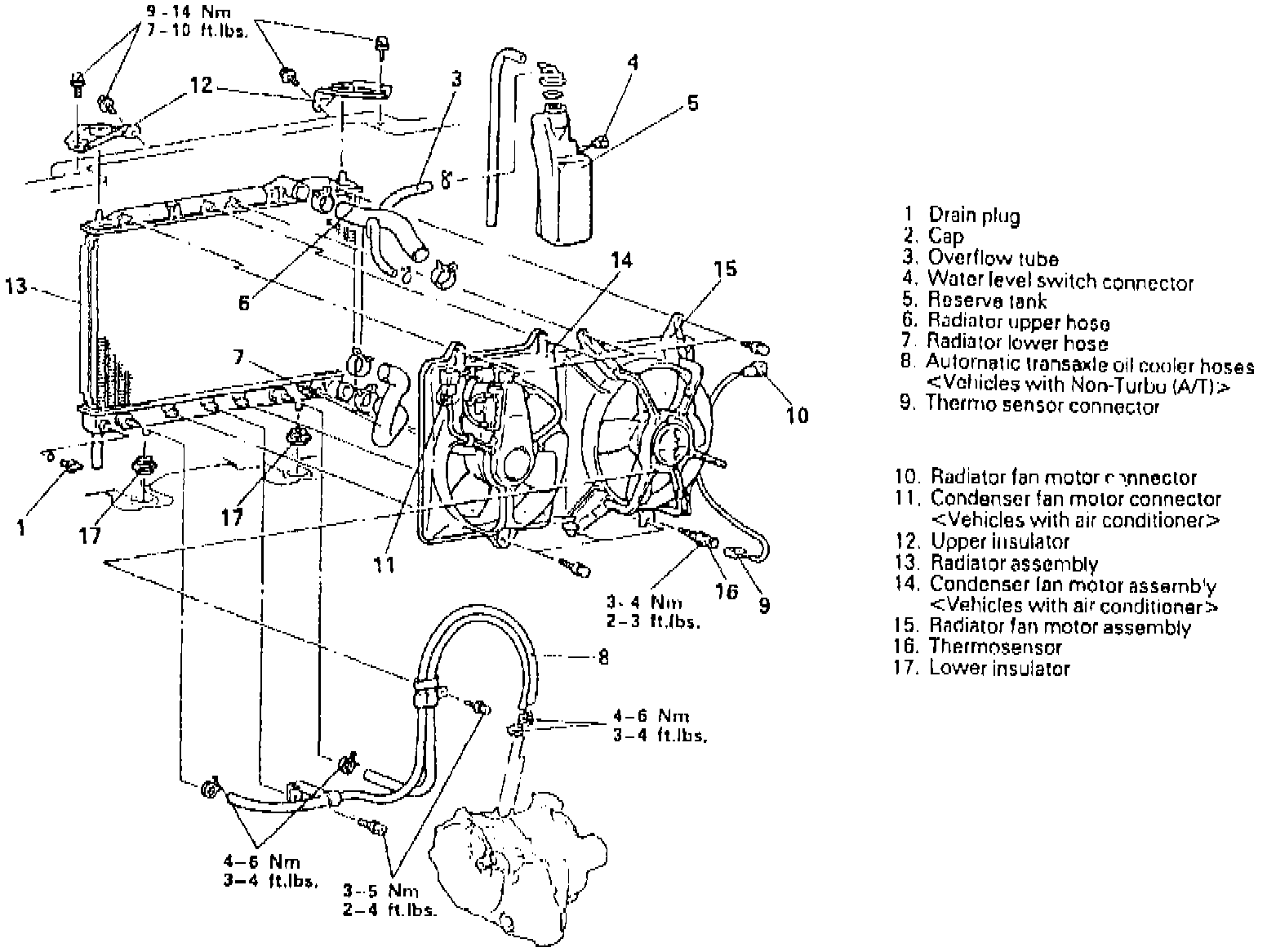

Fig. 41 Cooling Fan System Component Replacement:





Refer to Fig. 41 for component replacement.
