Ground Locations 1 - 13
Ground Locations 1 - 13

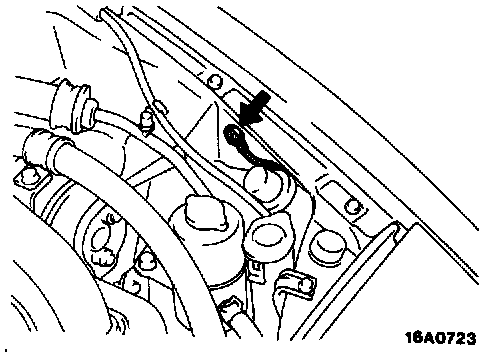

Location 1:

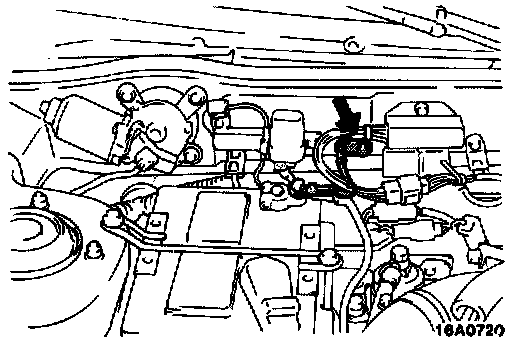

Location 2:

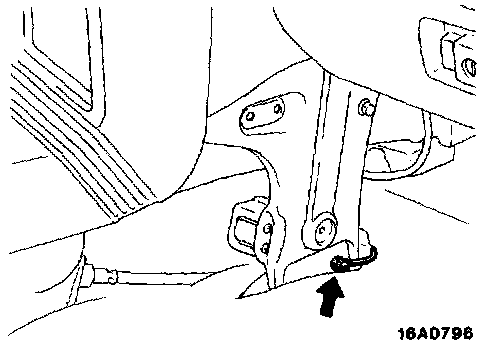

Location 3:

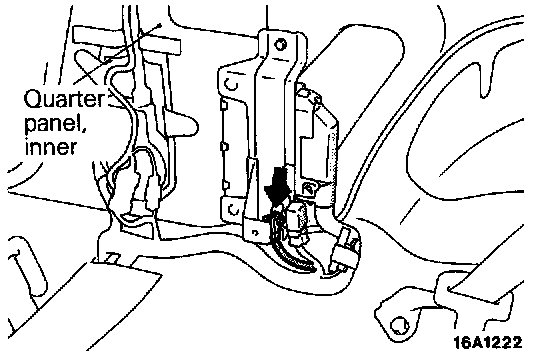

Location 4:

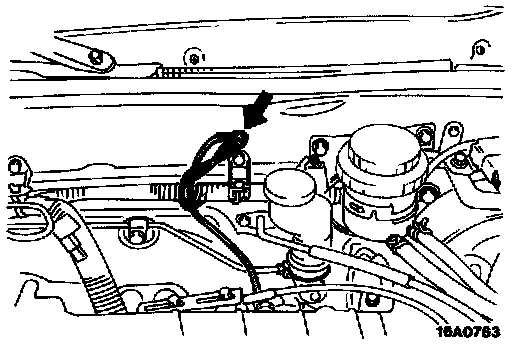

Location 5:

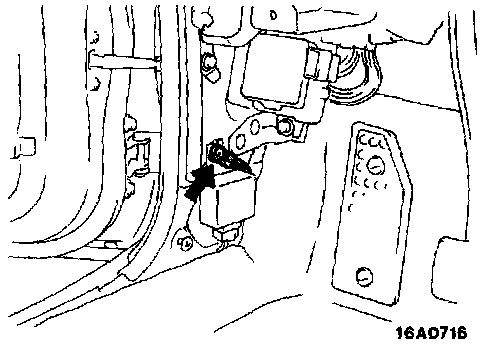

Location 6:

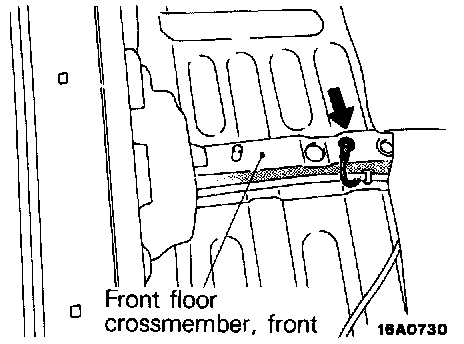

Location 7:

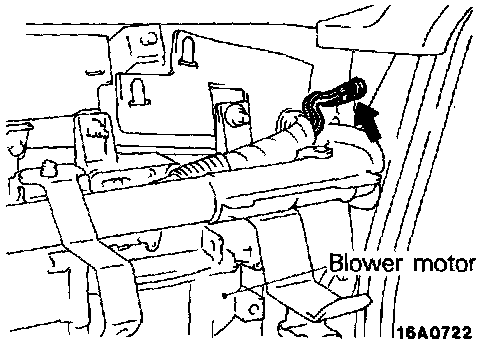

Location 8:
Location 9:
Location 10:
Location 11:
Location 12:
Location 13:
