Brake Lamp

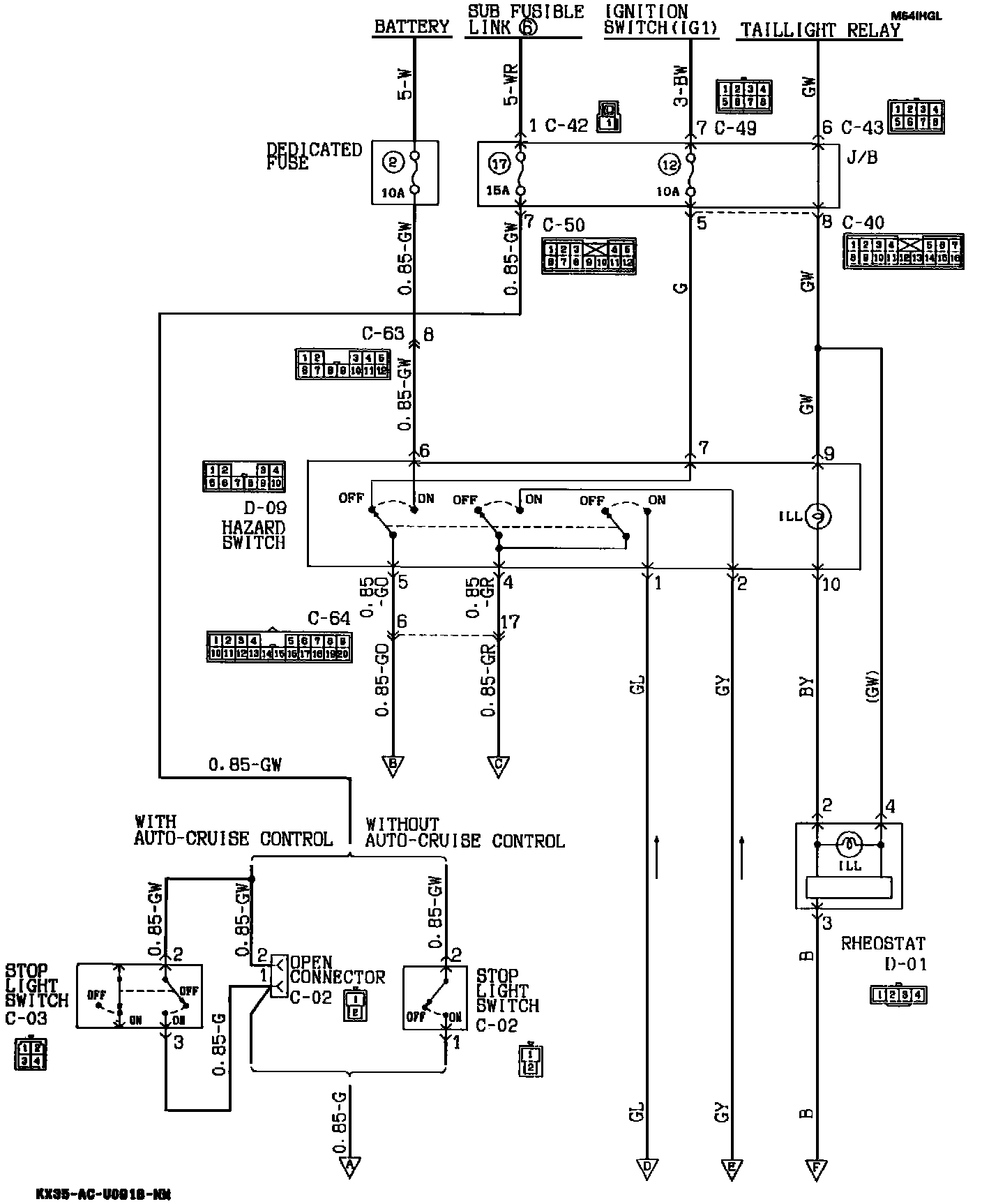

Turn-Signal, Hazard And Stop Light Circuit (Part 1 Of 3):

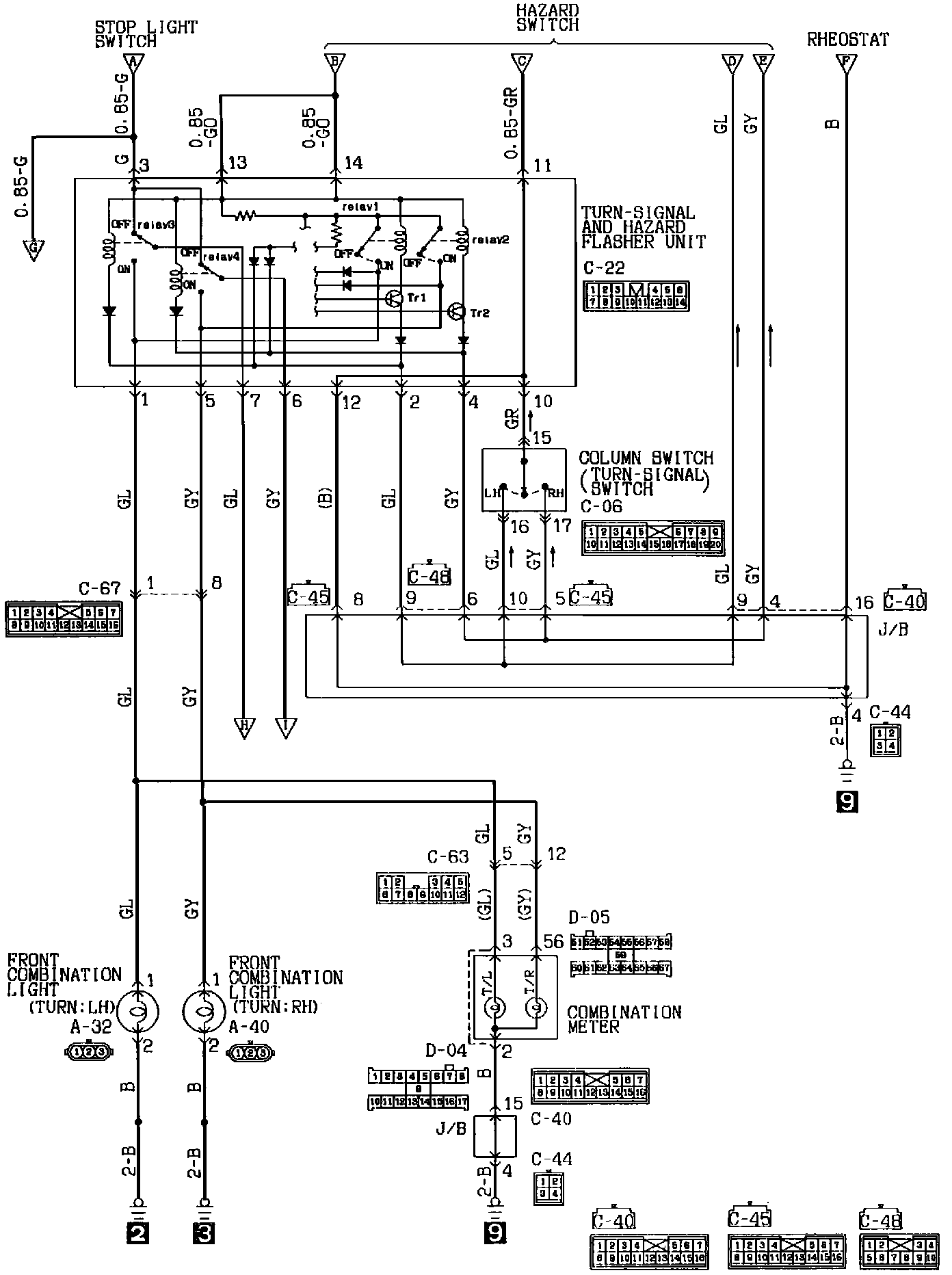

Turn-Signal, Hazard And Stop Light Circuit (Part 2 Of 3):

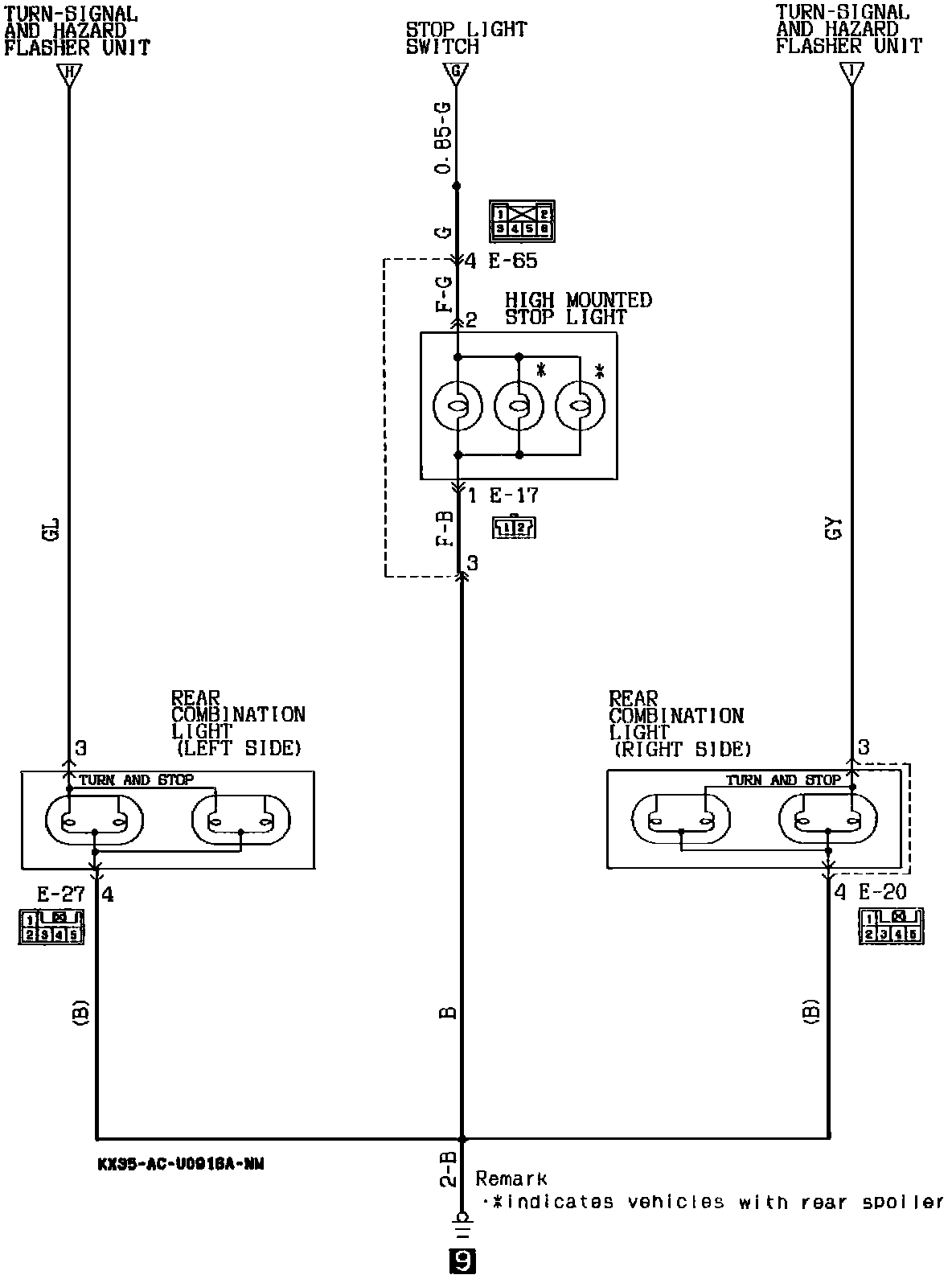

Turn-Signal, Hazard And Stop Light Circuit (Part 3 Of 3):
