Manual Air Conditioning System

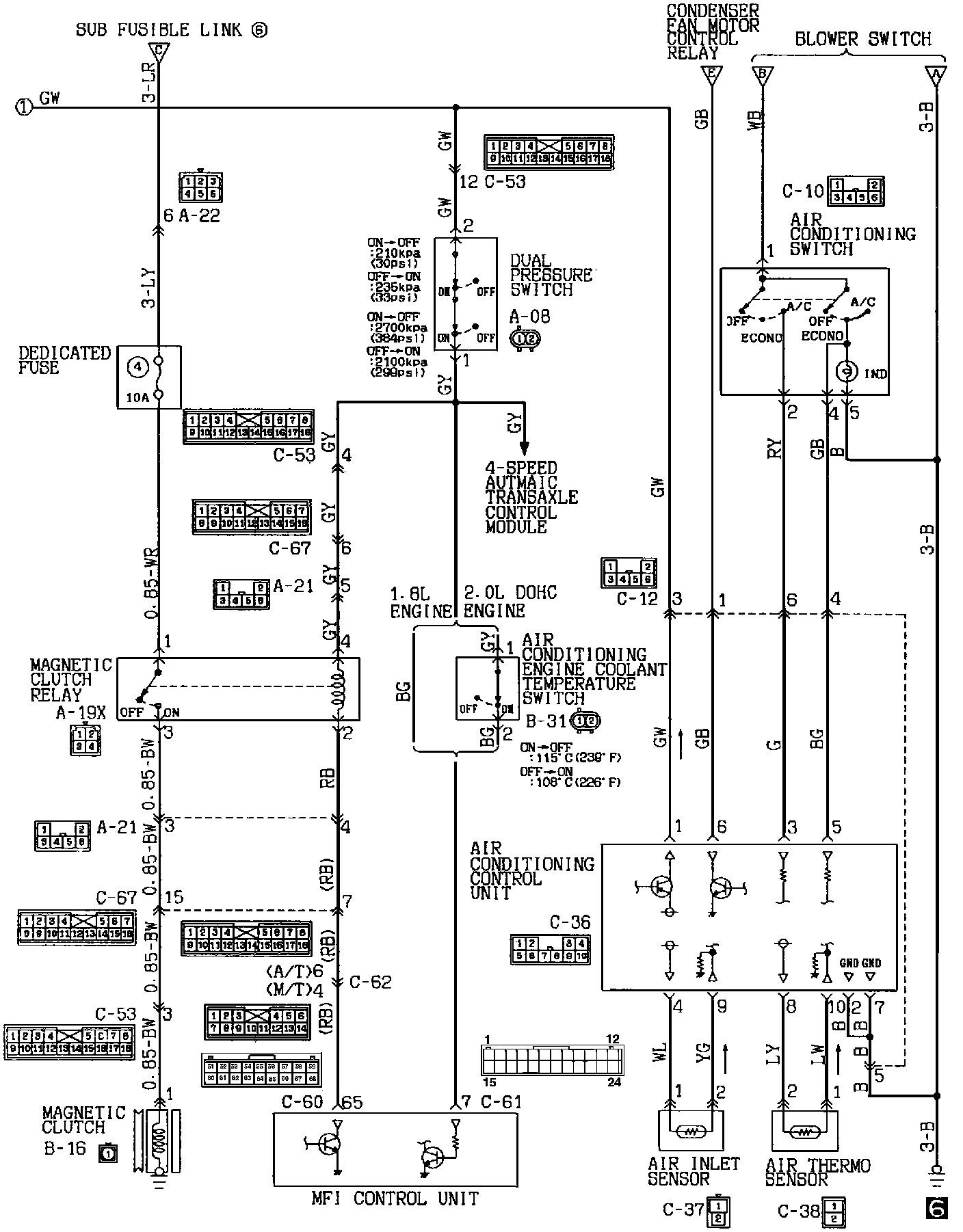

Air Conditioning Circuit (Part 1 Of 3):

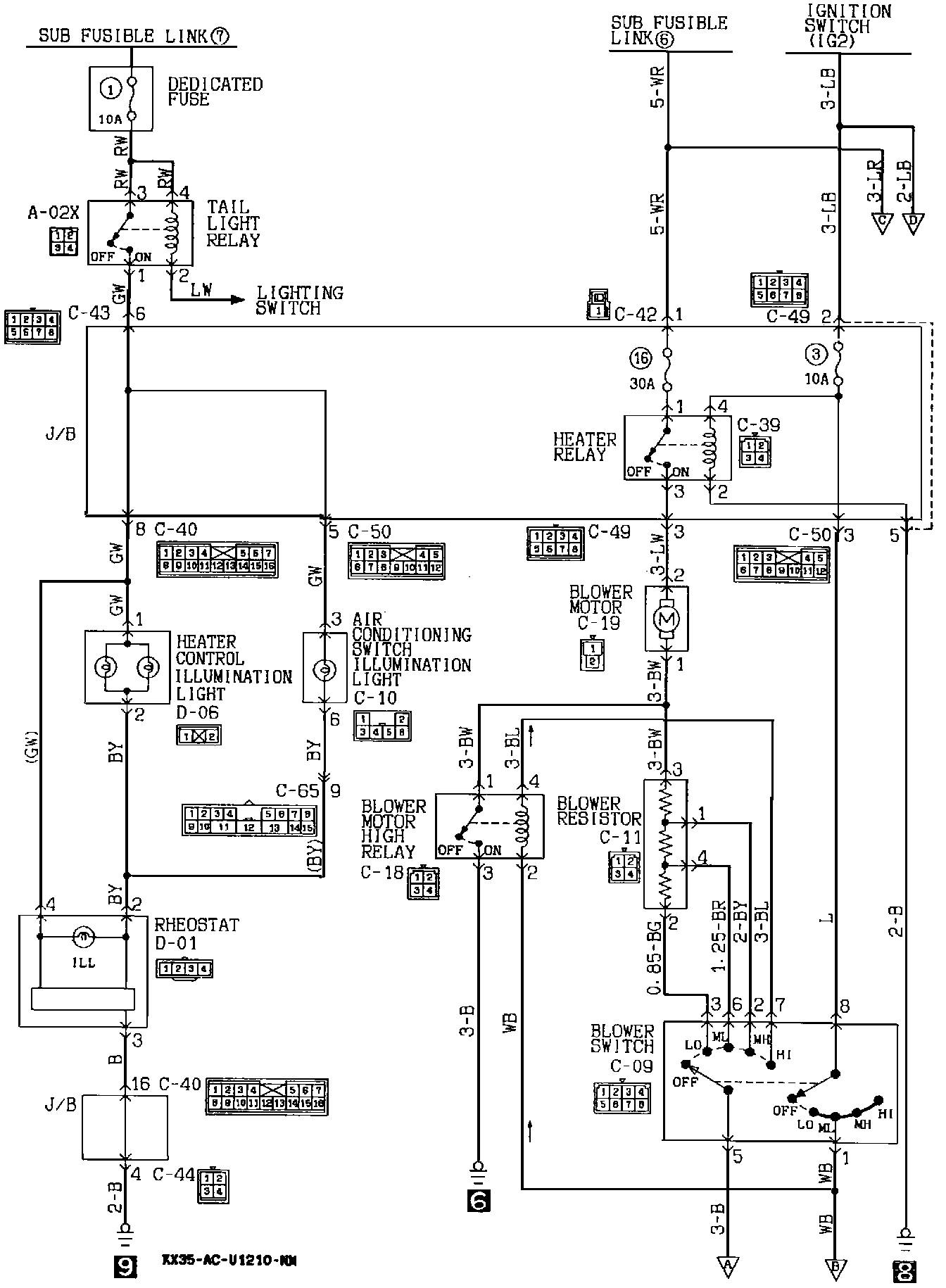

Air Conditioning Circuit (Part 2 Of 3):

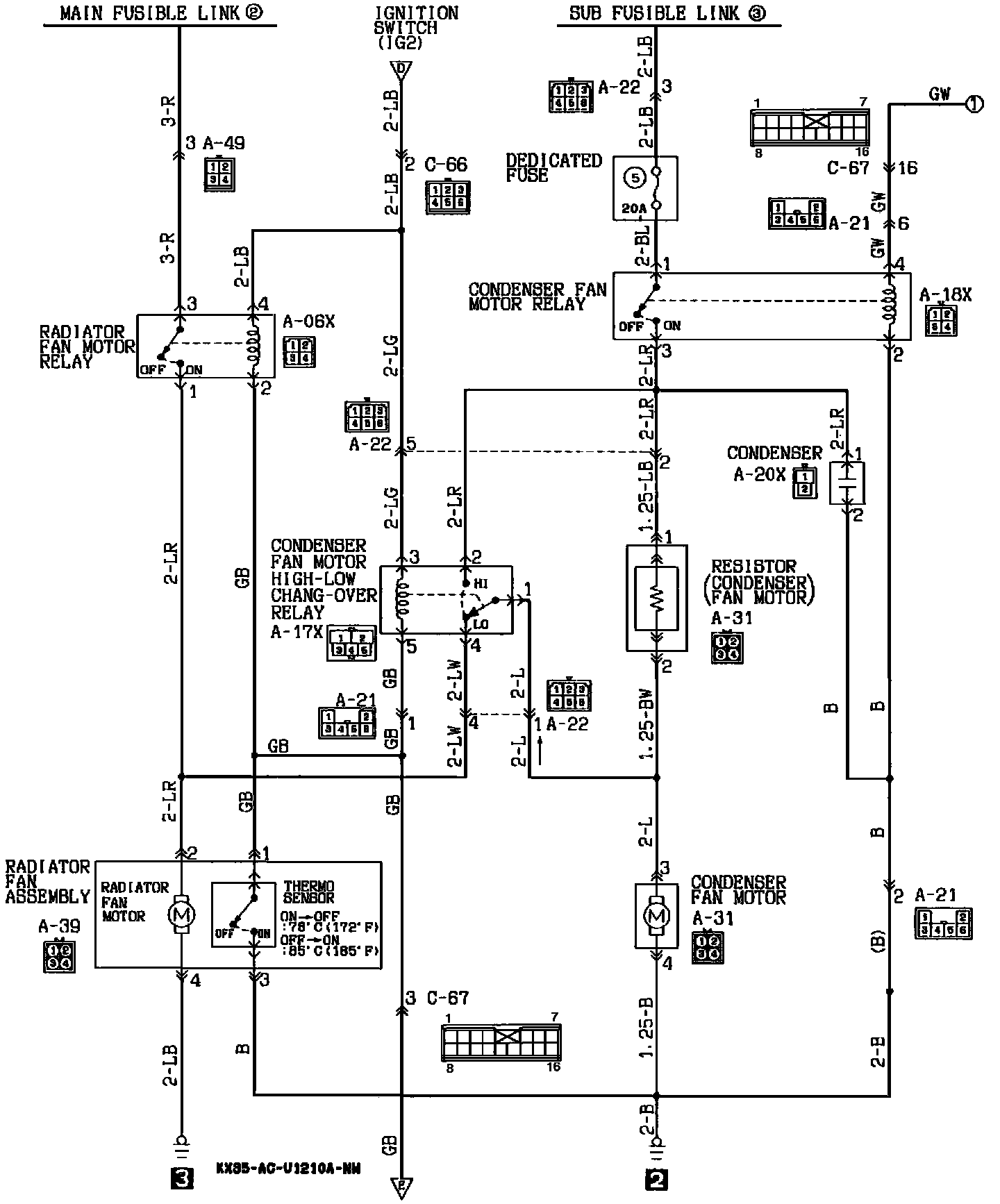

Air Conditioning Circuit (Part 3 Of 3):
