Brake Warning Indicator
Brake Warning Indicator

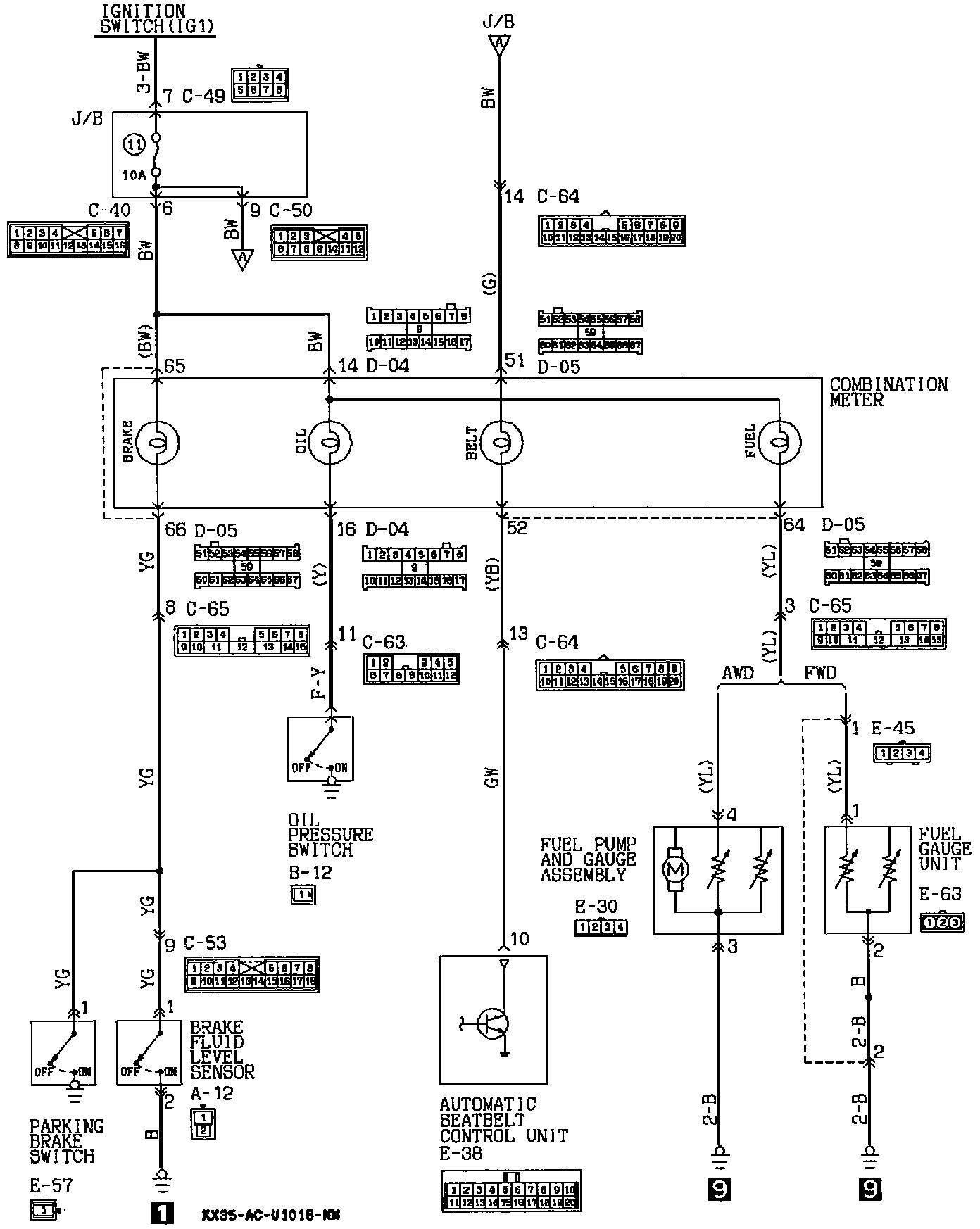

Brake, Oil Pressure, Seat Belt, Fuel Warning Light Circuit:
