Symptom Related Diagnostic Procedures

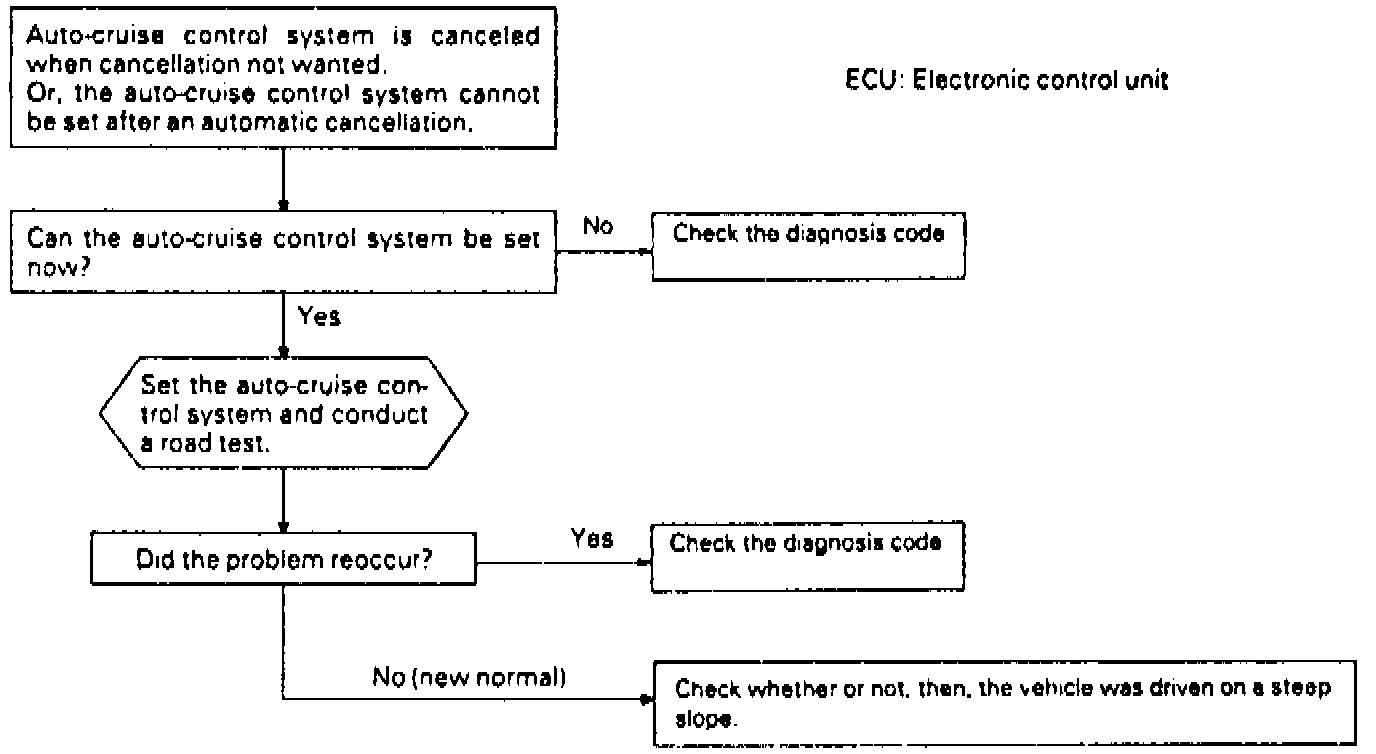

Fig. 4 Troubleshooting (Part 1 Of 4):

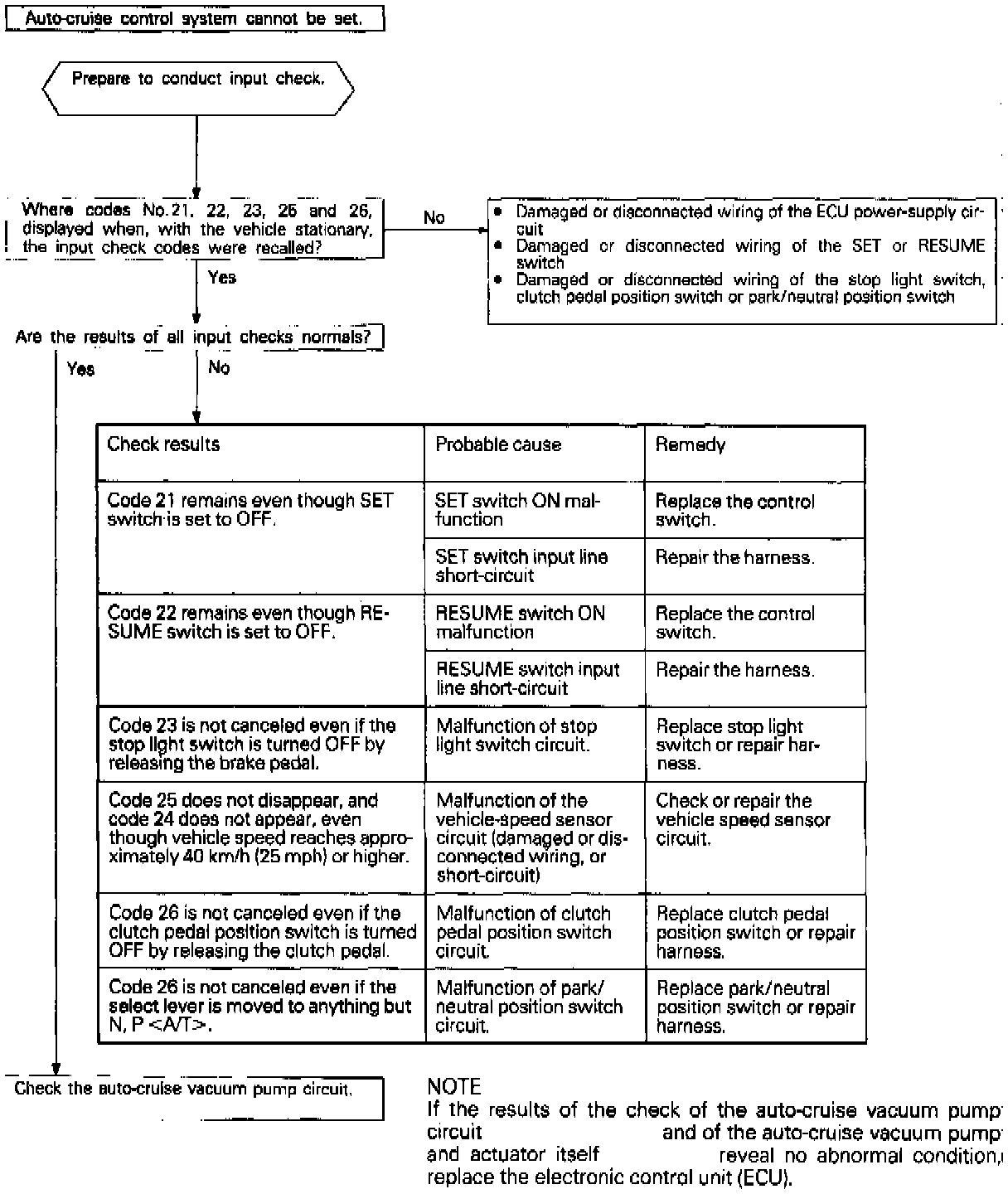

Fig. 4 Troubleshooting (Part 2 Of 4):

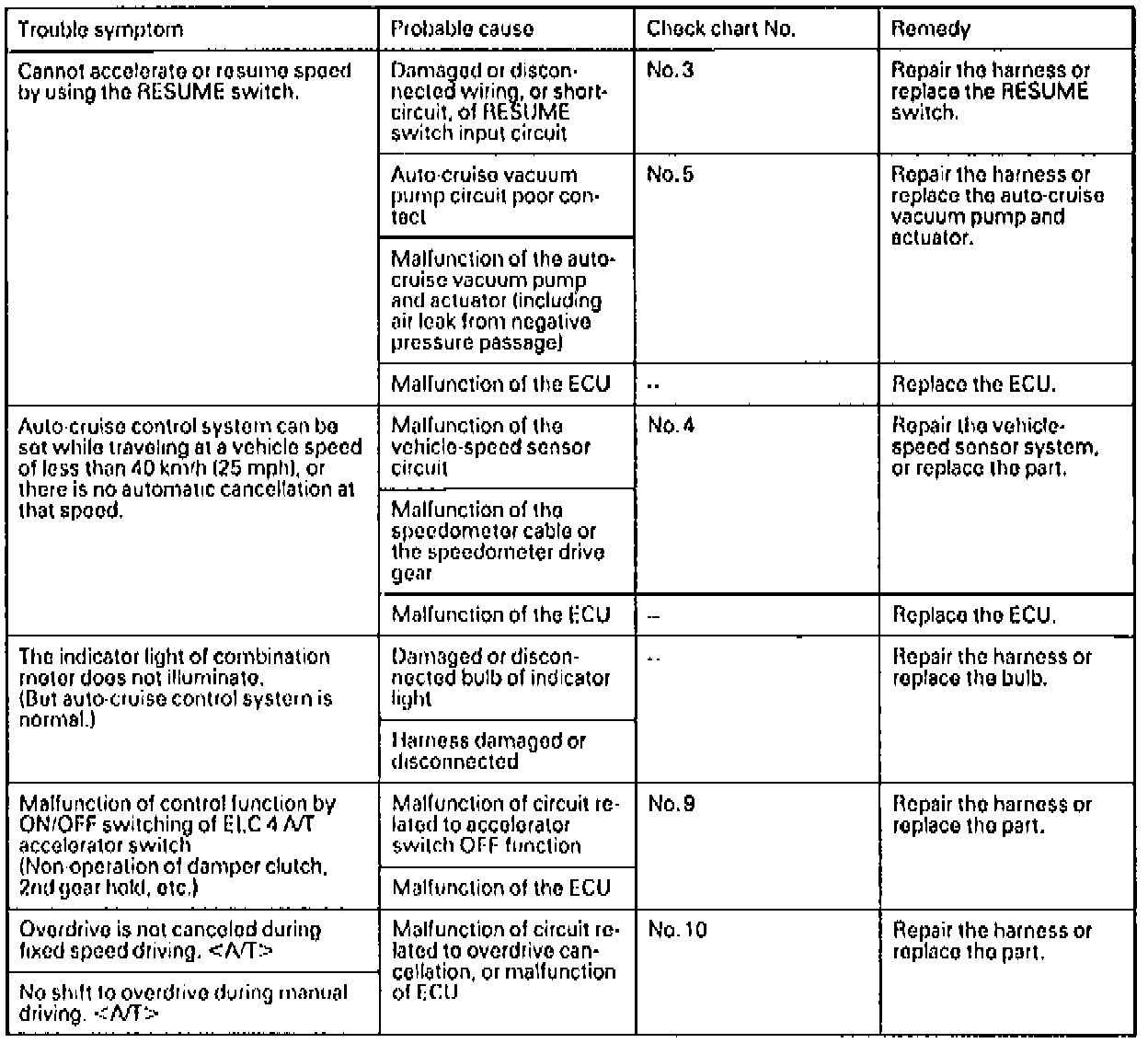

Fig. 4 Troubleshooting (Part 3 Of 4):

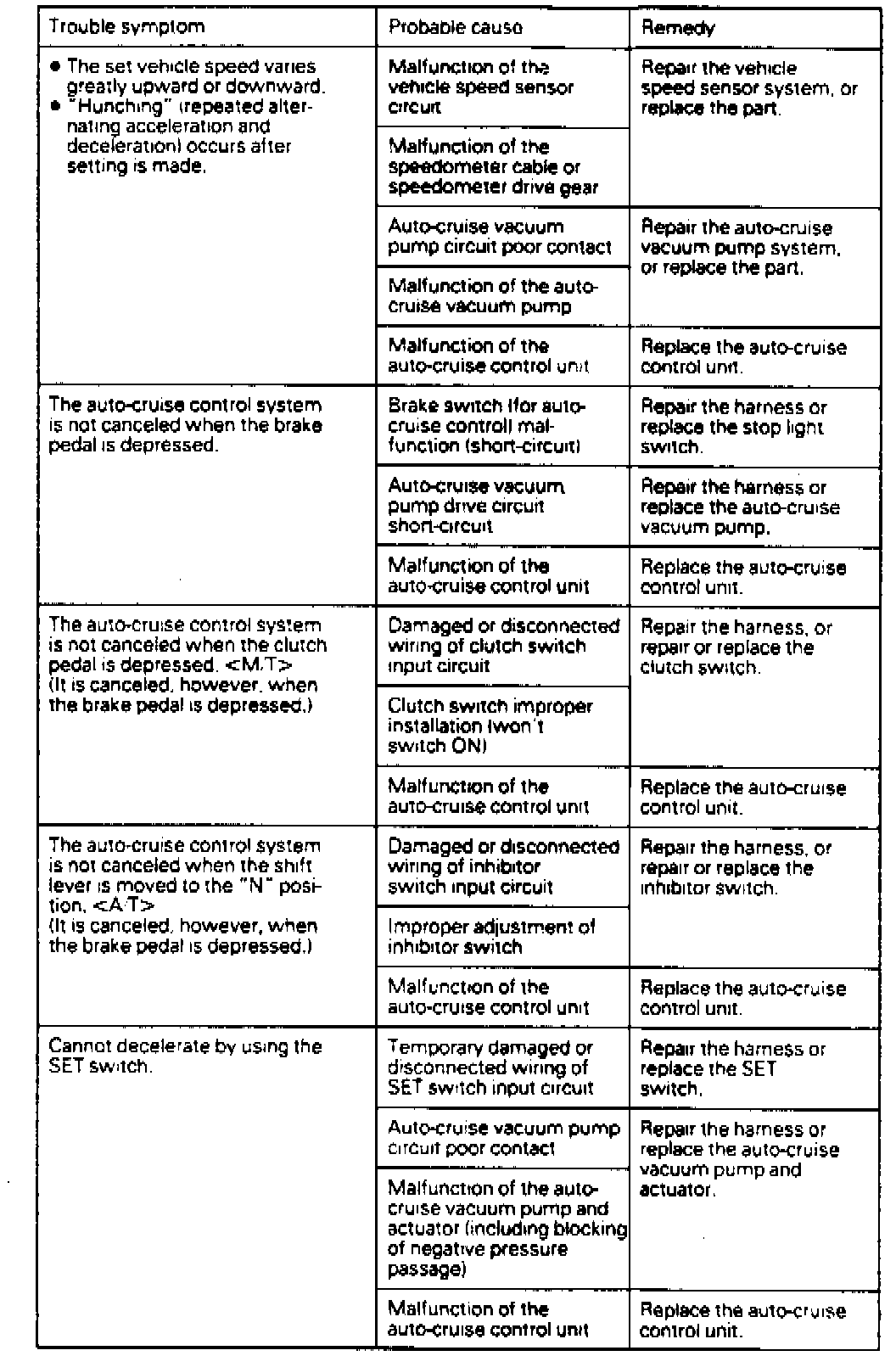

Fig. 4 Troubleshooting (Part 4 Of 4):

Refer to Fig. 4 when troubleshooting the speed control system.
