Cruise Control: Service and Repair

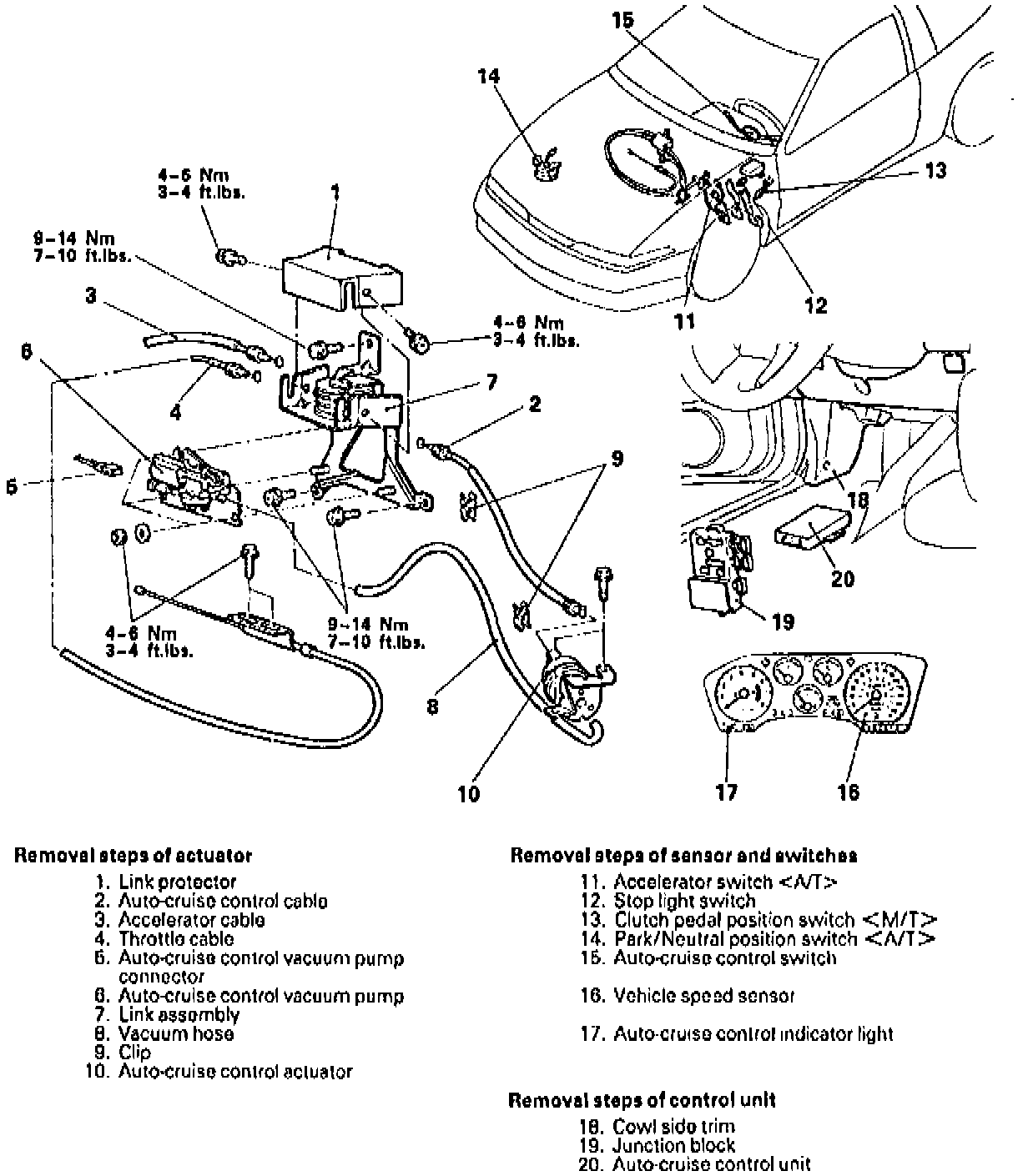

Fig. 39 Speed Control Component Replacement:
Refer to numbered sequences shown in
Fig. 39
for component replacement.
