Home >> Mitsubishi >> 1994 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> A - ABS Warning Light Does Not Light at All

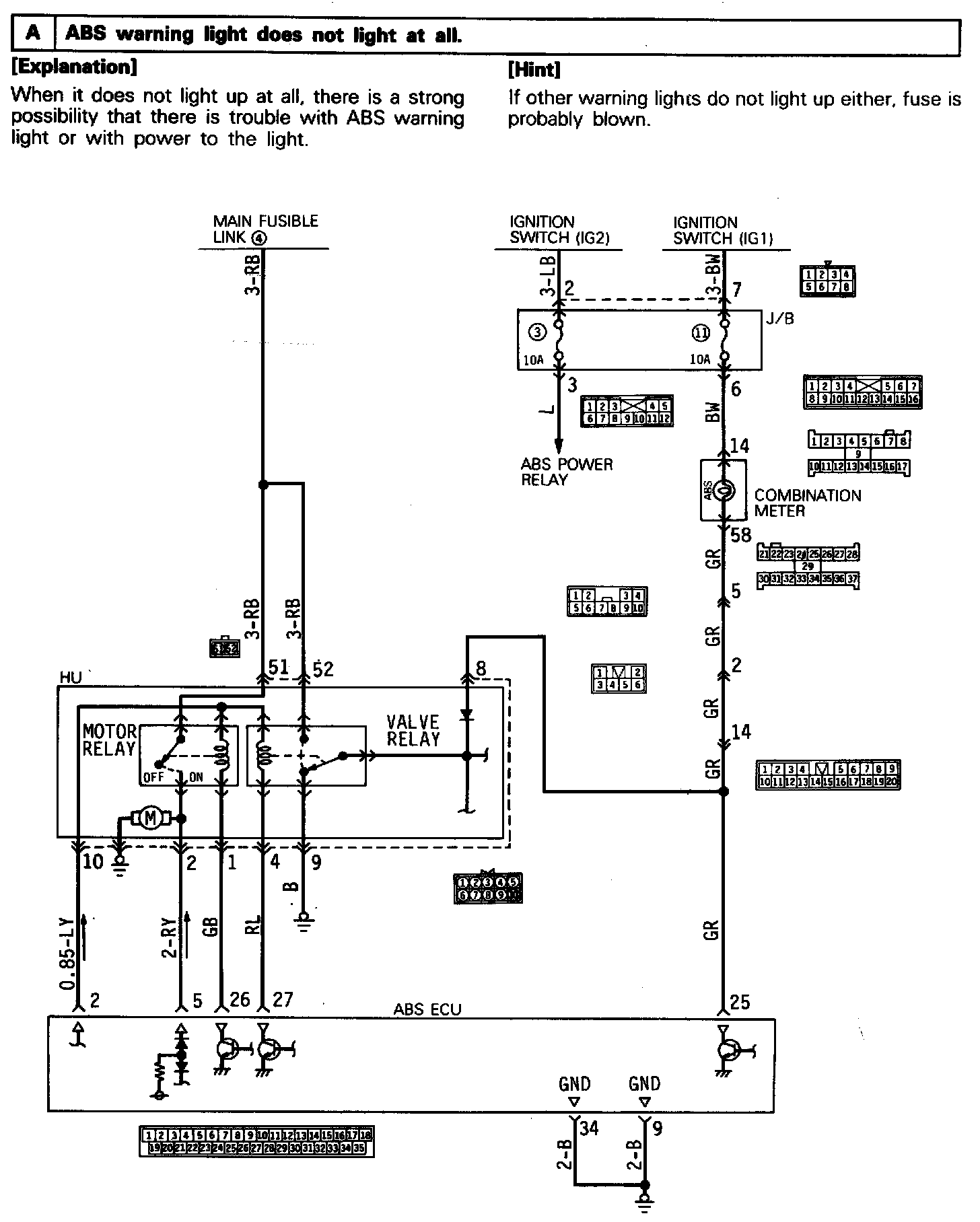

A - ABS Warning Light Does Not Light at All

Part 1:





Part 2:





Part 3:

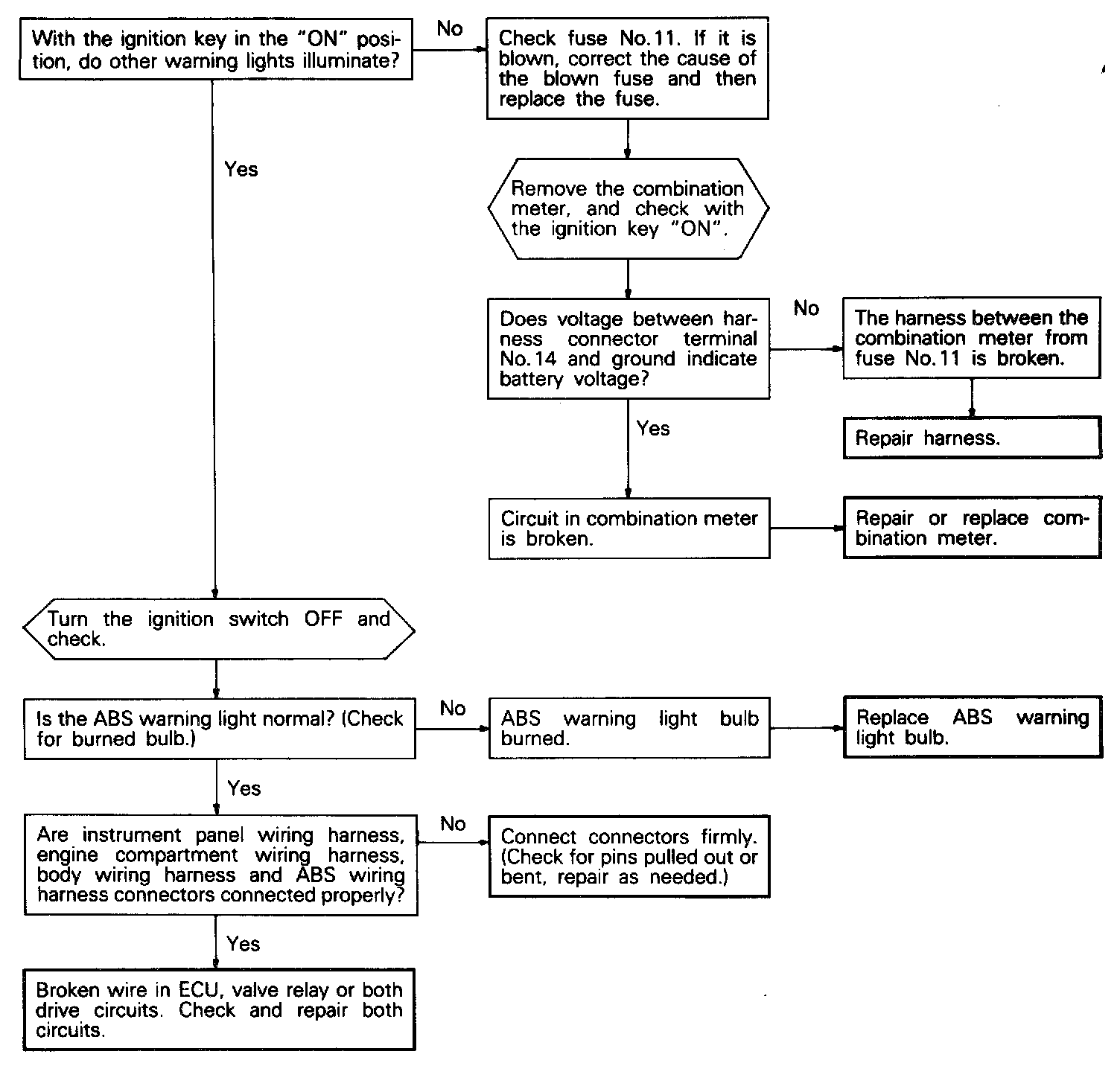

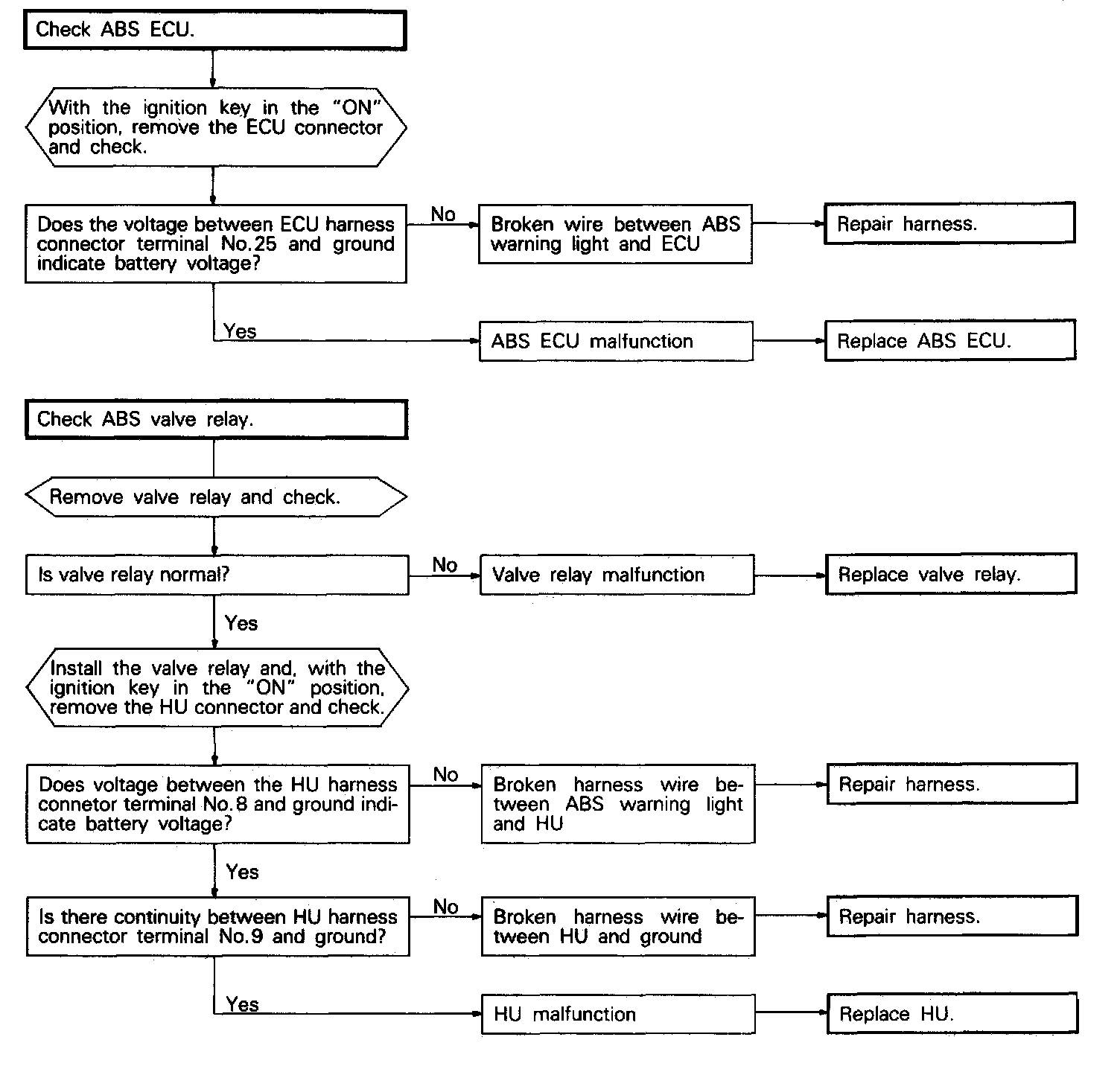

CHART A - ABS WARNING LIGHT DOES NOT LIGHT AT ALL
