Component Tests and General Diagnostics

ACTUATOR TEST FUNCTION

The actuator can be forcibly driven in the following way by using the Scan Tool.

NOTE:
- The actuator test cannot be carried out when the ABS ECU system is fail safe.
- When using forced drive using the Scan Tool, the vehicle must be stopped.
- During forced drive using the Scan Tool, forced drive operation is stopped when any wheel speed reaches 10 km/h (6 mph).

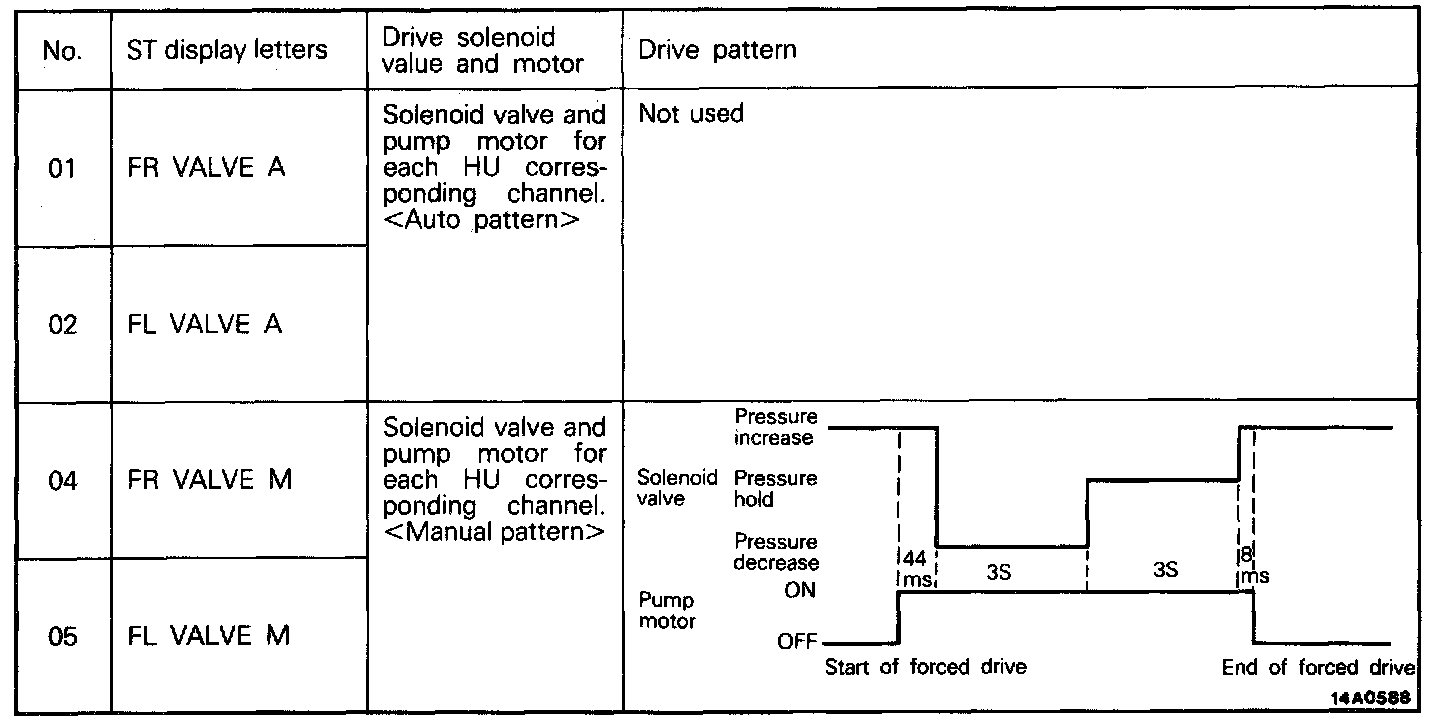

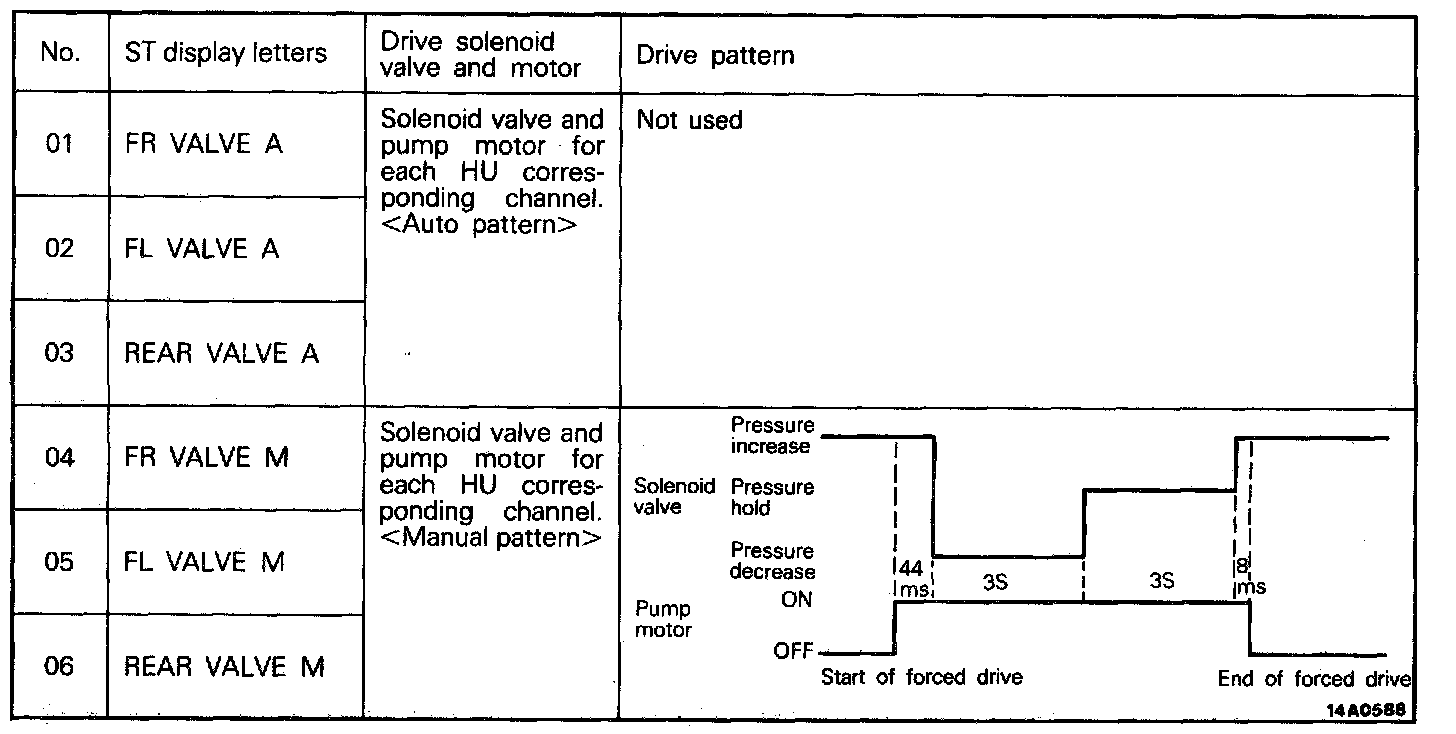

ACTUATOR TEST SPECIFICATIONS
