Meters and Gauges Disassembly And Assembly

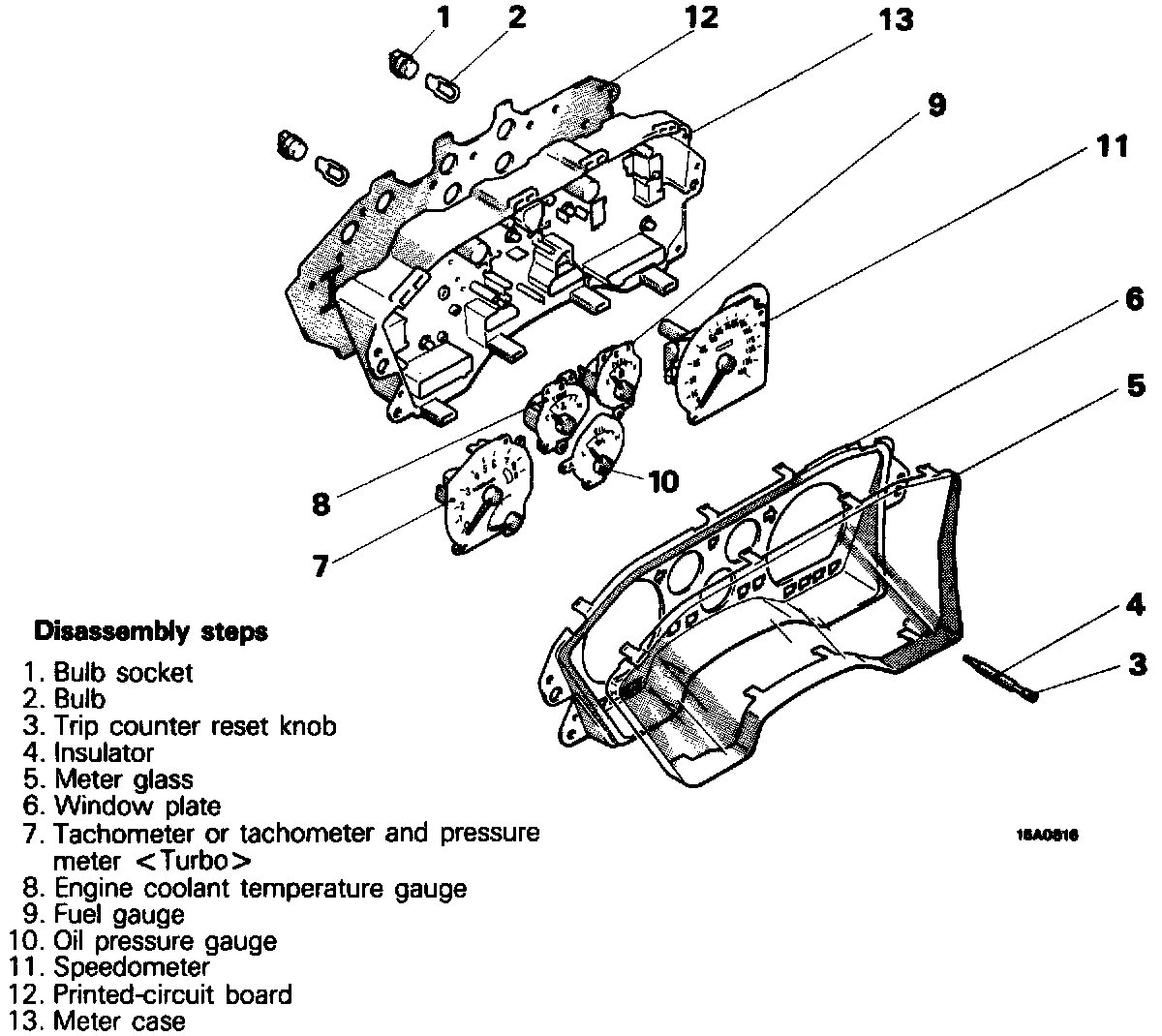

Meters And Gauges - Disassembly And Reassembly:

REMOVE
1. Bulb socket
2. Bulb
3. Trip counter reset knob
4. Insulator
5. Meter glass
6. Window plate
7. Tachometer or tachometer and pressure meter
8. Engine coolant temperature gauge
9. Fuel gauge
10. Oil pressure gauge
11. Speedometer
12. Printed-circuit board
13. Meter case

INSTALL
1. Meter case
2. Printed-circuit board
3. Speedometer
4. Oil pressure gauge
5. Fuel gauge
6. Engine coolant temperature gauge
7. Tachometer or tachometer and pressure meter
8. Window plate
9. Meter glass
10. Insulator
11. Trip counter reset knob
12. Bulb
13. Bulb socket
